Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
40/38LITZ.25#22 LITZ WIRE, 40/38STR, 4OZ |
4,332 |
|
Datasheet | - | Box | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.033" (0.84mm) | 125.0' (38.1m) | MW 80-C | 0.25 lbs (113.4 g) |
|
38HNSP#38 HVY MAG WIRE, 155C NAT 1LB |
2,502 |
|
Datasheet | - | Box | Active | 38 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.005" (0.13mm) | 19360.0' (5900.9m) | MW 79-C | 1.0 lbs (453.6 g) |
|
16/38LITZ.25#26 LITZ WIRE, 16/38STR, 4OZ |
2,461 |
|
Datasheet | - | Box | Active | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.021" (0.53mm) | 313.0' (95.4m) | MW 80-C | 0.25 lbs (113.4 g) |
|

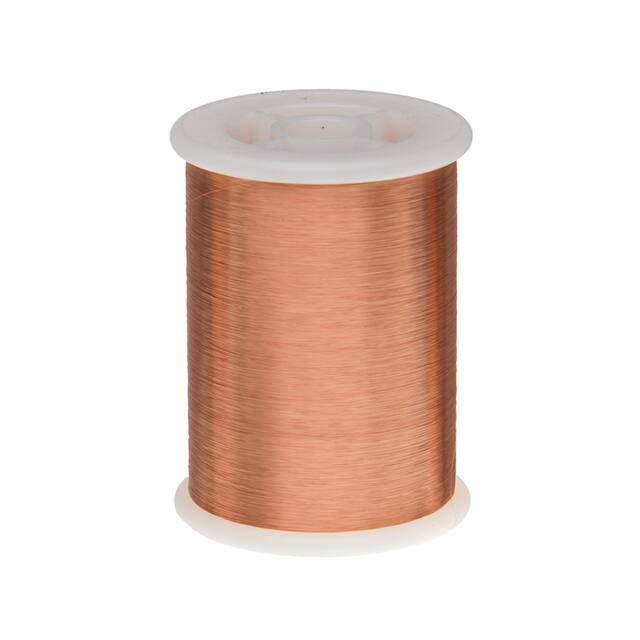

43SNSP43SNSP 43 AWG MAGNET WIRE, ENAME |
3,346 |
|
Datasheet | - | Bag | Active | 43 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 66092.0' (20145m) | MW 79-C | 1.0 lbs (453.6 g) |
|
43SNSPR43SNSPR 43 AWG MAGNET WIRE, ENAM |
1,454 |
|
Datasheet | - | Bag | Active | 43 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 66092.0' (20145m) | MW 79-C | 1.0 lbs (453.6 g) |
|

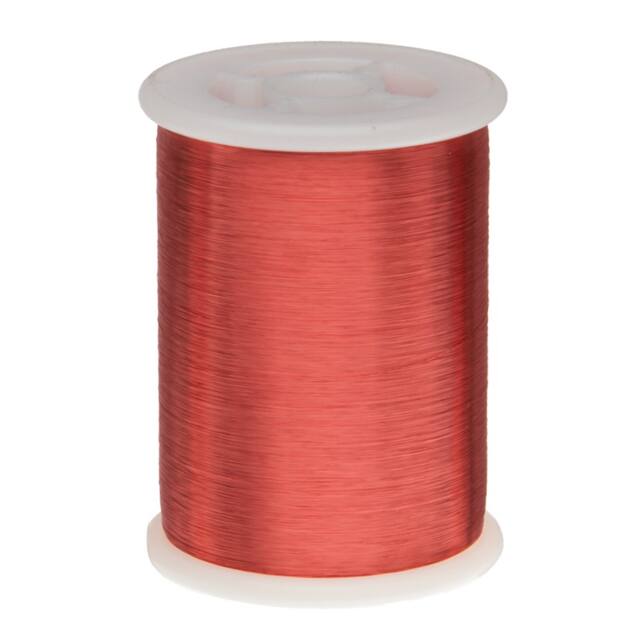

39HNSP#39 HVY MAG WIRE, 155C RED 1LB |
1,503 |
|
Datasheet | - | Box | Active | 39 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 25270.0' (7702.3m) | MW 79-C | 1.0 lbs (453.6 g) |
|
28H240P.5#28 HVY MAG WIRE, 240C NAT 8OZ |
2,530 |
|
Datasheet | - | Box | Active | 28 AWG | Copper, Annealed Bare | Polyimide | 0.015" (0.38mm) | 40.0' (12.2m) | MW 16-C | 0.5 lbs (226.8 g) |
|
40HNSP#40 HVY MAG WIRE, 155C RED 1LB |
2,846 |
|
Datasheet | - | Box | Active | 40 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 31940.0' (9735m) | MW 79-C | 1.0 lbs (453.6 g) |
|
64/38LITZ.25#20 LITZ WIRE, 64/38STR, 4OZ |
4,236 |
|
Datasheet | - | Box | Active | 20 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.042" (1.07mm) | 78.0' (23.8m) | MW 80-C | 0.25 lbs (113.4 g) |
|
42HNSP42HNSP 42 AWG HEAVY BUILD MAGNET |
3,640 |
|
Datasheet | - | Bag | Active | 42 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 49600.0' (15118m) | MW 79-C | 1.0 lbs (453.6 g) |
