Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
34HNS#34 HVY MAG WIRE, 155C RED 5LB |
2,608 |
|
Datasheet | - | Box | Active | 34 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.008" (0.20mm) | 39185.0' (11943m) | MW 79-C | 5.0 lbs (2.3kg) |
|
24H2402.5#24 HVY MAG WIRE, 240C NAT 2.5LB |
4,750 |
|
Datasheet | - | Box | Active | 24 AWG | Copper, Annealed Bare | Polyimide | 0.023" (0.58mm) | 198.0' (60.4m) | MW 16-C | 2.5 lbs (1.1 kg) |
|
|
39HNS#39 HVY MAG WIRE, 155C RED 5LB |
2,928 |
|
Datasheet | - | Box | Active | 39 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 126350.0' (38511.5m) | MW 79-C | 5.0 lbs (2.3kg) |
|
|
40HNS#40 HVY MAG WIRE, 155C RED 5LB |
3,388 |
|
Datasheet | - | Box | Active | 40 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 159700.0' (48677m) | MW 79-C | 5.0 lbs (2.3kg) |
|
41HNS#41 HVY MAG WIRE, 155C RED 5LB |
3,155 |
|
Datasheet | - | Box | Active | 41 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 196700.0' (59954m) | MW 79-C | 5.0 lbs (2.3kg) |
|
|
30H2402.5#30 HVY MAG WIRE, 240C NAT 2.5LB |
4,614 |
|
Datasheet | - | Box | Active | 30 AWG | Copper, Annealed Bare | Polyimide | 0.012" (0.30mm) | 198.0' (60.4m) | MW 16-C | 2.5 lbs (1.1 kg) |
|

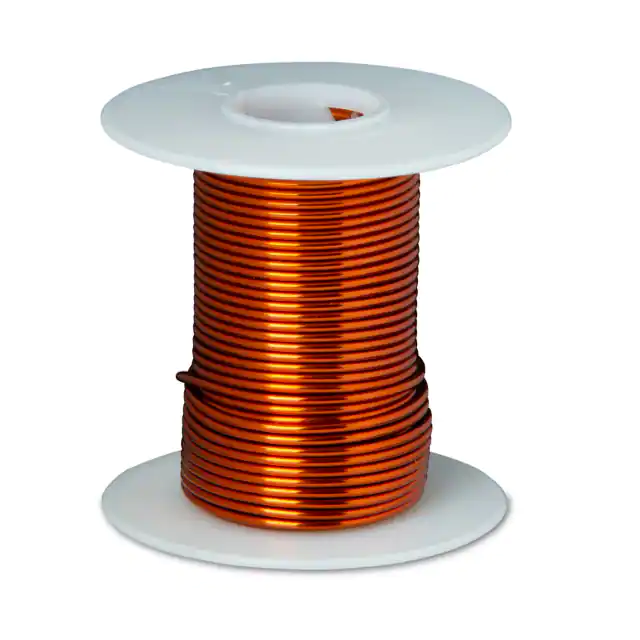

14H200P.12514H200P.125 MAGNET WIRE, ENAMELE |
1,748 |
|
Datasheet | - | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyester | - | 9.0' (2.7m) | MW 35-C | 0.13 lbs (56.7 g) |
|
16H200P.12516H200P.125 MAGNET WIRE, ENAMELE |
1,624 |
|
Datasheet | - | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyester | - | 16.0' (4.9m) | MW 35-C | 0.13 lbs (56.7 g) |
|
20H200P.12520H200P.125 MAGNET WIRE, ENAMELE |
2,580 |
|
Datasheet | - | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyester | - | 39.0' (12m) | MW 35-C | 0.13 lbs (56.7 g) |
|
18H200P.125MAGNET WIRE, ENAMELED COPPER WIR |
3,358 |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyester | - | 25.0' (7.6m) | MW 35-C | 0.13 lbs (56.7 g) |
