Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
22H200P.12522H200P.125 MAGNET WIRE, ENAMELE |
4,453 |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyester | - | 62.0' (19m) | MW 35-C | 0.13 lbs (56.7 g) |
|
24H200P.12524H200P.125 MAGNET WIRE, ENAMELE |
2,157 |
|
Datasheet | - | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyester | - | 98.0' (30m) | MW 35-C | 0.13 lbs (56.7 g) |
|
22H200P.2522H200P.25 22 AWG MAGNET WIRE, E |
4,101 |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyester | - | 125.0' (38m) | MW 35-C | 0.25 lbs (113.4 g) |
|
26H200P.125MAGNET WIRE, ENAMELED COPPER WIR |
3,131 |
|
Datasheet | - | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyester | - | 157.0' (48m) | MW 35-C | 0.13 lbs (56.7 g) |
|
24H200P.2524H200P.25 24 AWG MAGNET WIRE, E |
2,658 |
|
Datasheet | - | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyester | - | 197.0' (60m) | MW 35-C | 0.25 lbs (113.4 g) |
|
28H200P.12528H200P.125 MAGNET WIRE, ENAMELE |
1,242 |
|
Datasheet | - | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyester | - | 248.0' (76m) | MW 35-C | 0.13 lbs (56.7 g) |
|
30H200P.12530H200P.125 MAGNET WIRE, ENAMELE |
3,585 |
|
Datasheet | - | Bag | Active | 30 AWG | Copper, Annealed Bare | Polyester with Polyamideimide (PAI) Overcoat | - | 391.0' (119m) | MW 35-C | 0.13 lbs (56.7 g) |
|

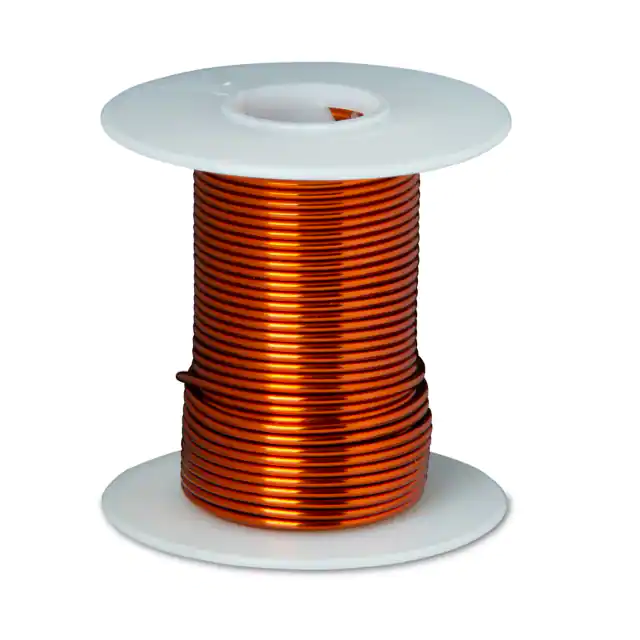

18H200P.2518H200P.25 MAGNET WIRE, ENAMELED |
1,543 |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyester | - | 50.0' (15m) | MW 35-C | 0.25 lbs (113.4 g) |
|

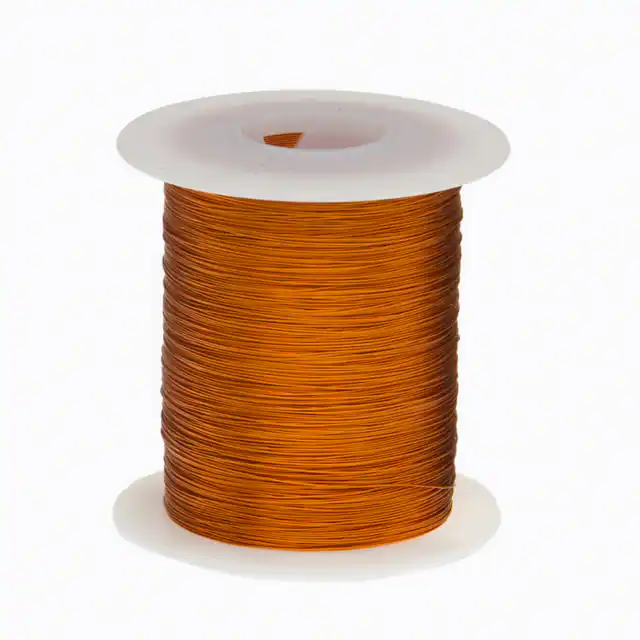

26H200P.2526H200P.25 MAGNET WIRE, ENAMELED |
3,558 |
|
Datasheet | - | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyester | - | 314.0' (96m) | MW 35-C | 0.25 lbs (113.4 g) |
|
25SNSP.12525SNSP.125 MAGNET WIRE, ENAMELED |
2,841 |
|
Datasheet | - | Bag | Active | 25 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 127.0' (39m) | MW 80-C | 0.13 lbs (56.7 g) |
