Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

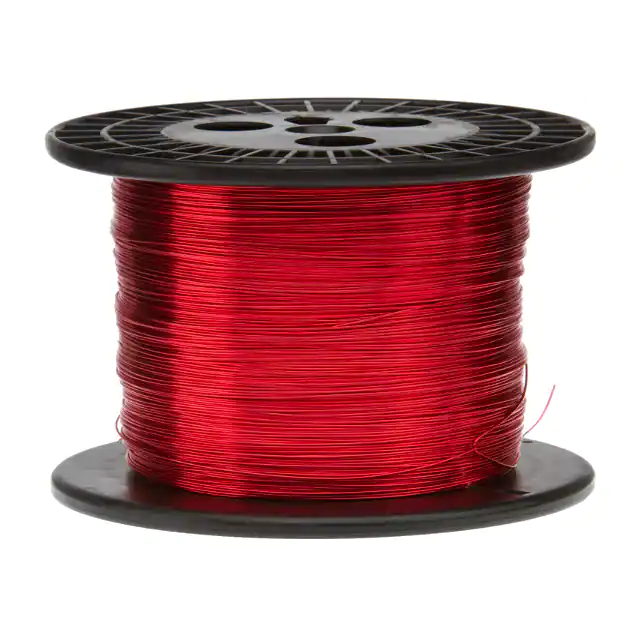

20HNS10MAGNET WIRE, HEAVY BUILD ENAMELE |
4,524 |
|
Datasheet | - | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 3140.0' (957m) | MW 80-C | 10.0 lbs (4.5 kg) |
|
18H20010MAGNET WIRE, 200C, 18 AWG, 10 LB |
3,542 |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyester | - | 199.0' (61m) | MW 35-C | 1.0 lbs (453.6 g) |
|

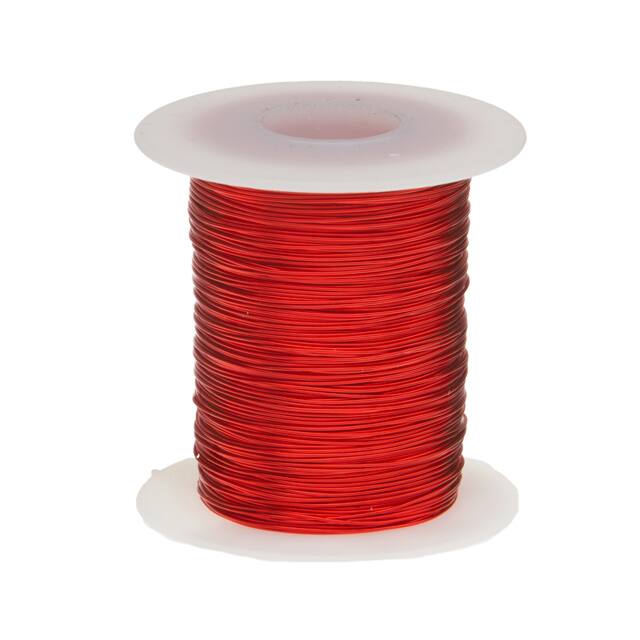

22HNS10MAGNET WIRE, HEAVY BUILD ENAMELE |
1,880 |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 5010.0' (1527m) | MW 80-C | 10.0 lbs (4.5 kg) |
|

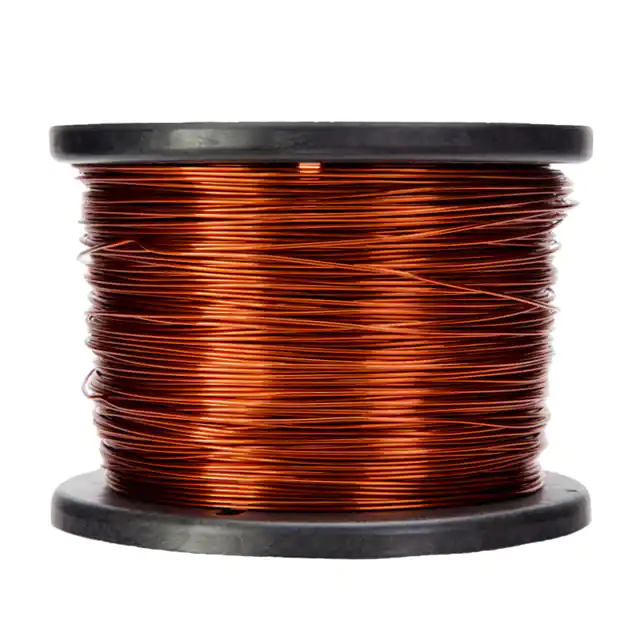

14H240#14 HVY MAG WIRE, 240C NAT 5LB |
3,140 |
|
Datasheet | - | Box | Active | 14 AWG | Copper, Annealed Bare | Polyimide | 0.068" (1.73mm) | 396.0' (120.7m) | MW 16-C | 5.0 lbs (2.3kg) |
|
|
16H240#16 HVY MAG WIRE, 240C NAT 5LB |
1,174 |
|
Datasheet | - | Box | Active | 16 AWG | Copper, Annealed Bare | Polyimide | 0.055" (1.40mm) | 396.0' (120.7m) | MW 16-C | 5.0 lbs (2.3kg) |
|
16H20010MAGNET WIRE, 200C, 16 AWG, 10 LB |
2,459 |
|
Datasheet | - | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyester | - | 1250.0' (381m) | MW 35-C | 10.0 lbs (4.5 kg) |
|

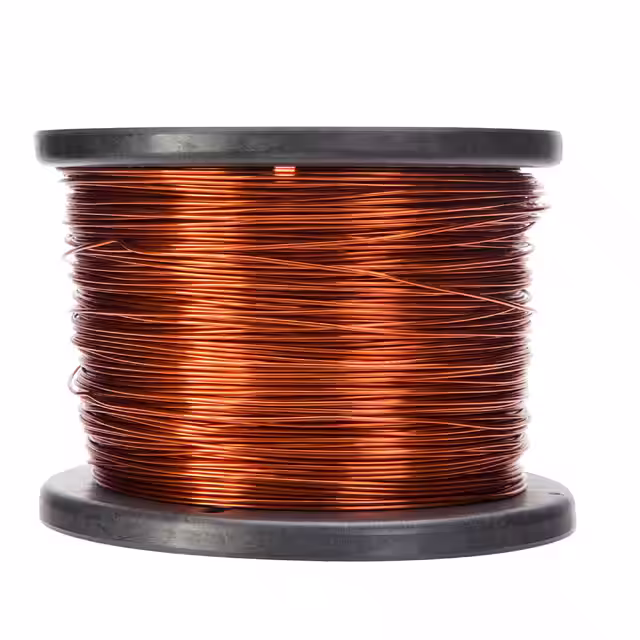

20H20010MAGNET WIRE, 200C, 20 AWG, 10 LB |
2,309 |
|
Datasheet | - | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyester | - | 3140.0' (957m) | MW 35-C | 10.0 lbs (4.5 kg) |
|
|
18H240#18 HVY MAG WIRE, 240C NAT 5LB |
4,908 |
|
Datasheet | - | Box | Active | 18 AWG | Copper, Annealed Bare | Polyimide | 0.044" (1.12mm) | 396.0' (120.7m) | MW 16-C | 5.0 lbs (2.3kg) |
|
32H2402.5#32 HVY MAG WIRE, 240C NAT 2.5LB |
4,762 |
|
Datasheet | - | Box | Active | 32 AWG | Copper, Annealed Bare | Polyimide | 0.010" (0.25mm) | 198.0' (60.4m) | MW 16-C | 2.5 lbs (1.1 kg) |
|

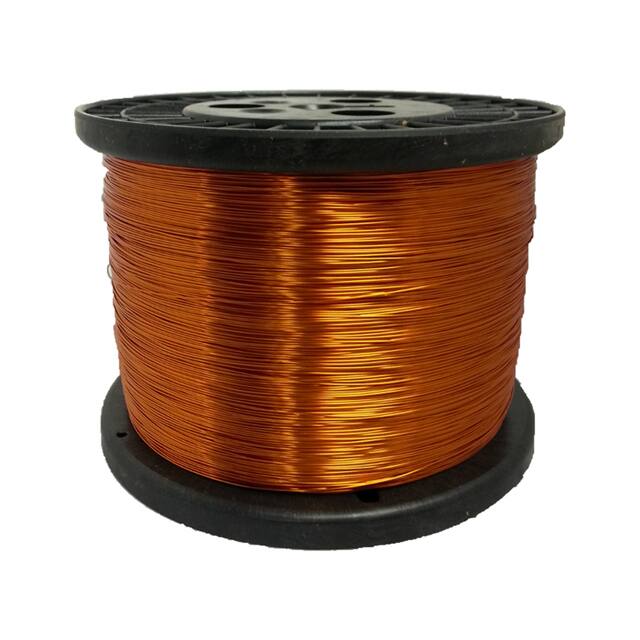

22H20010MAGNET WIRE, 200C, 22 AWG, 10 LB |
1,368 |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyester | - | 5022.0' (1531m) | MW 35-C | 10.0 lbs (4.5 kg) |
