Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
18SNS10MAGNET WIRE, ENAMELED COPPER WIR |
1,925 |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 2011.0' (613m) | MW 80-C | 10.0 lbs (4.5 kg) |
|

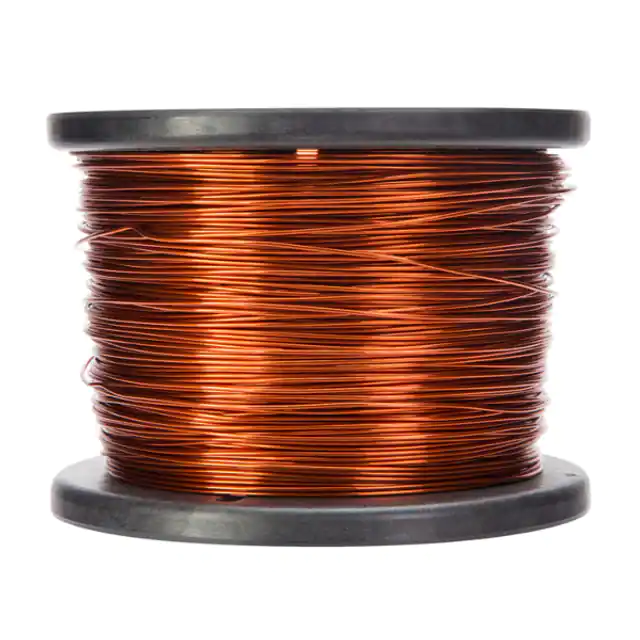

14H20010MAGNET WIRE, 200C, 14 AWG, 10 LB |
4,295 |
|
Datasheet | - | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyester | - | 792.0' (241m) | MW 35-C | 10.0 lbs (4.5 kg) |
|
21SNS10MAGNET WIRE, ENAMELED COPPER WIR |
3,476 |
|
Datasheet | - | Bag | Active | 21 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 4006.0' (1221m) | MW 80-C | 10.0 lbs (4.5 kg) |
|
22SNS10MAGNET WIRE, ENAMELED COPPER WIR |
4,693 |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 5070.0' (1545m) | MW 80-C | 10.0 lbs (4.5 kg) |
|
23SNS10MAGNET WIRE, ENAMELED COPPER WIR |
4,287 |
|
Datasheet | - | Bag | Active | 23 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 1584.0' (483m) | MW 80-C | 10.0 lbs (4.5 kg) |
|
17SNS10MAGNET WIRE, ENAMELED COPPER WIR |
1,024 |
|
Datasheet | - | Bag | Active | 17 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 1594.0' (485m) | MW 80-C | 10.0 lbs (4.5 kg) |
|
260/38LITZ1#14 LITZ WIRE, 5/52/38STR, 1.0LB |
2,545 |
|
Datasheet | - | Box | Active | 14 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.090" (2.29mm) | 80.0' (24.4m) | MW 80-C | 1.0 lbs (453.6 g) |
|
28H2402.5#28 HVY MAG WIRE, 240C NAT 2.5LB |
1,690 |
|
Datasheet | - | Box | Active | 28 AWG | Copper, Annealed Bare | Polyimide | 0.015" (0.38mm) | 198.0' (60.4m) | MW 16-C | 2.5 lbs (1.1 kg) |
|

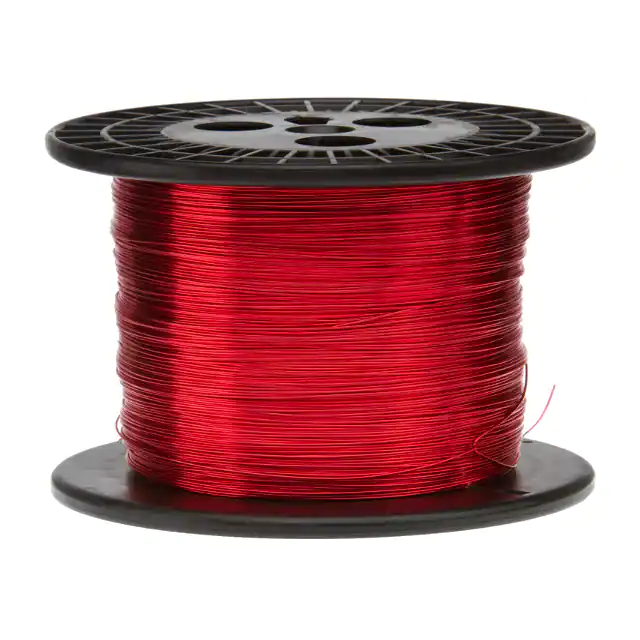

14HNS10MAGNET WIRE, HEAVY BUILD ENAMELE |
3,173 |
|
Datasheet | - | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 790.0' (241m) | MW 80-C | 10.0 lbs (4.5 kg) |
|

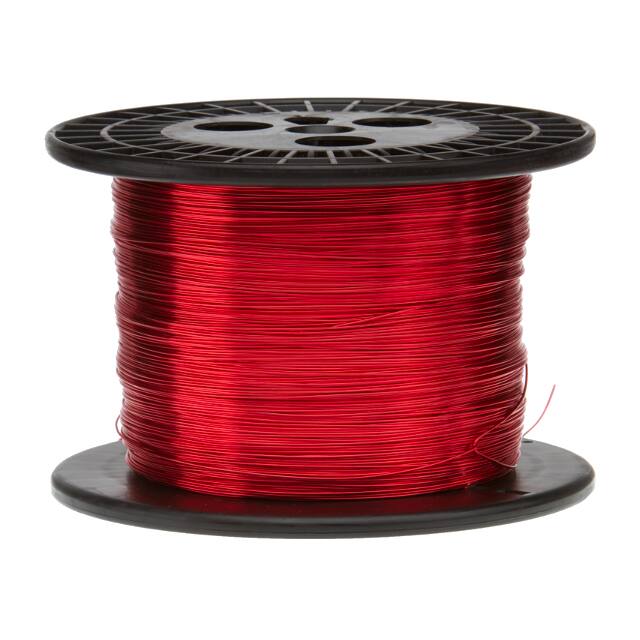

16HNS10MAGNET WIRE, HEAVY BUILD ENAMELE |
1,749 |
|
Datasheet | - | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 1250.0' (381m) | MW 80-C | 10.0 lbs (4.5 kg) |
