Magnetic Wire
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
26H2402.5#26 HVY MAG WIRE, 240C NAT 2.5LB |
3,024 |
|
Datasheet | - | Box | Active | 26 AWG | Copper, Annealed Bare | Polyimide | 0.018" (0.46mm) | 198.0' (60.4m) | MW 16-C | 2.5 lbs (1.1 kg) |
|

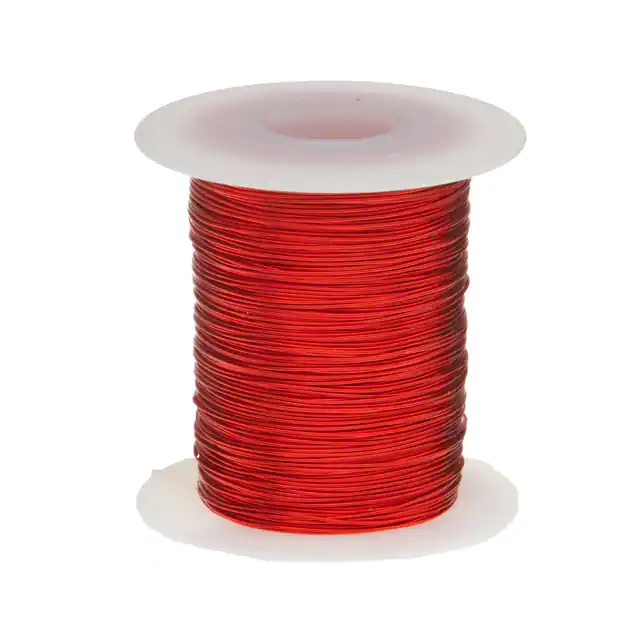

26HNS10MAGNET WIRE, HEAVY BUILD ENAMELE |
1,191 |
|
Datasheet | - | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 12508.0' (3812m) | MW 80-C | 10.0 lbs (4.5 kg) |
|
2232MWKIT12232MWKIT1 MAGNET WIRE KIT, ENAM |
2,019 |
|
Datasheet | - | Bag | Active | 22 AWG, 24 AWG, 26 AWG, 28 AWG, 30 AWG, 32 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | Assorted | MW 80-C | - |
|
44SNS44SNS 44 AWG MAGNET WIRE, ENAMEL |
3,484 |
|
Datasheet | - | Bag | Active | 44 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 398990.0' (121612m) | MW 79-C | 5.0 lbs (2.3kg) |
|
24SNS10MAGNET WIRE, ENAMELED COPPER WIR |
2,785 |
|
Datasheet | - | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 8027.0' (2447m) | MW 80-C | 10.0 lbs (4.5 kg) |
|
26SNS10MAGNET WIRE, ENAMELED COPPER WIR |
3,791 |
|
Datasheet | - | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 12508.0' (3812m) | MW 80-C | 10.0 lbs (4.5 kg) |
|
25SNS10MAGNET WIRE, ENAMELED COPPER WIR |
4,933 |
|
Datasheet | - | Bag | Active | 25 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 10120.0' (3085m) | MW 80-C | 10.0 lbs (4.5 kg) |
|
28HNS10MAGNET WIRE, HEAVY BUILD ENAMELE |
3,944 |
|
Datasheet | - | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 19890.0' (6062m) | MW 80-C | 10.0 lbs (4.5 kg) |
|
27SNS10MAGNET WIRE, ENAMELED COPPER WIR |
1,623 |
|
Datasheet | - | Bag | Active | 27 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 16010.0' (4880m) | MW 80-C | 10.0 lbs (4.5 kg) |
|
28SNS10MAGNET WIRE, ENAMELED COPPER WIR |
1,276 |
|
Datasheet | - | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 20270.0' (6178m) | MW 80-C | 10.0 lbs (4.5 kg) |
