Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83106408SWITCH SNAP ACTION SPDT 5A 250V |
1,416 |
|
Datasheet | 83106 | Bulk | Active | SPDT (DB/DM) | On-On | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 46gf | - | - | - | - | - | -20°C ~ 85°C |
|
|
X0219207SWITCH SNAP ACTION SPDT 10A 250V |
3,329 |
|
Datasheet | 83106 | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 250 V | - | Ball Bearing Plunger | Chassis Mount | Solder Lug | - | - | 408gf | 102gf | - | 0.060" (1.5mm) | 0.020" (0.5mm) | - | -20°C ~ 85°C |
|
|
83853303SWITCH SNAP ACTION DPST 6A 250V |
3,577 |
|
Datasheet | 83853 | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 250 V | 24 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 28gfm | - | - | - | 20° | - | -25°C ~ 80°C |
|
|
83261152SWITCH SNAP ACTION 260E |
2,936 |
|
- |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
83852501SWITCH SNAP ACTION DPST 6A 250V |
1,147 |
|
Datasheet | 83852 | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 250 V | 24 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 1020gf | - | - | - | 0.060" (1.5mm) | - | -25°C ~ 80°C |
|

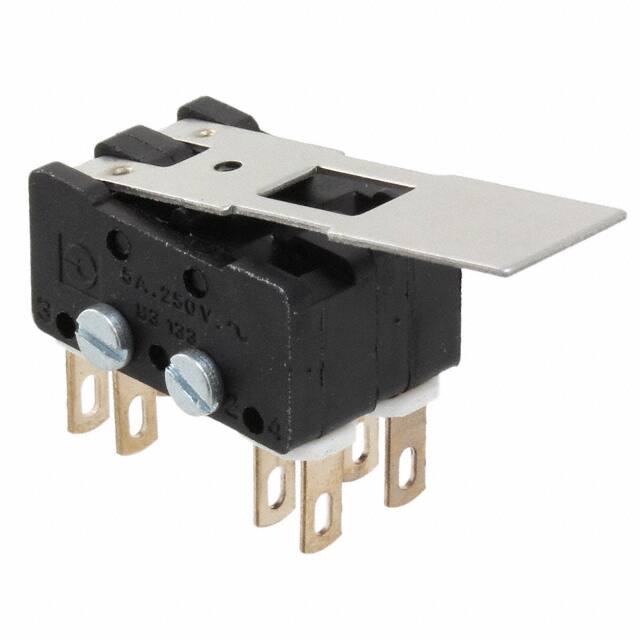

83133301SWITCH SNAP ACTION DPDT 5A 125V |
3,131 |
|
Datasheet | 83133 | Bulk | Active | DPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 82gf | 16gf | 0.345" (8.8mm) | 0.170" (4.3mm) | 0.080" (2.0mm) | - | -20°C ~ 125°C |
|
|
83853301SWITCH SNAP ACTION DPST 6A 250V |
3,224 |
|
Datasheet | 83853 | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 250 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 28gfm | - | - | - | 20° | - | -25°C ~ 80°C |
|
|
83853101SWITCH SNAP ACTION DPST 6A 250V |
3,192 |
|
Datasheet | 83853 | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 250 V | 24 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 918gf | - | - | - | 0.060" (1.5mm) | - | -25°C ~ 80°C |
|
83169001SWITCH SNAP ACTION SPDT 10A 125V |
3,102 |
|
Datasheet | 83169 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 408gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.040" (1.0mm) | -20°C ~ 85°C |
|
83169002SWITCH SNAP ACTION SPDT 10A 125V |
2,903 |
|
Datasheet | 83169 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 408gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.040" (1.0mm) | -20°C ~ 85°C |
