Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83242020SWITCH SNAP ACTION DPST 6A 250V |
1,407 |
|
Datasheet | PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 600mA (DC) | 250 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | - | 663gf | - | 0.260" (6.6mm) | - | 0.040" (1.0mm) | - | -50°C ~ 85°C |
|
|
83139003SWITCH SNAP ACTION SPDT 5A 125V |
4,791 |
|
Datasheet | 83139 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 306gf | 61gf | 0.303" (7.7mm) | - | 0.014" (0.35mm) | 0.011" (0.3mm) | 0°C ~ 85°C |
|
|
83139503SWITCH SNAP ACTION SPDT 5A 125V |
4,870 |
|
Datasheet | 83139 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 306gf | 61gf | 0.303" (7.7mm) | - | 0.014" (0.35mm) | 0.011" (0.3mm) | 0°C ~ 85°C |
|

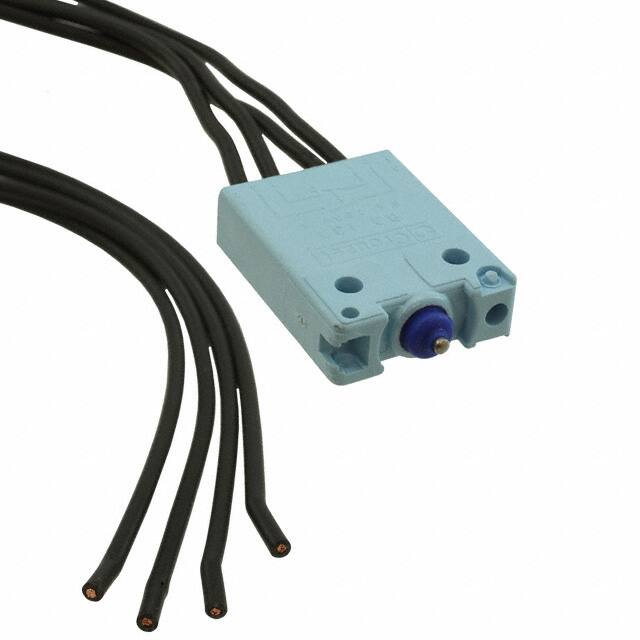

83139518SWITCH SNAP ACTION SPDT 5A 125V |
4,980 |
|
Datasheet | 83139 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 306gf | 61gf | 0.343" (8.7mm) | - | 0.014" (0.35mm) | 0.011" (0.3mm) | 0°C ~ 85°C |
|
|
83111064SWITCH SNAP ACTION SPDT 10A 250V |
1,288 |
|
Datasheet | 83111 | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 408gf | 102gf | - | 0.028" (0.7mm) | 0.020" (0.5mm) | 0.026" (0.7mm) | -40°C ~ 85°C |
|
|
83131701SWITCH SNAP ACT QC ROLLER PLNG |
2,502 |
|
- |
83131 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
83139025SWITCH SNAP ACTION SPDT 5A 125V |
1,832 |
|
Datasheet | 83139 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 265gf | 36gf | - | - | 0.028" (0.7mm) | - | 0°C ~ 85°C |
|
|
83139026SWITCH SNAP ACTION SPDT 5A 125V |
1,060 |
|
Datasheet | 83139 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 173gf | 20gf | - | - | 0.049" (1.25mm) | - | 0°C ~ 85°C |
|
X0229587SWITCH SNAP ACTION SPDT 10A 125V |
1,293 |
|
Datasheet | 83169 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 408gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.040" (1.0mm) | -20°C ~ 85°C |
|
|
X0229406SWITCH SNAP ACTION SPDT 10A 125V |
4,528 |
|
Datasheet | 83169 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 408gf | 102gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.040" (1.0mm) | -20°C ~ 85°C |
