Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83132030SWITCH SNAP ACTION SPDT 5A 250V |
2,948 |
|
Datasheet | 83132 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 163gf | 41gf | 0.303" (7.7mm) | - | 0.018" (0.45mm) | 0.011" (0.3mm) | -20°C ~ 125°C |
|

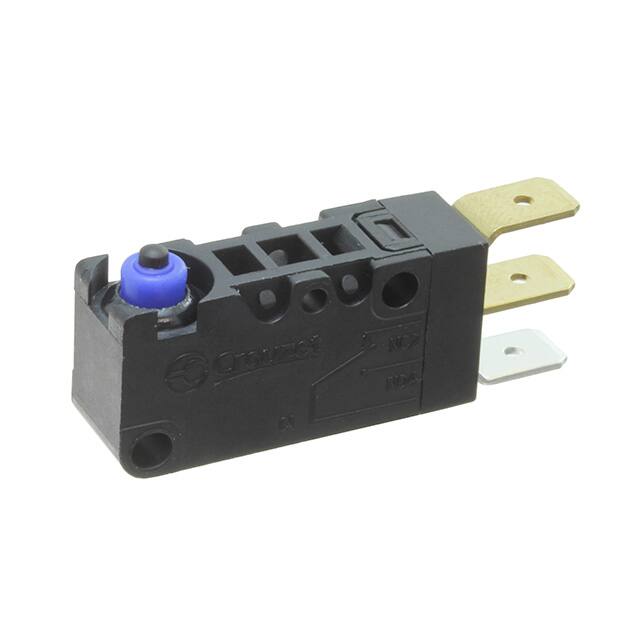

83299001SWITCH SNAP ACTION SPDT 3A 250V |
4,924 |
|
Datasheet | V3DS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | 102gf | 10gf | 0.579" (14.7mm) | - | 0.020" (0.5mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
|
83180004SWITCH SNAP ACTION SPDT 10A 250V |
2,777 |
|
Datasheet | 83180 | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 347gf | 102gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|
83180005SWITCH SNAP ACTION SPDT 10A 250V |
2,112 |
|
Datasheet | 83180 | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 347gf | 102gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|
|
83160065SWITCH SNAP ACTION SPDT 16A 250V |
2,174 |
|
Datasheet | 83160 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 204gf | 41gf | - | 0.100" (2.5mm) | 0.025" (0.6mm) | 0.051" (1.3mm) | -20°C ~ 125°C |
|
|
83186014SWITCH SNAP ACTION SPDT 6A 250V |
1,537 |
|
Datasheet | 83180 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | 255gf | 82gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.025" (0.6mm) | -40°C ~ 125°C |
|
83134001SWITCH SNAP ACTION SPDT 5A 125V |
1,109 |
|
Datasheet | 83134 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 163gf | 41gf | 0.291" (7.4mm) | - | 0.018" (0.45mm) | 0.011" (0.3mm) | -20°C ~ 125°C |
|
|
83133038SWITCH SNAP ACTION SPDT 5A 125V |
1,960 |
|
Datasheet | 83133 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | - | - | - | - | - | - | -20°C ~ 125°C |
|
83194015SWITCH SNAP ACTION SPDT 5A 250V |
4,852 |
|
Datasheet | V5D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 71gf | 9.000gf | 0.406" (10.3mm) | - | 0.018" (0.45mm) | - | -40°C ~ 85°C |
|
|
83181020SWITCH SNAP ACTION SPDT 6A 250V |
3,199 |
|
Datasheet | 83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
