Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCKMR54D1SWITCH LIMIT 4PST-NC 3A 240V |
2,316 |
|
Datasheet | XCKM | Box | Active | 4PST-NC | On-Mom | 3A (AC), 550mA (DC) | 240 V | 125 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -40°C ~ 70°C |
|
XCMD61500L1SWITCH LIMIT DPDT 1.5A 240V |
2,050 |
|
Datasheet | XCMD | Box | Active | DPDT (DB/DM) | On-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

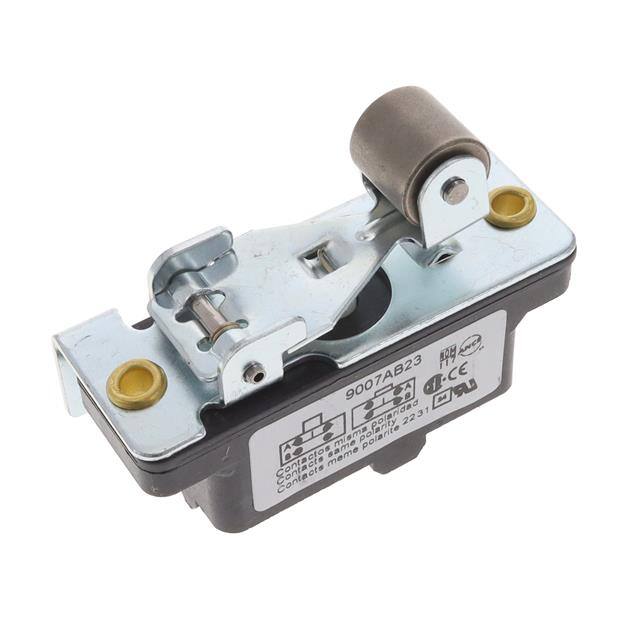

9007AB23SWITCH LIMIT SPDT 15A 120V |
4,123 |
|
Datasheet | 9007 | Box | Active | SPDT (DB/DM) | On-Mom | 15A (AC), 500mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP20 | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
XCMD61500L2SWITCH SNAP ACT DPDT 1.5A 240V |
1,453 |
|
Datasheet | XCMD | Box | Active | DPDT (DB/DM) | On-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCKP2102N12SWITCH LIMIT DPDT 3A 240V |
1,612 |
|
Datasheet | XCKP | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCKP2127N12SWITCH LIMIT DPDT 3A 240V |
2,639 |
|
Datasheet | XCKP | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCKD2102N12SWITCH LIMIT DPDT 3A 240V |
3,451 |
|
Datasheet | XCKD | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCKT2145N12SWITCH LIMIT DPDT 3A 240V |
4,340 |
|
Datasheet | XCKT | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCKT2102N12SWITCH LIMIT DPDT 3A 240V |
1,716 |
|
Datasheet | XCKT | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCKD2106N12SWITCH LIMIT DPDT 3A 240V |
4,539 |
|
Datasheet | XCKD | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -25°C ~ 70°C |
