Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9007C68T10Y247SWITCH LIMIT DPDT 6A 120V |
3,810 |
|
Datasheet | 9007C | Box | Active | DPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
9007AO16SWITCH LIMIT SPDT 15A 120V |
4,074 |
|
Datasheet | 9007 | Box | Active | SPDT (DB/DM) | On-Mom | 15A (AC), 250mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP20 | - | - | - | - | - | - | - | -18°C ~ 85°C |
|
|
XCKML115SWITCH LIMIT |
2,806 |
|
Datasheet | XCKM | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | - | - | - | Lever, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
L1422MSWITCH LIMIT SPST 20A 120V |
4,753 |
|
Datasheet | - | Box | Active | SPST-NC (DB) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 49°C |
|
9007AO36SWITCH LIMIT SPDT 15A 120V |
1,580 |
|
Datasheet | 9007 | Box | Active | SPDT (DB/DM) | On-Mom | 15A (AC), 250mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP20 | - | - | - | - | - | - | - | -18°C ~ 85°C |
|

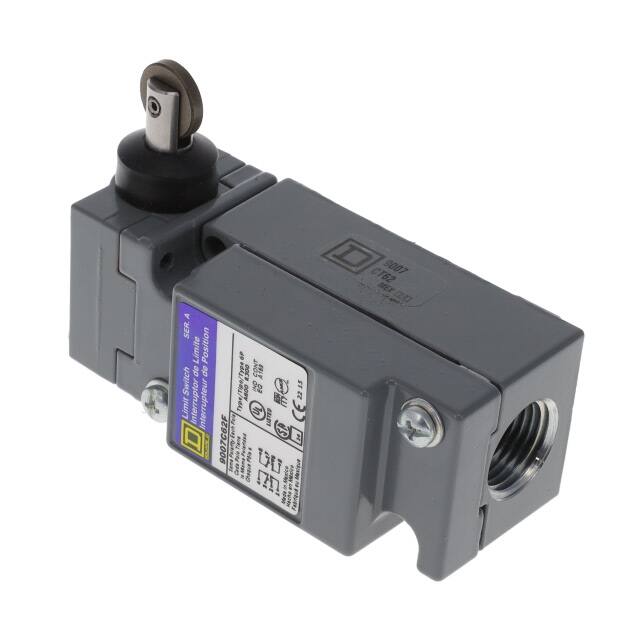

9007C62FSWITCH SNAP ACTION DPDT 6A 120V |
4,124 |
|
Datasheet | 9007C | Box | Active | DPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
L100WTR2M10SWITCH LIMIT 3PST 20A 120V |
2,402 |
|
Datasheet | - | Box | Active | 3PST-2NC/1NO (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
9007TSB1SWITCH LIMIT SPDT 20A 120V |
1,583 |
|
Datasheet | 9007T | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
L100WNC2M18SWITCH LIMIT DPST 6A 120V |
3,711 |
|
Datasheet | - | Box | Active | DPST-NC (DB) | On-Mom | 6A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
L100WTR2M11SWITCH LIMIT 3PST 20A 120V |
4,808 |
|
Datasheet | - | Box | Active | 3PST-2NC/1NO (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
