Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCKP2121N12SWITCH LIMIT DPDT 3A 240V |
2,699 |
|
Datasheet | XCKP | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCSD3902N12SWITCH SAFETY LMT 3PST 1.5A 240V |
1,528 |
|
Datasheet | XCSD | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Panel Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCMD2124L1SWITCH LIMIT DPDT 1.5A 240V |
4,111 |
|
Datasheet | XCMD | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Cable with Connector | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCKM106SWITCH LIMIT DPDT 3A 240V |
1,619 |
|
Datasheet | XCKM | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
9007AB22SWITCH LIMIT SPDT 15A 120V |
2,031 |
|
Datasheet | 9007 | Box | Active | SPDT (DB/DM) | On-Mom | 15A (AC), 500mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP20 | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
9007MS10S0100SWITCH LIMIT SPDT 6A 120V |
3,949 |
|
Datasheet | 9007MS | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|

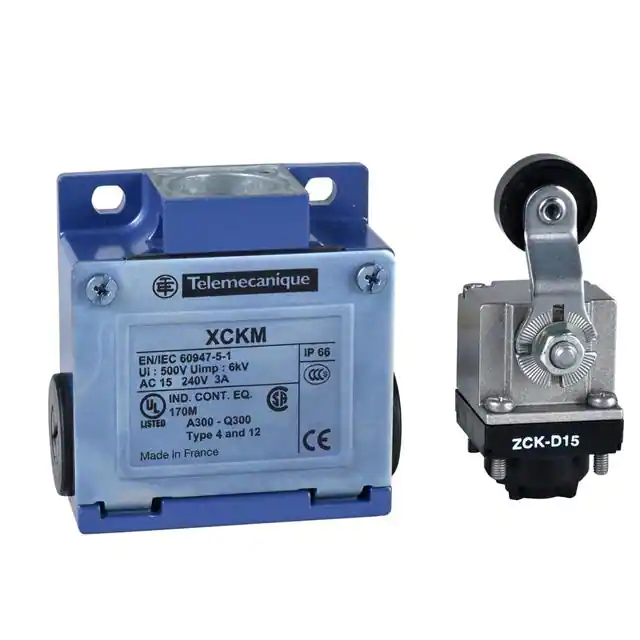

XCKM115H7SWITCH LIMIT DPST 3A 240V |
3,780 |
|
Datasheet | - | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
XCSD3918N12SWITCH SAFETY LMT 3PST 1.5A 240V |
3,155 |
|
Datasheet | XCSD | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
9007MS02G0410SWITCH LIMIT SPDT 0.1A 125V |
4,553 |
|
Datasheet | 9007MS | Box | Active | SPDT | On-Mom | 100mA (AC), 30mA (DC) | 125 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
9007ML03S0100SWITCH LIMIT SPDT 6A 120V |
3,016 |
|
Datasheet | 9007ML | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
