LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-B8U041100WWLED MOD LT-M092C LNR STRP 3500K |
4,609 |
|
Datasheet | LT-M092C | Tray | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 356lm (Typ) | 110mA | 55°C | 24V | 135 lm/W | 150mA | 80 | 115° | With Connector | 91.00mm L x 18.00mm W | 5.20mm | - | Flat |
|

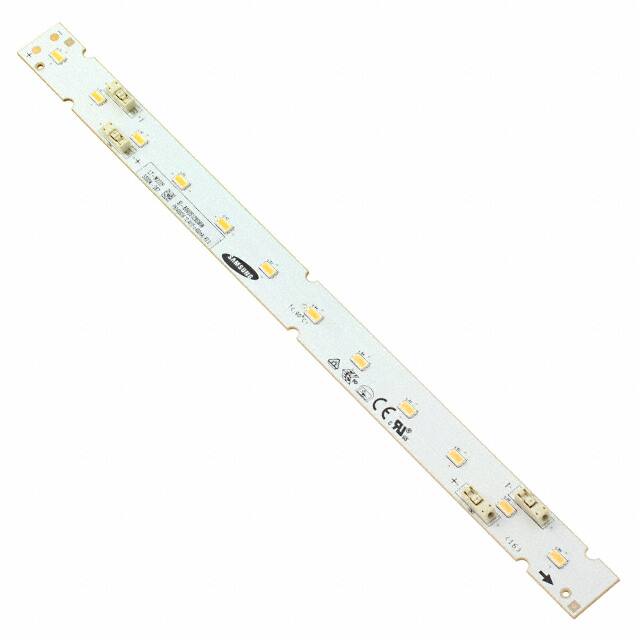

SI-B9W051280WWLED MOD LT-M272F LNR STRP 2700K |
2,223 |
|
Datasheet | LT-M272F | Tray | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Linear Light Strip | 510lm (Typ) | 450mA | 55°C | 12V | 94 lm/W | 450mA | 90 | 115° | - | 275.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
SI-B9U051280WWLED MOD LT-M272F LNR STRP 3500K |
4,287 |
|
Datasheet | LT-M272F | Tray | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 560lm (Typ) | 450mA | 55°C | 12V | 104 lm/W | 450mA | 90 | 115° | - | 275.00mm L x 18.00mm W | 5.80mm | - | Flat |
|

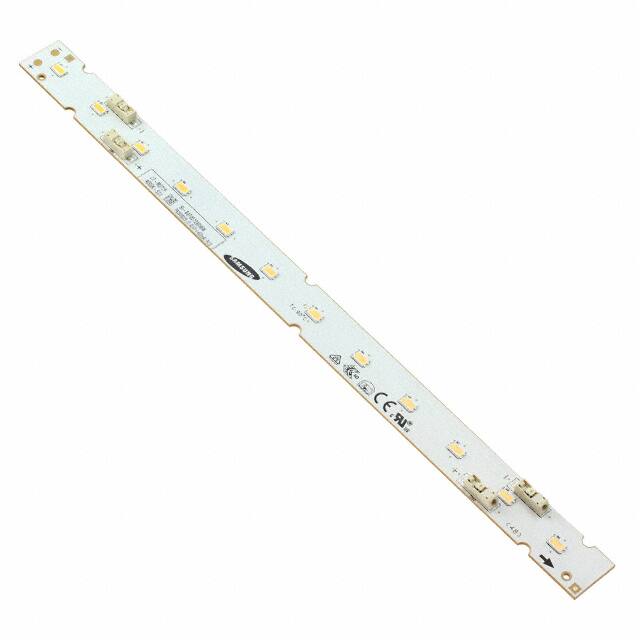

SI-B9T051280WWLED MOD LT-M272F LNR STRP 4000K |
1,769 |
|
Datasheet | LT-M272F | Tray | Obsolete | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 585lm (Typ) | 450mA | 55°C | 12V | 108 lm/W | 450mA | 90 | 115° | - | 275.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
SI-B9V113280WWLED MOD LT-M272H LNR STRP 3000K |
2,983 |
|
Datasheet | LT-M272H | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1035lm (Typ) | 450mA | 55°C | 25V | 92 lm/W | 450mA | 90 | 115° | - | 275.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
SI-B9T113280WWLED MOD LT-M272H LNR STRP 4000K |
4,609 |
|
Datasheet | LT-M272H | Tray | Obsolete | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1163lm (Typ) | 450mA | 55°C | 25V | 103 lm/W | 450mA | 90 | 115° | - | 275.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
SI-B9R113280WWLED MOD F-SER GEN3 WH LNR STRP |
1,098 |
|
Datasheet | F-Series Gen3 | Tray | Obsolete | LED Module | White | - | - | Linear Light Strip | - | - | - | - | - | - | - | - | - | - | - | - | Flat |
|
SI-B9W111560WWLED MOD LT-M562F LNR STRP 2700K |
2,663 |
|
Datasheet | LT-M562F | Tray | Obsolete | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1020lm (Typ) | 450mA | 50°C | 24.7V | 92 lm/W | 450mA | 90 | 115° | - | 560.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
|
SI-B9V111560WWLED MOD LT-M562F LNR STRP 3000K |
1,020 |
|
Datasheet | LT-M562F | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1050lm (Typ) | 450mA | 50°C | 24.7V | 94 lm/W | 450mA | 90 | 115° | - | 560.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
|
SI-B9U111560WWLED MOD LT-M562F LNR STRP 3500K |
4,112 |
|
Datasheet | LT-M562F | Tray | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1120lm (Typ) | 450mA | 50°C | 24.7V | 101 lm/W | 450mA | 90 | 115° | - | 560.00mm L x 18.00mm W | 5.80mm | - | Flat |
