LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-B8U151560WWLED MOD LT-M562B LNR STRP 3500K |
2,318 |
|
- |
LT-M562B | Tray | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1970lm (Typ) | 600mA | 50°C | 24.7V | 133 lm/W | 600mA | 80 | 115° | With Connector | 560.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
SI-B8U171550WWLED MOD LT-M552C LNR STRP 3500K |
3,854 |
|
- |
LT-M552C | Tray | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2390lm (Typ) | 700mA | 50°C | 24V | 142 lm/W | 900mA | 80 | 115° | With Connector | 550.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
SI-B8U171560WWLED MOD LT-M562C LNR STRP 3500K |
3,318 |
|
- |
LT-M562C | Tray | Obsolete | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2390lm (Typ) | 700mA | 50°C | 24V | 142 lm/W | 900mA | 80 | 115° | With Connector | 560.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
SI-B8U341560WWLED MOD LT-F562A LNR STRP 3500K |
4,028 |
|
Datasheet | LT-F562A | Tray | Obsolete | LED Module | White, Warm | 3500K 4-Step MacAdam Ellipse | - | Linear Light Strip | 4370lm (Typ) | 1.35A | - | 24.7V | 131 lm/W | - | 80 | 115° | With Connector | 560.00mm L x 18.00mm W | 5.20mm | - | Flat |
|

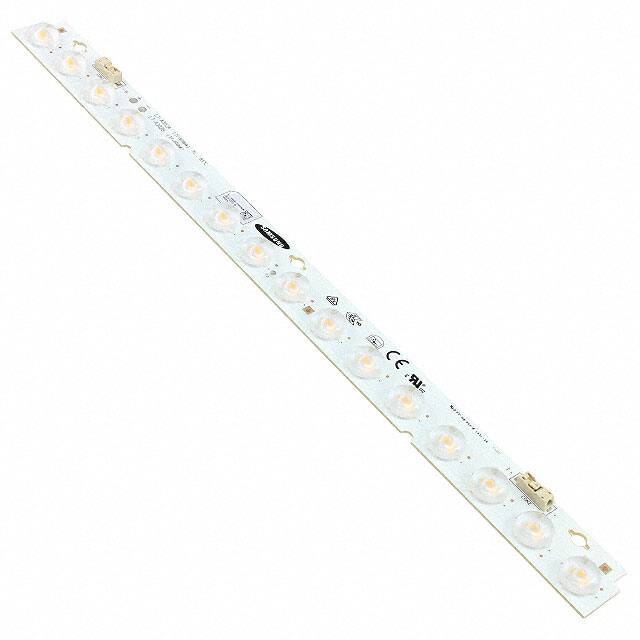

SI-B8V071300WWLED MOD LT-A302A LNR STRP 3000K |
1,188 |
|
Datasheet | LT-A302A | Tray | Obsolete | LED Module | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Linear Light Strip | 890lm (Typ) | 600mA | 45°C | 12.7V | 117 lm/W | - | 80 | - | With Connector | 295.00mm L x 21.00mm W | 6.00mm | - | Domed |
|
SI-B8V09526001LED MOD LAM-SQ32B WM RECT 3000K |
4,854 |
|
- |
LAM-SQ32B | Box | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 1260lm (Typ) | 385mA | 35°C | 24V | 137 lm/W | 600mA | 80 | 145° | With Connector | 259.00mm L x 250.00mm W | 6.60mm | - | Flat |
|
SI-B8V111550WWLED MOD LT-M552A LNR STRP 3000K |
3,709 |
|
- |
LT-M552A | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1460lm (Typ) | 450mA | 50°C | 24.7V | 132 lm/W | - | 80 | 115° | With Connector | 550.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
SI-B8V111560WWLED MOD LT-M562A LNR STRP 3000K |
2,983 |
|
- |
LT-M562A | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1460lm (Typ) | 450mA | 50°C | 24.7V | 132 lm/W | 450mA | 80 | 115° | With Connector | 560.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
SI-B8V151550WWLED MOD LT-M552B LNR STRP 3000K |
2,787 |
|
- |
LT-M552B | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1950lm (Typ) | 600mA | 50°C | 24.7V | 132 lm/W | - | 80 | 115° | With Connector | 550.00mm L x 18.00mm W | 5.80mm | - | Flat |
|

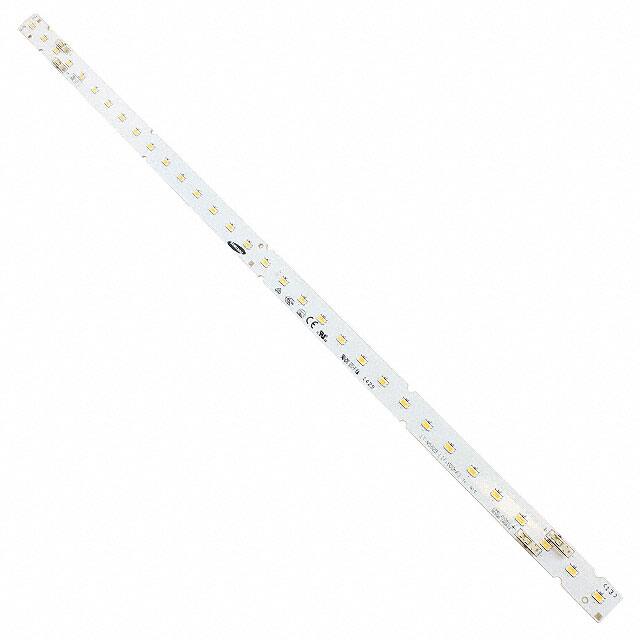

SI-B8V151560WWLED MOD LT-M562B LNR STRP 3000K |
3,987 |
|
- |
LT-M562B | Tray | Obsolete | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1950lm (Typ) | 600mA | 50°C | 24.7V | 132 lm/W | 600mA | 80 | 115° | With Connector | 560.00mm L x 18.00mm W | 5.80mm | - | Flat |
