LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-N8V0814B0WWLED MOD RND-090C WHT RND 3000K |
1,902 |
|
Datasheet | Round-090C | Box | Obsolete | LED Module | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Round | 1050lm (Typ) | 350mA | 55°C | 24V | 125 lm/W | 450mA | 80 | 115° | With Connector | 90.00mm Dia | 5.75mm | - | Flat |
|

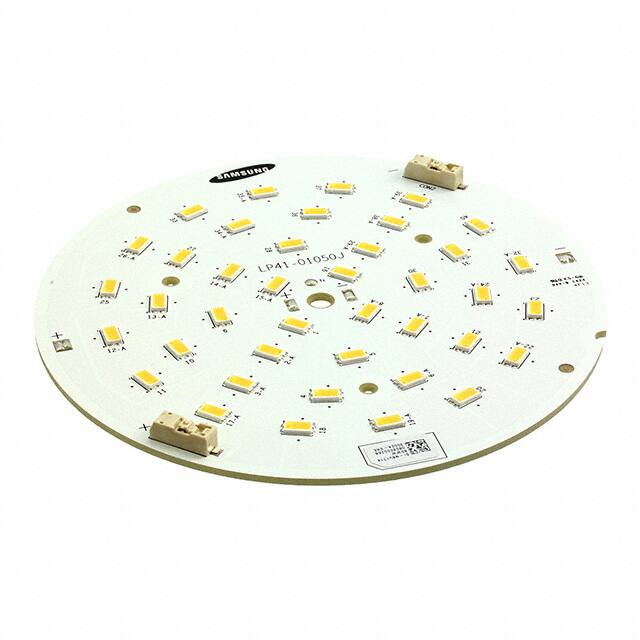

SI-N8V1714B0WWLED MOD RND-110C WHT RND 3000K |
1,883 |
|
Datasheet | Round-110C | Box | Obsolete | LED Module | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Round | 2050lm (Typ) | 700mA | 55°C | 25V | 120 lm/W | 750mA | 80 | 115° | With Connector | 110.00mm Dia | 5.80mm | - | Flat |
|

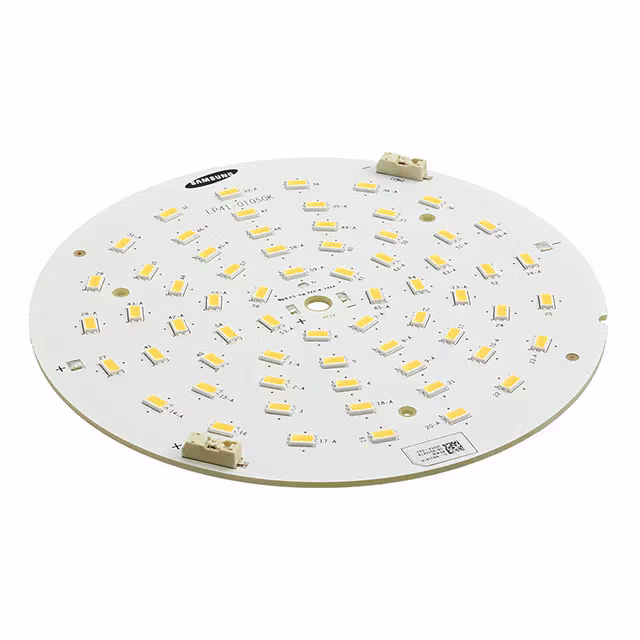

SI-N8V2816B0WWLED MOD RND-130C WHT RND 3000K |
2,709 |
|
Datasheet | Round-130C | Box | Obsolete | LED Module | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Round | 3330lm (Typ) | 700mA | 55°C | 39.7V | 120 lm/W | 750mA | 80 | 115° | With Connector | 130.00mm Dia | 5.80mm | - | Flat |
|
SI-B8V341550WWLED MOD LT-F552A LNR STRP 3000K |
1,871 |
|
- |
LT-F552A | Tray | Obsolete | LED Module | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Linear Light Strip | 4310lm (Typ) | 1.35A | 60°C | 24.7V | 129 lm/W | - | 80 | 115° | With Connector | 550.00mm L x 18.00mm W | 5.20mm | - | Flat |
|
|
SPHCW1HDNA25YHRT1FLED COB LC013B COOL WH SQ 5000K |
1,818 |
|
Datasheet | LC013B | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 1555lm (1430lm ~ 1680lm) | 360mA | 25°C | 36.5V | 118 lm/W | 460mA | 80 | 115° | - | 17.00mm L x 17.00mm W | 1.90mm | 11.00mm Dia | Flat |
|
SPHCW1HDNE25YHRT4JLED COB LC040B COOL WH SQ 5000K |
3,882 |
|
- |
LC040B | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 5295lm (4505lm ~ 6085lm) | 1.08A | 25°C | 35.5V | 138 lm/W | 1.62A | 80 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
SPHWW1HDNC23YHTN3FLED COB LC026B NEUT WH SQ 4000K |
4,955 |
|
- |
LC026B | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 3897lm (3429lm ~ 4365lm) | 720mA | 25°C | 35.5V | 152 lm/W | 1.3A | 70 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
SPHWW1HDNC23YHVN3FLED COB LC026B WM WHT SQ 3000K |
4,131 |
|
- |
LC026B | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 3897lm (3429lm ~ 4365lm) | 720mA | 25°C | 35.5V | 152 lm/W | 1.3A | 70 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
SPHWW1HDNC27YHV32FLED COB LC026B WM WHT SQ 3000K |
4,788 |
|
- |
LC026B | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3000K | - | Square | 2630lm (2150lm ~ 3110lm) | 720mA | 25°C | 35.5V | 103 lm/W | 1.3A | 90 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia | Flat |
|
|
SPHWW1HDNE23YHRN5JLED COB LC040B COOL WH SQ 5000K |
2,550 |
|
- |
LC040B | Tray | Obsolete | Chip On Board (COB) | White, Cool | 5000K | - | Square | 5808lm (5111lm ~ 6505lm) | 1.08A | 25°C | 35.5V | 151 lm/W | 1.9A | 70 | 115° | - | 21.50mm L x 21.50mm W | 1.50mm | 17.00mm Dia | Flat |
