Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

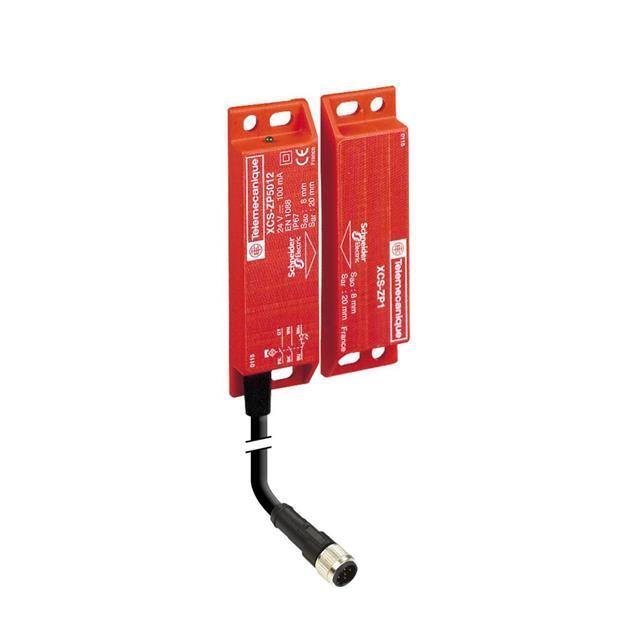

XCSDMP5012INTERLOCK MAGNETIC 3PST |
4,442 |
|
Datasheet | XCSDMP | Box | Active | Magnetic | 3PST-2NO/1NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
XCSDMP5005INTERLOCK MAGNETIC 3PST |
4,530 |
|
Datasheet | XCSDMP | Box | Active | Magnetic | 3PST-2NO/1NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
XCSDMP70010INTERLOCK MAGNETIC 3PST |
3,028 |
|
Datasheet | XCSDMP | Box | Active | Magnetic | 3PST-2NC/1NO | 100mA (DC) | 24VDC | - | - | Non-Contact | Connector (M12) | - | - | - | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
|
XCSDMP7002INTERLOCK MAGNETIC 3PST |
1,170 |
|
Datasheet | XCSDMP | Box | Active | Magnetic | 3PST-2NC/1NO | 100mA (DC) | 24VDC | - | - | Non-Contact | Connector (M12) | - | - | - | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
XCSA501INTERLOCK NON-LOCKING 3PST |
3,305 |
|
Datasheet | XCSA | Box | Active | Non-Locking | 3PST-2NO/1NC | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSA801INTERLOCK NON-LOCKING 3PST |
4,563 |
|
Datasheet | XCSA | Box | Active | Non-Locking | 3PST-NC | 6A (AC), 550mA (DC) | 240VAC, 250VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

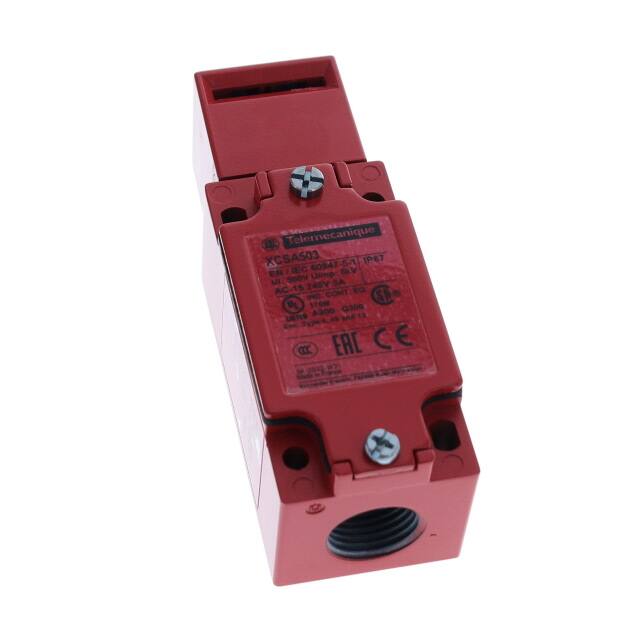

XCSA503INTERLOCK NON-LOCKING 3PST |
3,360 |
|
Datasheet | XCSA | Box | Active | Non-Locking | 3PST-2NO/1NC | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSA713INTERLOCK NON-LOCKING 3PST |
3,073 |
|
Datasheet | XCSA | Box | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

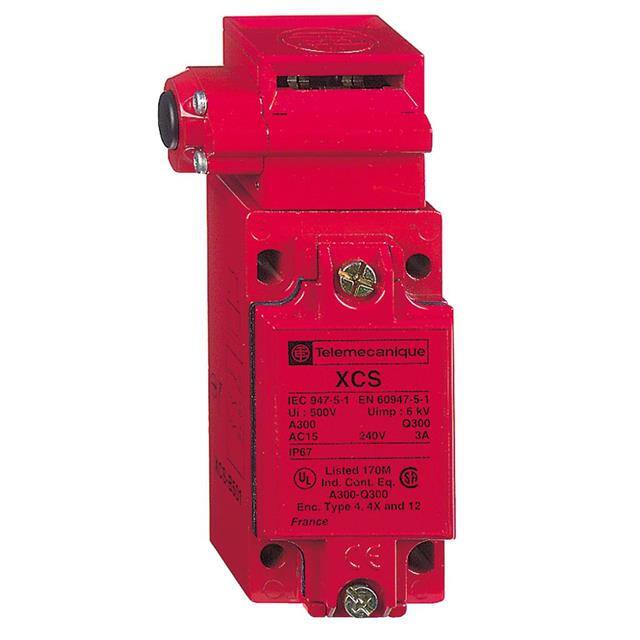

XCSB703INTERLOCK SOLENOID RELEASE 3PST |
1,244 |
|
Datasheet | XCSB | Box | Active | Solenoid Release | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSTE5312INTERLOCK SOLENOID LOCKING DPST |
1,337 |
|
Datasheet | XCSTE | Box | Active | Solenoid Locking | DPST-NO/NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | 51kgf | Panel Disconnect | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | CSA, UL |
