Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCSDMR5912INTERLOCK MAGNETIC DPST |
4,652 |
|
Datasheet | XCSD | Box | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 24VDC | - | - | - | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
XCSDMP7012INTERLOCK MAGNETIC 3PST |
4,259 |
|
Datasheet | XCSDMP | Box | Active | Magnetic | 3PST-2NC/1NO | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
XCSDMP5002INTERLOCK MAGNETIC 3PST |
3,538 |
|
Datasheet | XCSDMP | Box | Active | Magnetic | 3PST-2NO/1NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
XCSDMC590L01M8INTERLOCK MAGNETIC DPST |
1,288 |
|
Datasheet | XCSDMC | Box | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Connector (M8) | - | - | - | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

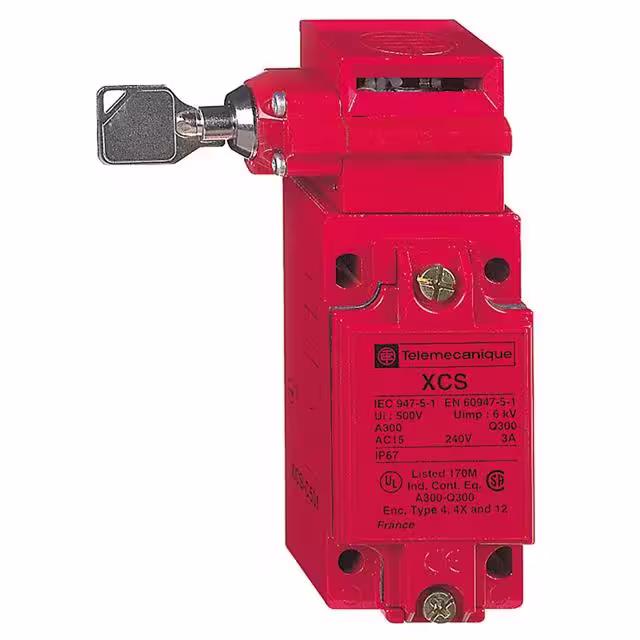

XCSC703INTERLOCK KEY LOCKING 3PST |
4,467 |
|
Datasheet | XCSC | Box | Active | Key Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 240VAC, 250VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSA803INTERLOCK NON-LOCKING 3PST |
4,716 |
|
Datasheet | XCSA | Box | Active | Non-Locking | 3PST-NC | 6A (AC), 550mA (DC) | 240VAC, 250VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

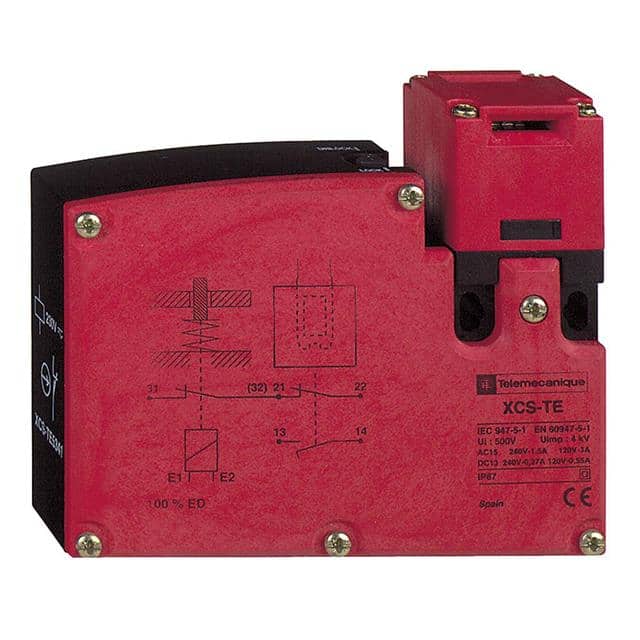

XCSTE7512INTERLOCK SOLENOID LOCKING DPST |
4,746 |
|
Datasheet | XCST | Box | Active | Solenoid Locking | DPST-NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSB713INTERLOCK SOLENOID LOCKING 3PST |
4,364 |
|
Datasheet | XCSB | Box | Active | Solenoid Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 240VAC, 250VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSE5311INTERLOCK SOLENOID LOCKING 3PST |
2,206 |
|
Datasheet | XCSE | Box | Active | Solenoid Locking | 3PST-2NO/1NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | PG13.5 | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSE5333INTERLOCK SOLENOID LOCKING 3PST |
1,213 |
|
Datasheet | XCSE | Box | Active | Solenoid Locking | 3PST-2NO/1NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CSA, UL |
