Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCSE7333INTERLOCK SOLENOID LOCKING 3PST |
3,647 |
|
Datasheet | XCSE | Box | Active | Solenoid Locking | 3PST-2NC/1NO | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSE5513INTERLOCK SOLENOID LOCKING 3PST |
1,790 |
|
Datasheet | XCSE | Box | Active | Solenoid Locking | 3PST-2NO/1NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSE7533INTERLOCK SOLENOID LOCKING 3PST |
2,447 |
|
Datasheet | XCSE | Box | Active | Solenoid Locking | 3PST-1NO/2NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSB803INTERLOCK SOLENOID LOCKING 3PST |
4,822 |
|
Datasheet | XCSB | Box | Active | Solenoid Locking | 3PST-NC | 6A (AC), 550mA (DC) | 240VAC, 250VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSB503INTERLOCK SOLENOID LOCKING 3PST |
2,777 |
|
Datasheet | XCSB | Box | Active | Solenoid Locking | 3PST-1NC/2NO | 6A (AC), 550mA (DC) | 240VAC, 250VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

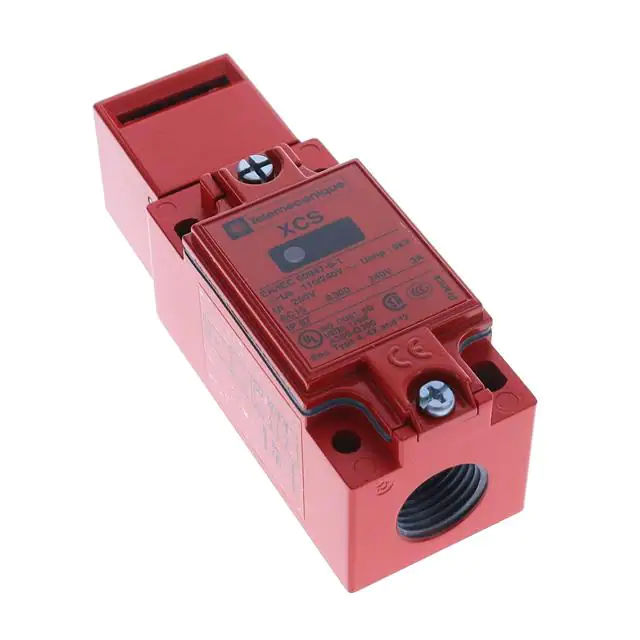

XCSA723INTERLOCK NON-LOCKING 3PST |
4,528 |
|
Datasheet | XCSA | Box | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSL766F3INTERLOCK KEY LOCKING |
3,008 |
|
Datasheet | XCSL | Box | Active | Key Locking | - | - | - | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | - | - | - |
|
XCSL784B3INTERLOCK NON-LOCKING |
2,418 |
|
Datasheet | XCSL | Box | Active | Non-Locking | - | - | - | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | - | - | - |
|
XCSMP70L2INTERLOCK KEY LOCKING 3PST |
3,061 |
|
Datasheet | XCSMP | Box | Active | Key Locking | 3PST-2NC/1NO | 1.5A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Cable Leads | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, CUL, UL |
|
XCSDMR791L01M12INTERLOCK MAGNETIC DPST |
4,001 |
|
Datasheet | XCSDMR | Box | Active | Magnetic | DPST-NC | 100mA (DC) | 24VDC | - | - | - | Cable with Connector (M12) | - | 8mm | 20mm | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CSA, UL |
