Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBN4-F29-E0-5MINDUCTIVE DC |
1,656 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.157" (4mm) | NPN-NO, 3-Wire | - | Unshielded | Polyphenylene Sulfide (PPS) | 4.75V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NBB2-F29-E2-5MINDUCTIVE DC |
4,134 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Polyphenylene Sulfide (PPS) | 4.75V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NBN4-F29-E3-5MINDUCTIVE DC |
2,704 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.157" (4mm) | PNP-NC, 3-Wire | - | Unshielded | Polyphenylene Sulfide (PPS) | 4.75V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|

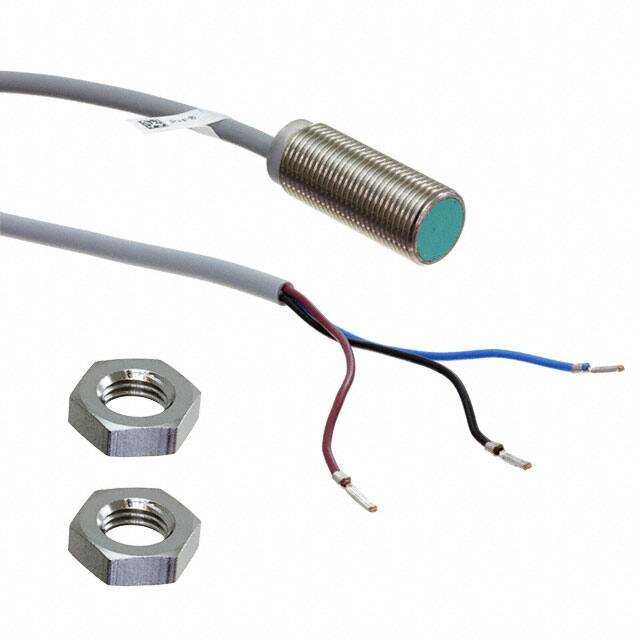

NBB4-12GM30-E2INDUCTIVE SEN 4MM PNP |
2,128 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Obsolete | Inductive | 0.157" (4mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|

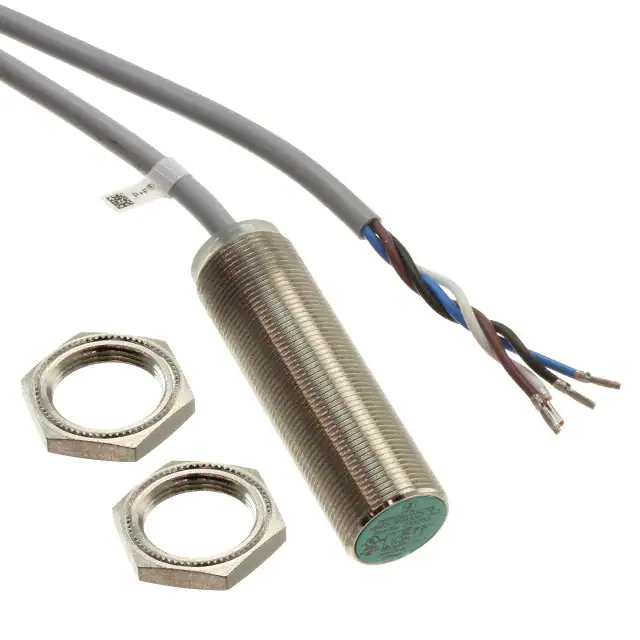

NBB5-18GM60-A0INDUCTIVE SEN 5MM NPN |
1,312 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Obsolete | Inductive | 0.197" (5mm) | NPN-NC/NO, 4-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|

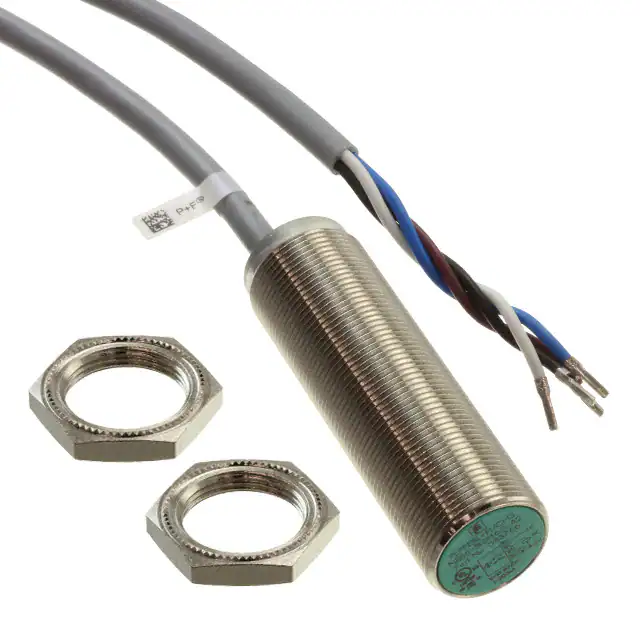

NBB5-18GM60-A2INDUCTIVE SEN 5MM PNP |
3,178 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Obsolete | Inductive | 0.197" (5mm) | NPN-NC/NO, 4-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NCB5-18GM40-Z0INDUCTIVE DC |
2,717 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | NO | - | Unshielded | Stainless Steel | 5V ~ 60V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NBB7-F10-E3INDUCTIVE DC |
3,054 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.276" (7mm) | PNP-NC, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NBB7-F10-E2INDUCTIVE DC |
2,146 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.276" (7mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NBN10-F10-E2-V1INDUCTIVE DC |
4,569 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.394" (10mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
