Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PIRS1X166UMPM1PLASTIC FIBER, OPPOSED MODEC |
3,796 |
|
Datasheet | PIRS1X16 | Box | Active | Through-Beam | - | - | - | - | - | - | - | - | - | 70°C |
|
QS186LE212Q8PHOTO SEN LASER 15M |
4,816 |
|
Datasheet | QS18 | Box | Active | Through-Beam | 590.551" (15m) | 10V ~ 30V | - | - | LED | Connector | NEMA 6P, IEC IP67 | - | - | -10°C ~ 50°C |
|
S18AW3FF100Q1PHOTO SEN 100MM SPST |
4,416 |
|
Datasheet | S18 | Box | Active | Background Suppression | 3.937" (100mm) | 20 VAC ~ 250 VAC | 16ms | - | Infrared LED | Connector | NEMA 6P, IEC IP69K | - | - | -40°C ~ 70°C |
|
D10BFPQFIBER SEN NPN/PNP OUT |
4,834 |
|
Datasheet | D10 | Box | Active | Fiber Optic | - | 10V ~ 30V | 500µs | NPN/PNP | Red LED | Connector | NEMA 1 IEC IP50 | 78.74" (2m) | - | -10°C ~ 55°C |
|

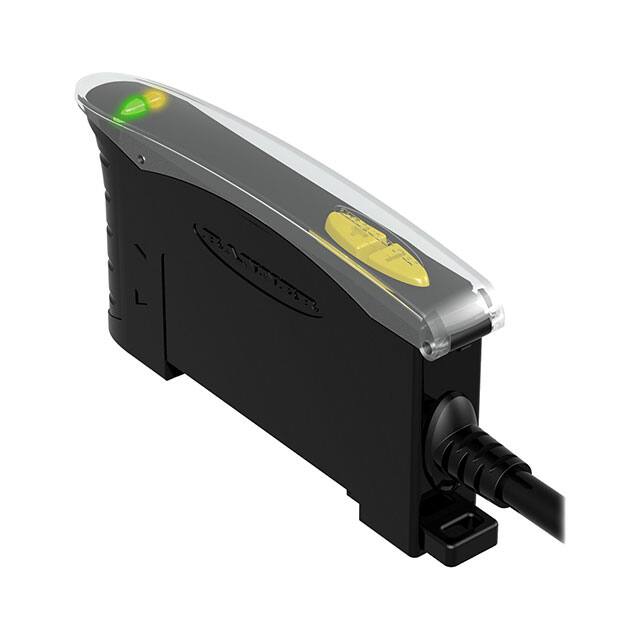

D10BFPFIBER SEN NPN/PNP OUT |
3,002 |
|
Datasheet | D10 | Box | Active | Fiber Optic | - | 10V ~ 30V | 500µs | NPN/PNP | Red LED | Cable | NEMA 1 IEC IP50 | 78.74" (2m) | - | -10°C ~ 55°C |
|
Q45VR3LPQPHOTO SEN RETRO 0.15-6M SPST |
3,510 |
|
Datasheet | Q45 | Box | Active | Retroreflective, Polarized | 5.91" ~ 236.22" (150mm ~ 6000mm) | 12VDC ~ 250VDC, 24VAC ~ 250VAC | 15ms | SPDT | Red (680nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable | -25°C ~ 55°C |
|
SM312C2QDPHOTO SEN INFRARED 43MM BIPOLAR |
4,238 |
|
Datasheet | MINI-BEAM® | Box | Active | Convergent | 1.693" (43mm) | 10V ~ 30V | 1ms | NPN/PNP - Dark-ON/Light-ON | Infrared (880nm) | Connector | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12 IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 70°C |
|
PIRS1X326T5AL25PLASTIC FIBER; OPPOSED MODEC |
2,179 |
|
- |
PIRS1X32 | Box | Active | Through-Beam | - | - | - | - | - | - | - | - | - | 70°C |
|
VS8EAPRVS8 SERIES: LASER RECEIVERRA |
1,008 |
|
Datasheet | VS8 | Box | Active | Through-Beam | 118.110" (3m) | 10V ~ 30V | 500µs | PNP - Dark-ON/Light-ON - Selectable | Red (650nm) | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable | -20°C ~ 60°C |
|
Q45BW13DLQ45 SERIES: DIFFUSERANGE: 1. |
2,890 |
|
Datasheet | Q45 | Box | Active | Diffuse | 70.866" (1.8m) | 24 ~ 250VAC, 12 ~ 250VDC | 2ms | SPST | Infrared | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -25°C ~ 55°C |
