Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M12PFF50Q8SEN PHOTO 50MM PNP |
4,167 |
|
Datasheet | M12 Series | Bag | Active | Background Suppression | 1.969" (50mm) | 10V ~ 30V | 500µs | PNP - Dark-ON/Light-ON | Red (680nm) | Connector | IP67, IP68 | - | - | -20°C ~ 60°C |
|
Q45BB6DLPHOTO SEN DIFFUSED 1.8M BIPOLAR |
2,041 |
|
Datasheet | Q45 | Box | Active | Through-Beam | 70.866" (1.8m) | 10V ~ 30V | 2ms | NPN/PNP | Infrared (880nm) | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable | -40°C ~ 70°C |
|

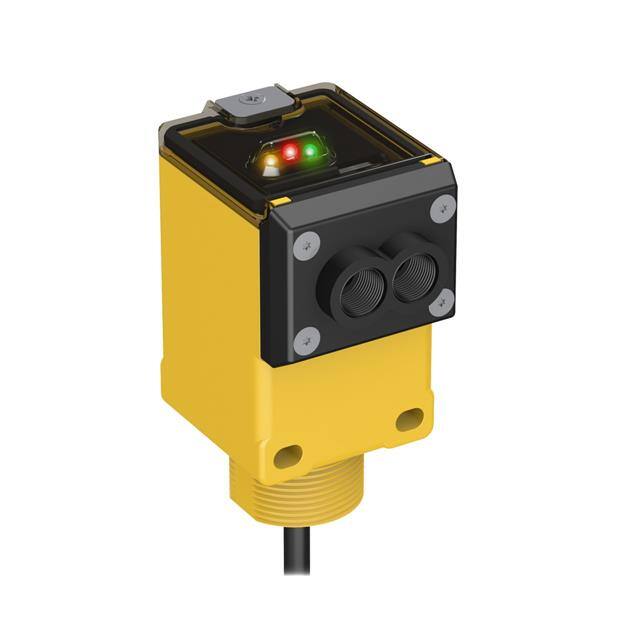

Q45BB6FVQ45 SERIES: VISIBLE RED GLASS FI |
4,706 |
|
Datasheet | Q45 | Box | Active | Fiber Optic | - | 10V ~ 30V | 2ms | NPN/PNP - Dark-ON/Light-ON - Selectable | Red (650nm) | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -40°C ~ 70°C |
|
Q45BB6DQ5PHOTO SEN DIFFUSED 450MM BIPOLAR |
3,627 |
|
Datasheet | Q45 | Box | Active | Through-Beam | 17.717" (450mm) | 10V ~ 30V | 2ms | NPN/PNP | Infrared (880nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable | -40°C ~ 70°C |
|
Q12RB6LVQ5WORLD-BEAM Q12 SERIES: RETRO |
4,409 |
|
Datasheet | Q12 | Box | Active | Retroreflective, NonPolarized | 4.9' (1.50m) | 10V ~ 30V | 700µs | NPN/PNP - Dark-ON | Red (640nm) | Connector | IEC IP67 | - | - | -20°C ~ 55°C |
|
T8RP6D50QT8 SERIES: DIFFUSERANGE: 50M |
2,925 |
|
Datasheet | T8 | Box | Active | Diffuse | 1.969" (50mm) | 10V ~ 30V | 1ms | PNP - Dark-ON | Red LED | Connector | NEMA 6P, IEC IP67 | - | - | -20°C ~ 55°C |
|
TM18VP6FF100Q5PHOTO SEN BACK SUPPRESSION |
2,473 |
|
Datasheet | TM18 | Box | Active | Reflective | 3.937" (100mm) | 10V ~ 30V | 3ms | PNP | Red (660nm) | Connector | IEC IP67, IEC IP69K | - | - | -40°C ~ 70°C |
|
Q20PAF200Q5PHOTO SEN 200MM PNP |
4,221 |
|
Datasheet | Q20 | Box | Active | Background Suppression | 7.874" (200mm) | 10V ~ 30V | 2.8ms | PNP - Dark-ON/Light-ON | Red LED | Connector | NEMA 6P, IP67 | - | Adjustable, Potentiometer | -20°C ~ 60°C |
|
|
Q20PAF200QPHOTO SEN 200MM PNP |
2,909 |
|
Datasheet | Q20 | Box | Active | Background Suppression | 7.874" (200mm) | 10V ~ 30V | 2.8ms | PNP - Dark-ON/Light-ON | Red LED | Connector | NEMA 6P, IP67 | - | Adjustable, Potentiometer | -20°C ~ 60°C |
|
IT26SFIBER OPPOSED MODE STAIGHT TIP |
2,679 |
|
- |
IT2 | Box | Active | Through-Beam | - | - | - | - | - | - | - | - | - | 249°C |
