Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

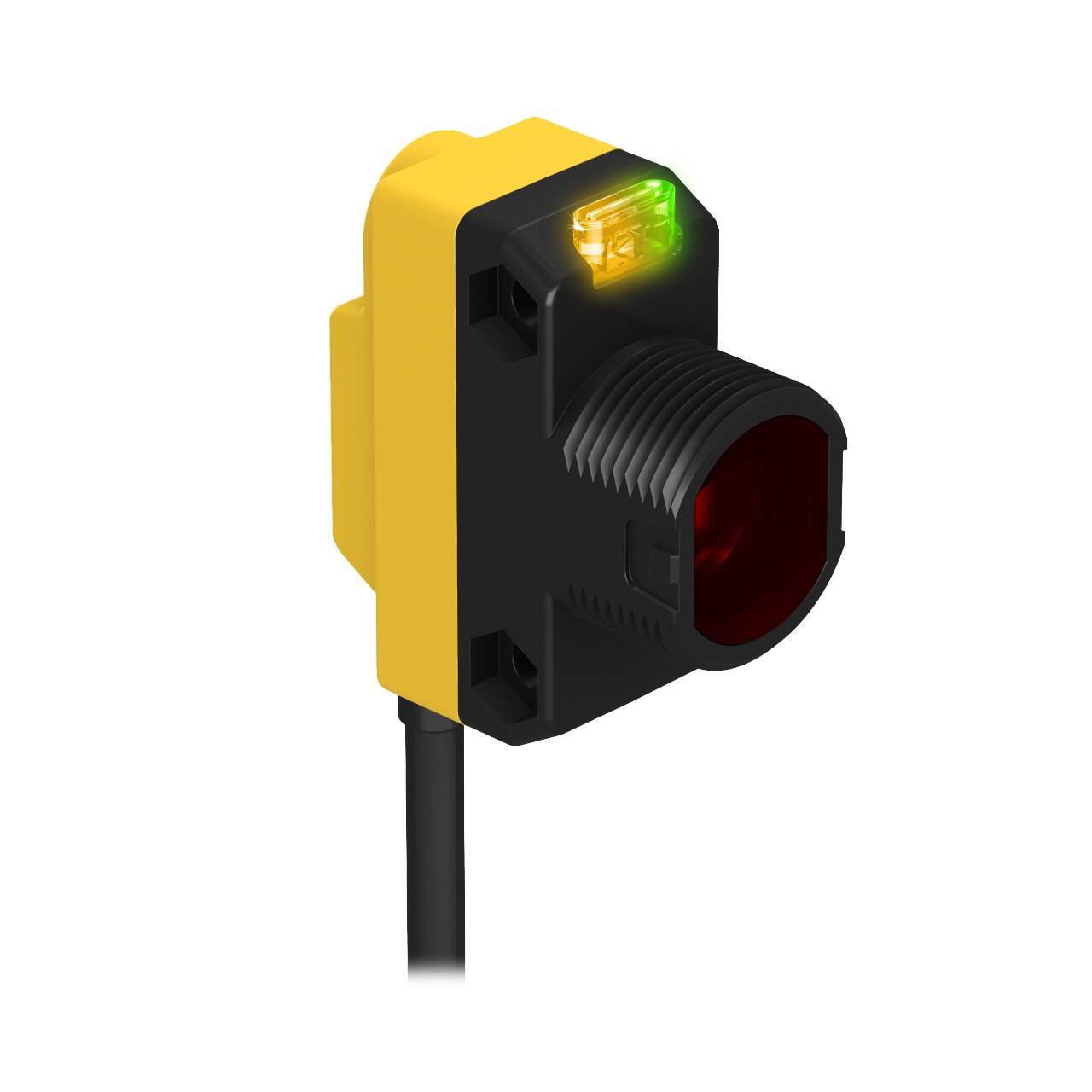

QS18EN6XLPCQ5QS18 EXPERT SERIES CLEAR OBJECT |
1,648 |
|
Datasheet | QS18 | Box | Active | Retroreflective, Polarized | 118.110" (3m) | 10V ~ 30V | 400µs | NPN - Dark-ON/Light-ON - Selectable | Red (625nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable | -40°C ~ 70°C |
|
QS18UPAQ5ULTRA SEN 50-500MM PNP |
4,015 |
|
Datasheet | QS18U | Box | Active | - | 1.97" ~ 19.69" (50mm ~ 500mm) | 12V ~ 30V | 15ms | PNP | LED | Cable | NEMA 6P, IP67 | 78.74" (2m) | Adjustable | -20°C ~ 60°C |
|
Q45AD9LPQ45 NAMUR: POLARIZED RETRORA |
2,368 |
|
Datasheet | Q45 | Box | Active | Retroreflective, Polarized | 236.220" (6m) | 5V ~ 15V | 5ms | - | Red (680nm) | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -40°C ~ 70°C |
|
Q2XAPLAF100-Q3SENSOR, ADJ FLD, 100MM, 10-30VDC |
4,754 |
|
Datasheet | Q2X | Bag | Active | Background Suppression | 0.709" ~ 3.937" (18mm ~ 100mm) | 10V ~ 30V | 850µs | PNP - Light-ON | Red (680nm) | Connector, M8 | IP67 | - | Adjustable, 3-Turn Potentiometer | -25°C ~ 50°C |
|

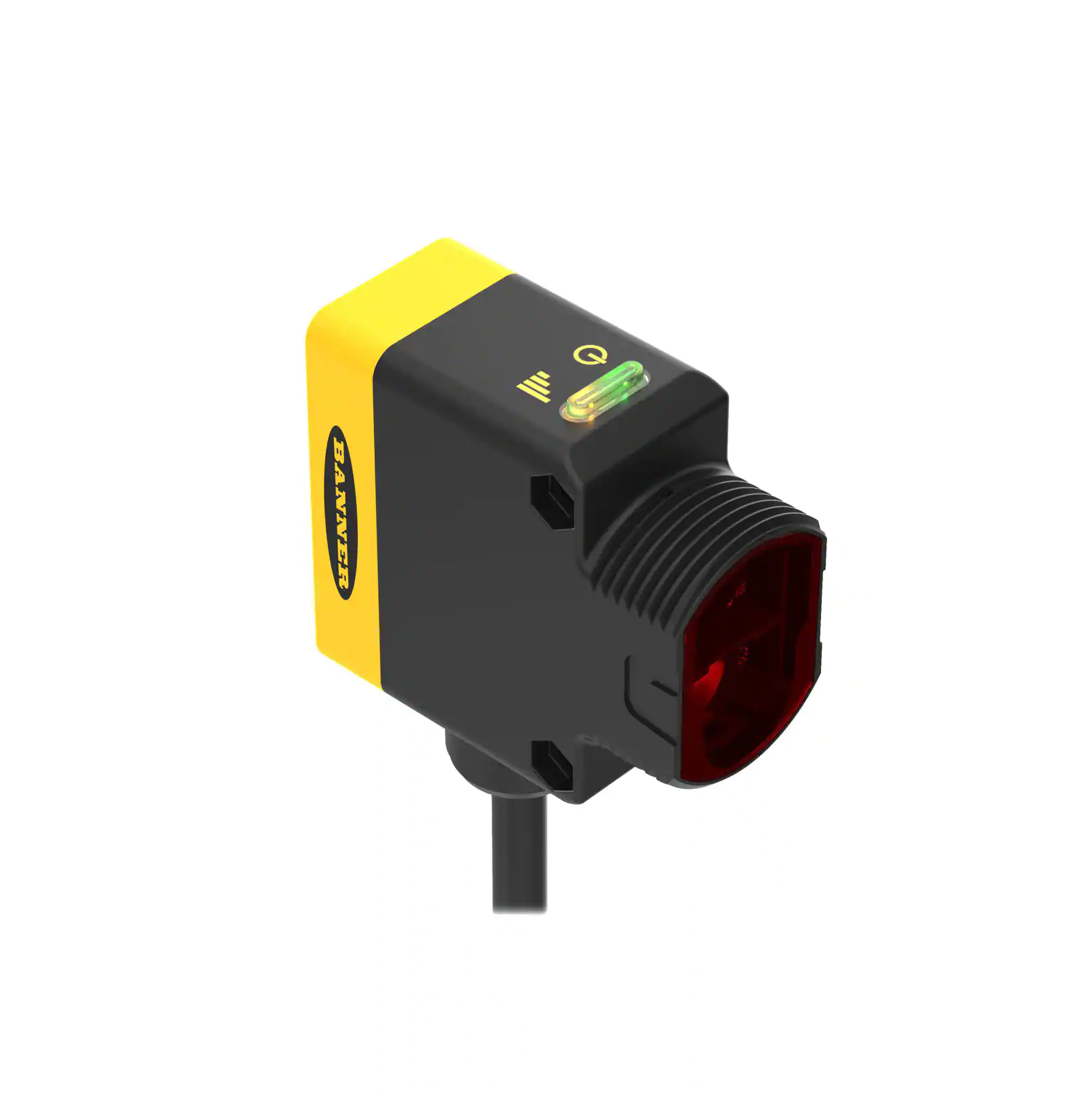

QS30VR3FF400 W/30RANGE: 400 MM; INPUT: 12-250V DC |
3,062 |
|
Datasheet | QS30 | Box | Active | Background Suppression | 15.748" (400mm) | 24 ~ 250VAC, 12 ~ 250VDC | 15ms | SPDT | Red (680nm) | Cable with Connector | NEMA 6P, IEC IP67 | 354.33" (9m) | - | -20°C ~ 70°C |
|
ITA23SFIBER OPPOSED MODE ANGLED TIP |
3,316 |
|
Datasheet | ITA2 | Box | Active | Through-Beam | - | - | - | - | - | - | - | - | - | 249°C |
|
SLM30B6SEN SLOT 30MM 1 NPN 1 PNP |
2,396 |
|
Datasheet | SLM | Box | Active | - | 1.181" (30mm) | 10V ~ 30V | 500µs | NPN/PNP - Dark-ON/Light-ON | LED | Cable | NEMA 6P, IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 60°C |
|
VTBP6LQCAP TOUCH SWITCH NO PNP |
1,032 |
|
Datasheet | VTB | Box | Active | - | - | 12V ~ 30V | 100ms | PNP | - | Connector | NEMA 1, 3, 4, 4X, 12, 13 IEC IP66 | - | - | -20°C ~ 50°C |
|
VTBP6LVTB SERIES: VERIFICATION TOUCH B |
4,974 |
|
Datasheet | VTB | Box | Active | - | - | 12V ~ 30V | 100ms | PNP | LED | Cable | NEMA 1, 3, 4, 4X, 12, 13 IEC IP66 | 78.74" (2m) | - | -20°C ~ 50°C |
|
Q45VR2LV W/30RANGE: 0.08 - 9 M; INPUT: 90-250 |
4,772 |
|
Datasheet | Q45 | Box | Active | Retroreflective, NonPolarized | 29.53' (9m) | 90VAC ~ 250VAC | 15ms | SPDT - Dark-ON/Light-ON | Red (680nm) | Cable | NEMA 6P, IEC IP67 | 354.33" (9m) | Adjustable, Potentiometer | -40°C ~ 70°C |
