Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM2A312DPHOTO SEN 380MM SPST |
3,117 |
|
Datasheet | MINI-BEAM® | Box | Active | Diffuse | 14.961" (380mm) | 24VAC ~ 240VAC | 8ms | Light-On/Dark-On | Red LED | Cable | NEMA 1, 2, 3, 3S, 4, 4X, 12, 13, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 70°C |
|
SLM50P6QSEN SLOT 50MM PNP |
2,587 |
|
Datasheet | SLM | Box | Active | - | 1.969" (50mm) | 10V ~ 30V | 500µs | PNP - Dark-ON/Light-ON | LED | Connector | NEMA 6P, IP67 | - | Adjustable, Potentiometer | -20°C ~ 60°C |
|
VTBP6RLVTB SERIES: VERIFICATION TOUCH B |
1,614 |
|
Datasheet | VTB | Box | Active | - | - | 12V ~ 30V | 100ms | PNP | LED | Cable | NEMA 1, 3, 4, 4X, 12, 13 IEC IP66 | 78.74" (2m) | - | -20°C ~ 50°C |
|
Q25RW3FF100Q1EZ-BEAM Q25 SERIES: FIXED FIELD< |
1,930 |
|
Datasheet | Q25 | Box | Active | Background Suppression | 3.937" (100mm) | 20 ~ 250 VAC | 16ms | Dark-On | LED | Connector | NEMA 6P IEC, IP69K | - | - | -40°C ~ 70°C |
|
Q25AW3FF25Q1EZ-BEAM Q25 SERIES: FIXED FIELD< |
3,934 |
|
Datasheet | Q25 | Box | Active | Background Suppression | 0.98" (25mm) | 20 ~ 250 VAC | 16ms | Light-On | LED | Connector | NEMA 6P IEC, IP69K | - | - | -40°C ~ 70°C |
|
SME312CVGQDMINI-BEAM EXPERT: VSBL. GREEN 52 |
2,912 |
|
Datasheet | SME312 | Box | Active | Convergent | 0.630" (16mm) | 10V ~ 30V | 500µs | NPN/PNP - Dark-ON/Light-ON - Selectable | Green LED | Connector | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67 | - | Adjustable | -20°C ~ 70°C |
|
SBAR1MULTI-BEAM: AMBIENT LIGHT RECEIV |
3,132 |
|
Datasheet | - | Box | Active | Fiber Optic | - | - | 10ms | - | - | - | - | - | - | - |
|

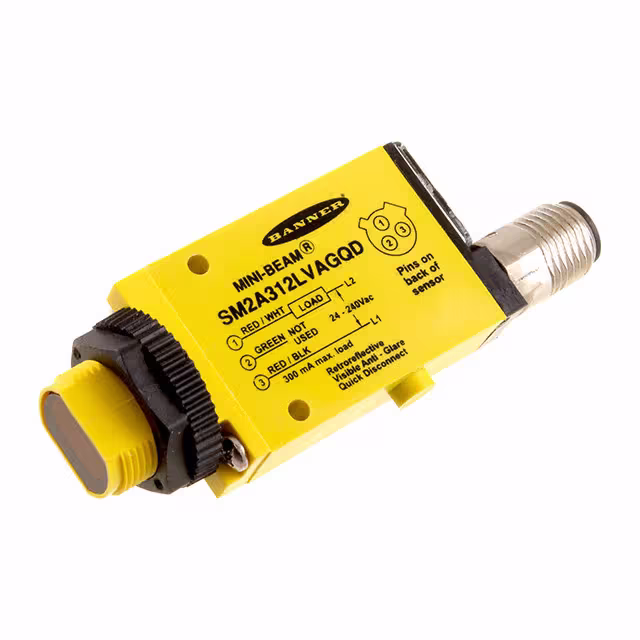

SM2A312LVAGQDPHOTO SEN 50MM-2M SPST |
1,259 |
|
Datasheet | MINI-BEAM® | Box | Active | Retroreflective, Polarized | 78.740" (2m) | 24VAC ~ 240VAC | 4ms | Light-On/Dark-On | Red LED | Connector | NEMA 1, 2, 3, 3S, 4, 4X, 12, 13, IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 70°C |
|
QS30ARXQPWORLD-BEAM QS30 SERIES: HIGH-POW |
3,621 |
|
Datasheet | QS30 | Box | Active | Through-Beam | 698.82' (213m) | 10V ~ 30V | 5ms | NPN/PNP - Light-ON | Infrared (875nm) | Connector | NEMA 6P, IEC IP67 | - | - | -20°C ~ 70°C |
|
SM2A312CMINI-BEAM: INFRARED 880 NM CONVE |
1,755 |
|
Datasheet | MINI-BEAM® | Box | Active | Convergent | 0.630" (16mm) | 24VAC ~ 240VAC | 4ms | SPST - Dark-ON/Light-ON | Infrared | Cable | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 70°C |
