Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM312CV2QDPHOTO SEN VISIBLE 43MM BIPOLAR |
2,228 |
|
Datasheet | MINI-BEAM® | Box | Active | Convergent | 1.693" (43mm) | 10V ~ 30V | 1ms | NPN/PNP - Dark-ON/Light-ON | Red LED | Connector | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 70°C |
|
SM2A31RQDPMINI-BEAM: RECEIVERRANGE: 3 |
1,579 |
|
Datasheet | MINI-BEAM® | Box | Active | Through-Beam | 11.811" (300mm) | 24VAC ~ 240VAC | 2ms | - | Infrared (880nm) | Connector | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 70°C |
|

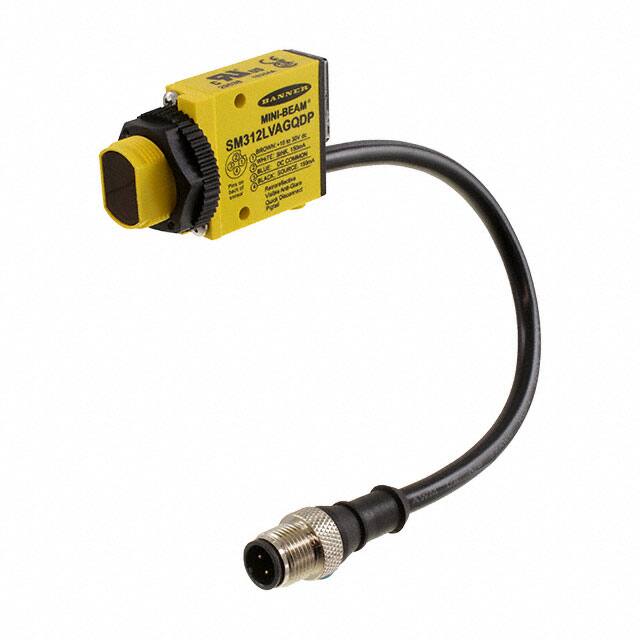

SM312LVAGQDPPHOTO SEN RETRO 50MM-2M BIPOLAR |
4,504 |
|
Datasheet | MINI-BEAM® | Box | Active | Retroreflective, Polarized | 78.740" (2m) | 10V ~ 30V | 1ms | NPN/PNP - Dark-ON/Light-ON | Red LED | Connector | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 70°C |
|
ITETA1.53SFIBER OPPOSED MODE |
4,570 |
|
Datasheet | ITETA1.5 | Box | Active | Through-Beam | - | - | - | - | - | - | - | - | - | 249°C |
|
Q45AD9LVQ45 NAMUR: RETRORANGE: 9 M; |
1,144 |
|
Datasheet | Q45 | Box | Active | Retroreflective, NonPolarized | 29.53' (9m) | 5V ~ 15V | 5ms | - | Red (680nm) | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -40°C ~ 70°C |
|
Q2XANLAF100-2MSENSOR, ADJ FLD, 100MM, 10-30VDC |
4,691 |
|
Datasheet | Q2X | Box | Active | Background Suppression | 0.709" ~ 3.937" (18mm ~ 100mm) | 10V ~ 30V | 850µs | NPN - Light-ON | Red (680nm) | Cable | IP67 | 78.74" (2m) | Adjustable, 3-Turn Potentiometer | -25°C ~ 50°C |
|

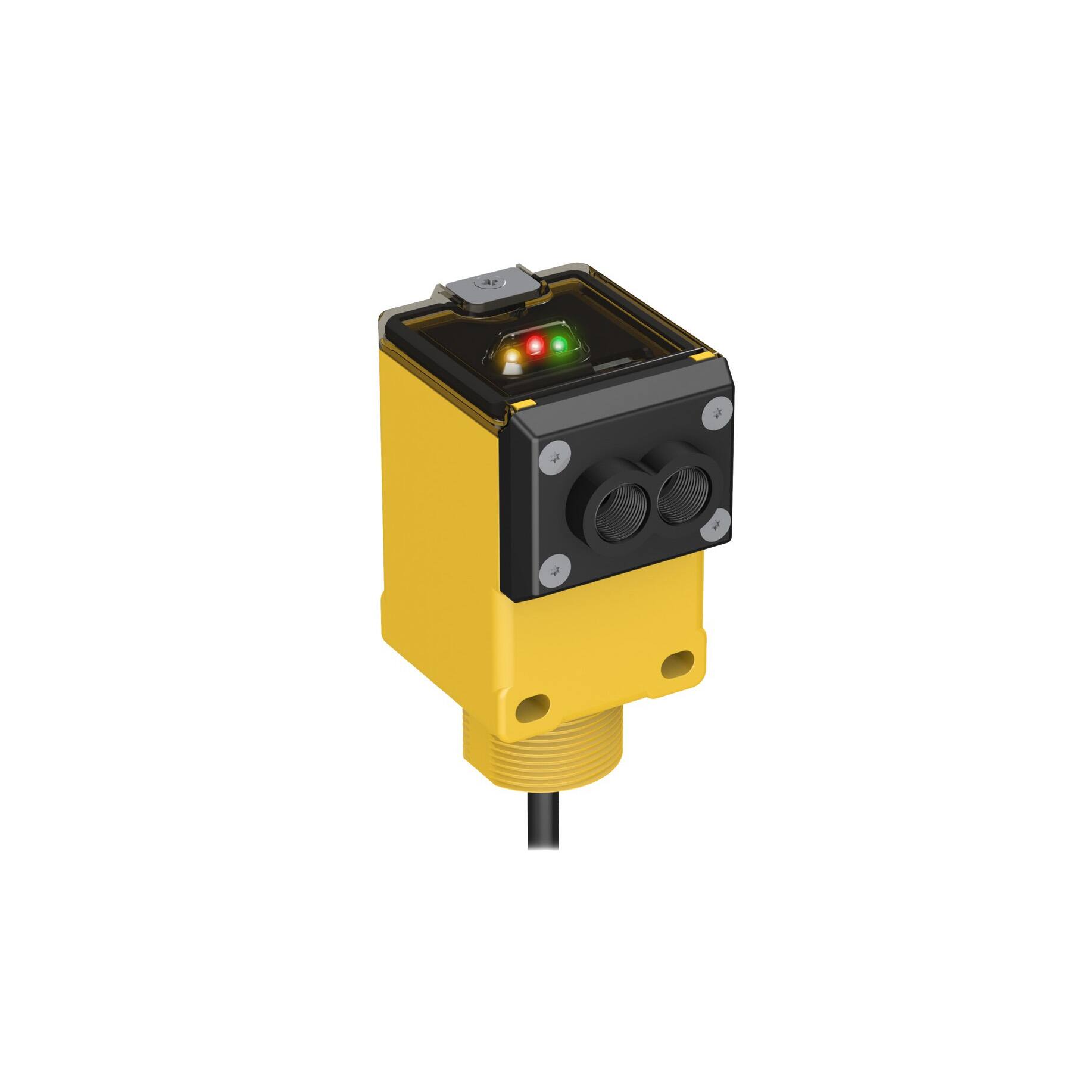

Q45BW13FQ45 SERIES: INFRARED GLASS FIBER |
4,306 |
|
Datasheet | Q45 | Box | Active | Fiber Optic | - | 24 ~ 250VAC, 12 ~ 250VDC | 2ms | SPST | Infrared (880nm) | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -25°C ~ 55°C |
|
S30SP6FF200 W/30RANGE: 200 MM; INPUT: 10-30V DC |
1,823 |
|
- |
S30 | Box | Active | - | 7.874" (200mm) | 10V ~ 30V | - | - | - | - | - | - | - | - |
|
QS18VN6LLPPHOTO SEN LASER 0.1-10MM NPN |
4,884 |
|
Datasheet | QS18 | Box | Active | Retroreflective, Polarized | 32.81' (10m) | 10V ~ 30V | 700µs | NPN - Dark-ON/Light-ON | LED | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -10°C ~ 50°C |
|
MIAD9LVQSEN PHOTO 5M NAMUR |
1,053 |
|
Datasheet | MIAD9 | Box | Active | Retroreflective, NonPolarized | 196.850" (5m) | 5V ~ 15V | 5ms | Light-On/Dark-On | Red (650nm) | Connector | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13 IEC IP67 | - | Adjustable, Potentiometer | -40°C ~ 70°C |
