Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSBDPHOTO SEN DIFFUSED 1.5M |
3,410 |
|
Datasheet | RSBD | Box | Active | Diffuse | 4.9' (1.50m) | - | 10ms | - | Infrared (880nm), RED (650nm) | - | - | - | - | - |
|

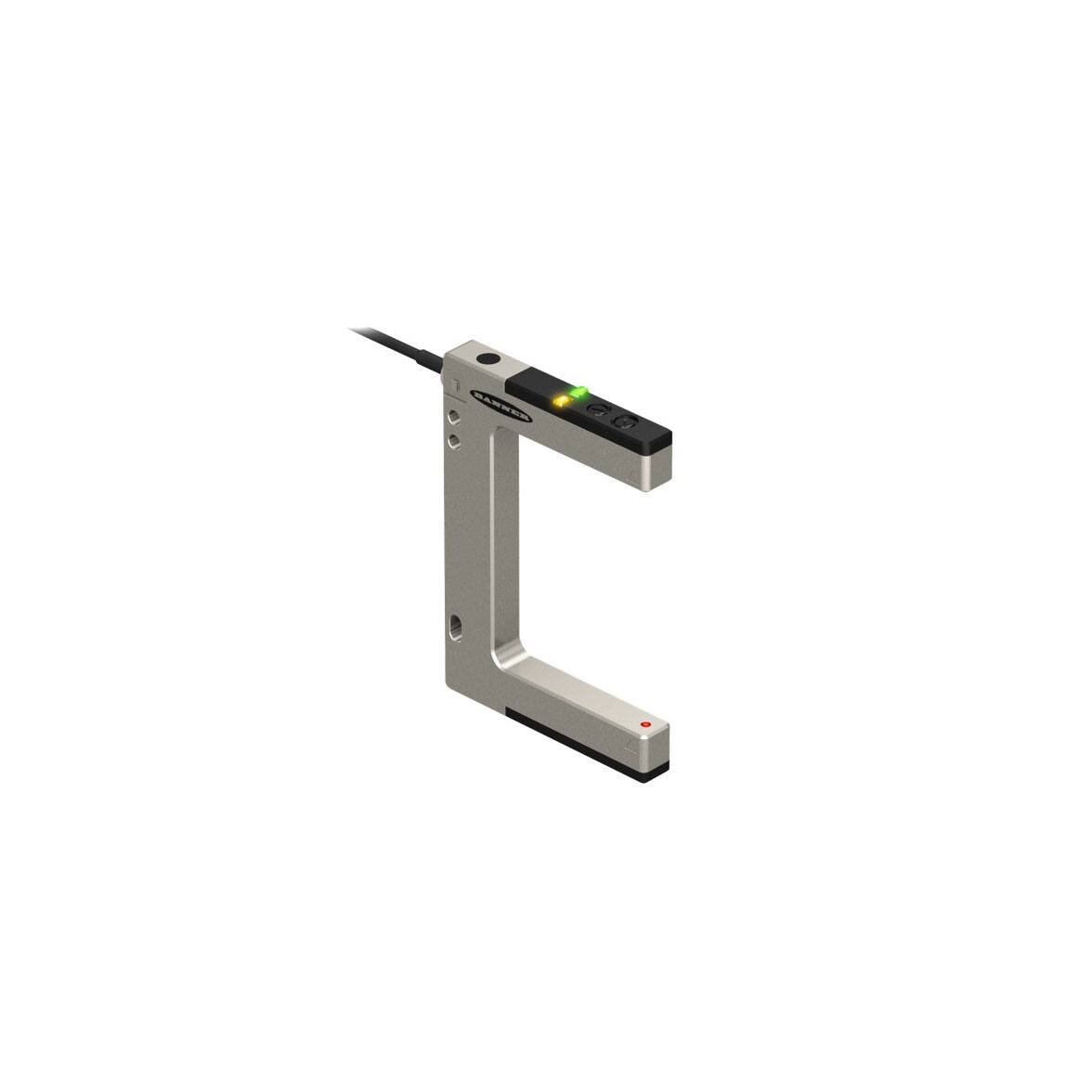

SLM80B6 W/30SLM SERIES: RUGGED NICKEL PLATED |
2,743 |
|
Datasheet | SLM | Box | Active | - | 3.150" (80mm) | 10V ~ 30V | 500µs | NPN/PNP - Dark-ON/Light-ON - Selectable | LED | Cable | NEMA 6P, IEC IP67 | 354.33" (9m) | Adjustable, Potentiometer | -20°C ~ 60°C |
|
QS18VN6LAFQ5PHOTO SEN 30-150MM NPN |
2,596 |
|
Datasheet | QS18 | Box | Active | Background Suppression | 5.906" (150mm) | 10V ~ 30V | 700µs | NPN - Dark-ON/Light-ON | Red (650nm) | Connector | NEMA 6P, IP67 | - | Adjustable | -10°C ~ 50°C |
|
Q26PXLPQ5PHOTO SEN CLEAR 0-0.8M PNP |
2,577 |
|
Datasheet | Q26 | Box | Active | Retroreflective, Polarized | 0.20" ~ 31.50" (5mm ~ 800mm) | 12V ~ 30V | 250µs | PNP | LED | Connector | IP67 | - | Adjustable, Potentiometer | -10°C ~ 55°C |
|
PIAT415UHFMTAPLASTIC FIBER, OPPOSED MODEC |
4,975 |
|
Datasheet | PIAT4 | Box | Active | Through-Beam | - | - | - | - | - | - | - | - | - | 70°C |
|
SMA91E W/30RANGE: 60 M; INPUT: 10-250V AC/D |
3,200 |
|
Datasheet | SM912 | Box | Active | Through-Beam | 196.85' (60m) | 10 ~ 250VAC, 10 ~ 250VDC | 4ms | - | Infrared (880nm) | Cable with Connector | NEMA 1, 2, 3, 3S, 4, 4X, 6, 6P, 12, 13 IEC IP66 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 70°C |
|
SM912DSRVALU-BEAM: DIFFUSERANGE: 380 |
4,584 |
|
Datasheet | SM912 | Box | Active | Diffuse | 14.961" (380mm) | 10V ~ 30V | 4ms | NPN/PNP - Dark-ON/Light-ON - Selectable | Infrared (880nm) | Cable | NEMA 1, 2, 3, 3S, 4, 4X, 6, 6P, 12, 13 IEC IP66 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 70°C |
|
R55FVWR55 COLOR MARK: GLASS FIBER W/ W |
3,282 |
|
Datasheet | R55F | Box | Active | Fiber Optic | - | 10V ~ 30V | 500µs | NPN/PNP | Blue LED | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable | -10°C ~ 55°C |
|
Q60VR3AFV1000Q1PHOTO SEN 200-1000MM SPST |
1,205 |
|
Datasheet | Q60 | Box | Active | Background Suppression | 39.370" (1m) | 12VDC ~ 250VDC, 24VAC ~ 250VAC | 15ms | SPST | Red LED | Connector | NEMA 6P, IP67 | - | Adjustable | -20°C ~ 55°C |
|
QM26VNRQ5QM26 WASHDOWN SERIES: RECEIVER |
1,807 |
|
Datasheet | QM26 | Box | Active | Through-Beam | 334.646" (8.5m) | 10V ~ 30V | 500µs | NPN - Dark-ON/Light-ON - Selectable | Red LED | Connector | IP69K | - | - | -30°C ~ 70°C |
