Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M12PFF75SENSOR RANGE 75MM PNP |
2,594 |
|
Datasheet | M12 | Box | Active | - | 2.953" (75mm) | 10V ~ 30V | 500µs | PNP | Red (680nm) | Cable | NEMA 6 IEC IP67, IEC IP68 | 78.74" (2m) | - | -20°C ~ 60°C |
|
T8RP6D100QT8 SERIES: DIFFUSERANGE: 100 |
4,472 |
|
Datasheet | T8 | Box | Active | Diffuse | 3.937" (100mm) | 10V ~ 30V | 1ms | PNP - Dark-ON | Red LED | Connector | NEMA 6P, IEC IP67 | - | - | -20°C ~ 55°C |
|
Q20NAF200QPHOTO SEN 200MM NPN |
4,609 |
|
Datasheet | Q20 | Box | Active | Background Suppression | 7.874" (200mm) | 10V ~ 30V | 2.8ms | NPN - Dark-ON/Light-ON | Red LED | Connector | NEMA 6P, IP67 | - | Adjustable, Potentiometer | -20°C ~ 60°C |
|
Q2XRPAF150-Q3SENSOR, ADJ FLD, 150MM, 10-30VDC |
4,044 |
|
Datasheet | Q2X | Box | Active | Background Suppression | 0.709" ~ 5.906" (18mm ~ 150mm) | 10V ~ 30V | 850µs | PNP - Dark-ON | Red (645nm) | Connector | IP67 | - | Adjustable, 3-Turn Potentiometer | -25°C ~ 50°C |
|
QS30FF600QPMAQS30FF600QPMA 5 PIN EURO 6 IN NO |
2,042 |
|
- |
QS30 | Box | Active | Background Suppression | 23.622" (600mm) | 10V ~ 30V | 2ms | NPN/PNP - Dark-ON/Light-ON - Selectable | Red (680nm) | Connector | NEMA 6P, IEC IP67 | - | - | -20°C ~ 70°C |
|
SM312FVPHOTO SEN VISIBLE RED NPN/PNP |
2,175 |
|
Datasheet | MINI-BEAM® | Box | Active | Fiber Optic | - | 10V ~ 30V | 1ms | NPN/PNP | LED | Cable | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 70°C |
|

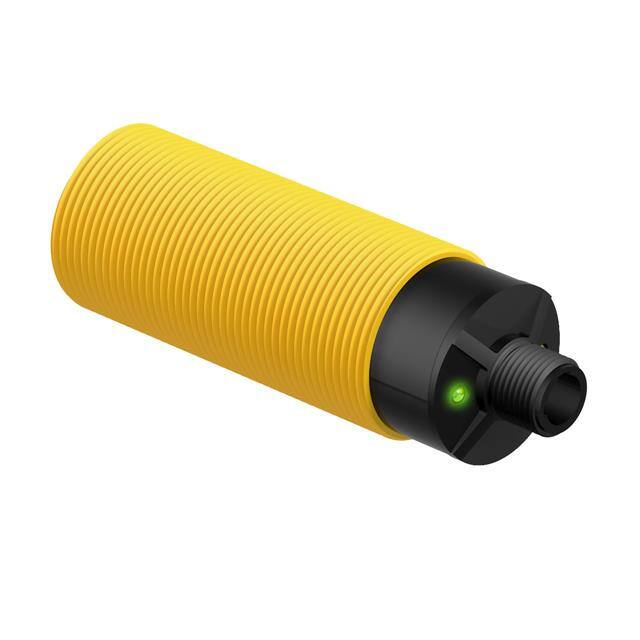

S30RW3RQ1EZ-BEAM S30 SERIES: RECEIVER |
3,866 |
|
Datasheet | S30 | Box | Active | Through-Beam | 196.85' (60m) | 20 ~ 250 VAC | 16ms | Dark-On | Infrared (950nm) | Connector | NEMA 6P IEC, IP69K | - | - | -40°C ~ 70°C |
|
Q45VR3RPHOTO SEN RECEIVER 60M SPST |
1,051 |
|
Datasheet | Q45 | Box | Active | Through-Beam | 196.85' (60m) | 12VDC ~ 250VDC, 24VAC ~ 250VAC | 15ms | SPDT | Infrared (880nm) | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable | -25°C ~ 55°C |
|
QS18VN6LDQ8PHOTO SEN LASER 300MM NPN |
3,758 |
|
Datasheet | QS18 | Bag | Active | Diffuse | 11.811" (300mm) | 10V ~ 30V | 700µs | NPN - Dark-ON/Light-ON | LED | Connector | NEMA 6P, IEC IP67 | - | Adjustable, Potentiometer | -10°C ~ 50°C |
|
QS18VN6LDPHOTO SEN LASER 300MM NPN |
4,208 |
|
Datasheet | QS18 | Box | Active | Diffuse | 11.811" (300mm) | 10V ~ 30V | 700µs | NPN - Dark-ON/Light-ON | LED | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -10°C ~ 50°C |
