Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4760MAGNETIC ENCODER PAIR KIT WITH T |
459 |
|
Datasheet | - | Bulk | Active | Magnetic | Digital | 12 | 2.7V - 18V | Shaft | No | No | Chassis Mount, Motors | Right Angle | Connector | - |
|
3542ROMI ENC PAIR KIT 12 CPR 3.5-18V |
217 |
|
Datasheet | - | - | Active | Magnetic | Digital, Quadtrature | 12 | 3.5V - 18V | External Magnet, Not Included | No | No | Servo Mount | Right Angle | Cable with Connector | - |
|
62AG15-L5-040CROTARY ENCODER OPTICAL 24PPR |
498 |
|
Datasheet | 62AG | Bulk | Active | Optical | Quadrature (Incremental) | 24 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Vertical | Cable with Connector | 1M |
|
HEDL-5600#H06ROTARY ENCODER OPTICAL 400PPR |
3,359 |
|
Datasheet | HEDL | Bulk | Active | Optical | Quadrature (Incremental) | 400 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Cable with Connector | - |
|
AMT312C-VROTARY ENCODER INCREMENT PROGPPR |
1,141 |
|
Datasheet | AMT31 | Bulk | Active | Incremental | Commutation | Programmable | 5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - |
|
AMT233A-VROTARY ENCODER ABS 4096PPR/12BIT |
2,629 |
|
Datasheet | AMT23 | Bulk | Active | Absolute | SSI | 4096 | 3.8V ~ 5.5V | - | No | No | Chassis Mount, Motors | Right Angle | Connector | - |
|

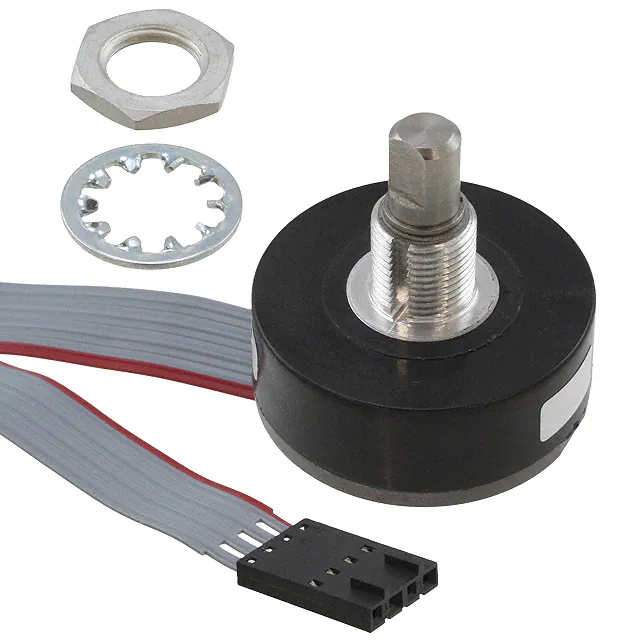

61K128-050ROTARY ENCODER OPT 128PPR 5" CBL |
4,511 |
|
Datasheet | 61K | Bulk | Active | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Flatted End | No | No | Panel Mount | Vertical | Cable with Connector | 10M |
|
RAMK060M11319LB659ROTATIONAL ABSOLUTE MAGNETIC KIT |
3,673 |
|
Datasheet | RAMK | Bulk | Active | Absolute, Magnetic, Multi-Turn | BiSS-C | 335,872 | 4.75V ~ 5.25V | - | No | No | Chassis Mount | User Selectable | Connector | - |
|
01039-2263ROTARY ENCODR INCREMENTAL 600PPR |
4,185 |
|
Datasheet | H20 | Box | Active | Incremental | Quadrature (Incremental) | 600 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
|
01039-3072ROTARY ENCODER OPTICAL 120PPR |
4,041 |
|
Datasheet | H20 | Box | Active | Optical | Quadrature (Incremental) | 120 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
|
01039-1392ROTARY ENCODR INCREMENTAL 500PPR |
4,605 |
|
Datasheet | H20 | Box | Active | Incremental | Quadrature with Index (Incremental) | 500 | 5V ~ 15V | Shaft | No | No | Chassis Mount | User Selectable | Cable with Connector | 1.5B |
|
|
01039-2863ROTARY ENCODER OPTICAL 500PPR |
4,188 |
|
Datasheet | H20 | Box | Active | Optical | Quadrature (Incremental) | 500 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
|
01039-2485ROTARY ENCODER OPTICAL 1024PPR |
2,436 |
|
Datasheet | XH20 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 1024 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
|
01057-206ROTARY ENCODR INCREMENT 2540PPR |
3,817 |
|
Datasheet | H20 | Box | Active | Incremental | Quadrature with Index (Incremental) | 2540 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 1.5B |
|
01070-881ROTARY ENCODER OPTICAL 32PPR |
1,363 |
|
Datasheet | XHS35 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 32 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Connector | 7.5B |
|
01002-7811ROTARY ENCODER OPTICAL 2500PPR |
1,520 |
|
Datasheet | XH25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 2500 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|

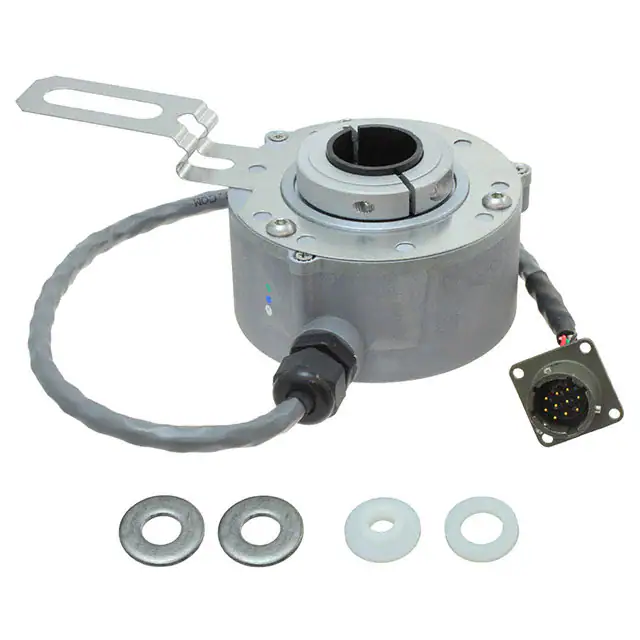

01072-081ROTARY ENCODER OPTICAL 1024PPR |
3,152 |
|
Datasheet | HS25 | Box | Active | Optical | Quadrature with Index (Incremental) | 1024 | 5V ~ 15V | Hole for Shaft | No | No | Chassis Mount, Motors | User Selectable | Connector | 7.5B |
|
|
01070-393ROTARY ENCODER OPTICAL 1024PPR |
2,200 |
|
Datasheet | XHS35 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 1024 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Connector | 7.5B |
|
|
01070-294ROTARY ENCODER OPTICAL 1024PPR |
4,544 |
|
Datasheet | XHS35 | Box | Active | Optical | Quadrature with Index (Incremental) | 1024 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Connector | 7.5B |
|
|
01070-552ROTARY ENCODER OPTICAL 5000PPR |
1,881 |
|
Datasheet | XHS35 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 5000 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Connector | 7.5B |
