Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMT213B-VROTARY ENCODR ABS 16384PPR/14BIT |
4,682 |
|
Datasheet | AMT21 | Box | Active | Absolute | RS-485 | 16384 | 3.8V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Right Angle | Connector | - |
|
AMT232B-VROTARY ENCODR ABS 16384PPR/14BIT |
2,358 |
|
Datasheet | AMT23 | Box | Active | Absolute | SSI | 16384 | 3.8V ~ 5.5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - |
|
AMT223B-VKIT AMT223B 14-BIT SPI ABSOLUTE |
2,189 |
|
Datasheet | AMT22 | Box | Active | Absolute | SPI | Programmable | 3.8V ~ 5.5V | Open Center | No | Yes | Chassis Mount, Motors | Right Angle | Connector | - |
|

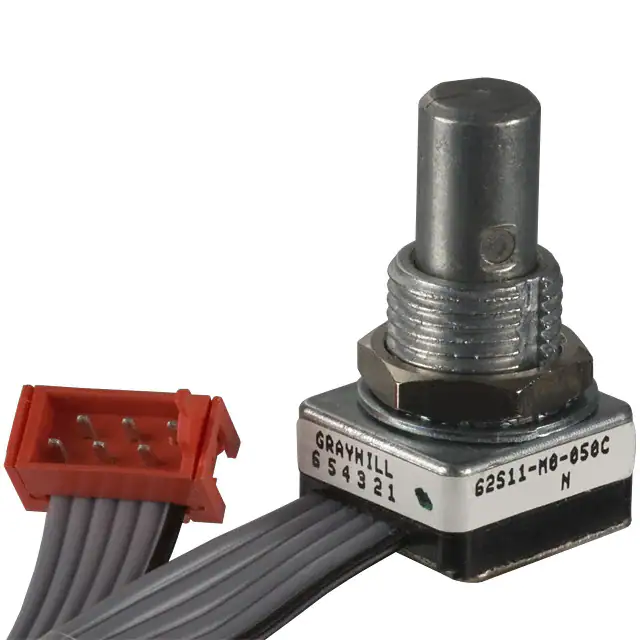

62S11-M5-050CROTARY ENCODER OPT 32PPR 5" CBL |
272 |
|
Datasheet | 62S | Bulk | Active | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Vertical | Cable with Connector | 1M |
|
AMT222C-VKIT, AMT222C, SPI ABSOLUTE ENCOD |
362 |
|
Datasheet | AMT22 | Box | Active | Absolute | SPI | - | 3.8V ~ 5.5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | 8K |
|
|
AMT212H-VKIT, AMT212H, RS-485, ABSOLUTE E |
3,572 |
|
Datasheet | AMT21 | Box | Active | Absolute | RS-485 | 16384 | 3.8V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - |
|
AMT222D-VKIT, AMT222D, SPI ABSOLUTE ENCOD |
326 |
|
Datasheet | AMT22 | Box | Active | Absolute | SPI | - | 3.8V ~ 5.5V | 2mm ~ 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | 4K |
|
|
AMT212D-VROTARY ENCODR ABS 16384PPR/14BIT |
100 |
|
Datasheet | AMT21 | Box | Active | Absolute | RS-485 | 16384 | 3.8V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Vertical | Connector | - |
|
HEDL-5540#A06ROTARY ENCODER OPTICAL 500PPR |
250 |
|
Datasheet | HEDL | Bulk | Active | Optical | Quadrature with Index (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Cable with Connector | - |
|
HEDL-5540#A13ROTARY ENCODER OPTICAL 500PPR |
125 |
|
Datasheet | HEDL | Bulk | Active | Optical | Quadrature with Index (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Cable with Connector | - |
|
HEDL-5540#A02ROTARY ENCODER OPTICAL 500PPR |
4,235 |
|
Datasheet | HEDL | Bulk | Active | Optical | Quadrature with Index (Incremental) | 500 | 5V | 3mm Open Center | No | No | Chassis Mount, Motors | Vertical | Cable with Connector | - |
|
62C1111-02-060CROTARY ENCODER OPTICAL 32PPR 6" |
136 |
|
Datasheet | 62C | Bulk | Active | Optical | Quadrature (Incremental) | 32 | 5V | Concentric | Yes | Yes | Panel Mount | Vertical | Cable with Connector | 1M |
|
62AG11-L0-020CROTARY ENCODER OPTICAL 32PPR |
4,767 |
|
Datasheet | 62AG | Bulk | Active | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | Panel Mount | Vertical | Cable with Connector | 1M |
|
RES20D-50-201-1ROTARY ENCODER OPTICAL 50PPR |
142 |
|
Datasheet | RE | Tray | Active | Optical | Quadrature (Incremental) | 50 | 5V | Shaft | No | No | Panel Mount | User Selectable | Wire Leads | - |
|
62AG11-L5-060CROTARY ENCODER OPT 32PPR 6" CBL |
130 |
|
Datasheet | 62AG | Bulk | Active | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Vertical | Cable with Connector | 1M |
|

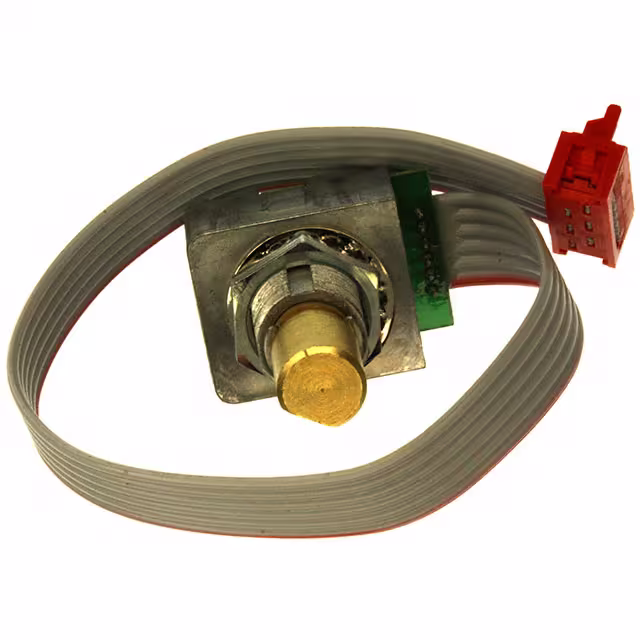

C14N32P-B3ROTARY ENCODER OPTICAL 8PPR |
142 |
|
Datasheet | C14 | Box | Active | Optical | Quadrature (Incremental) | 8 | 5V | 1/4" Dia Flatted End | No | Yes | Panel Mount | Right Angle | Cable with Connector | 1M |
|
62SG22-M5-060CROTARY ENCODER OPTICAL 16PPR |
293 |
|
Datasheet | 62SG | Bulk | Active | Incremental | Gray Code (Absolute) | 16 | 5V | 6.32mm Dia Flatted End | Yes | Yes | Panel Mount | User Selectable | Cable with Connector | 1M |
|
AMT122S-VKIT, AMT122S, INCREMENTAL ENCODE |
206 |
|
Datasheet | AMT12 | Box | Active | Incremental | Quadrature (Incremental) | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Horizontal | Connector | - |
|
RMS20-256-201-1ROTARY ENCODER MAGNETIC 256PPR |
1,917 |
|
Datasheet | RMS20 | Tray | Active | Magnetic | Quadrature (Incremental) | 256 | 5V | Shaft | No | No | Panel Mount | User Selectable | Wire Leads | 100K |
|
AS22-M570-4T12ROTARY ENCODR INCREMENT 2000PPR |
259 |
|
Datasheet | AS22 | Bulk | Active | Incremental | Differential Voltage | 2000 | 4.5V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Connector | - |
