Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMT333D-VKIT, AMT333D, COMMUTATION ENCODE |
3,487 |
|
Datasheet | AMT33 | Box | Active | Incremental | Commutation | Programmable | 4.5V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Right Angle | Connector | - |
|
62A22-01-040CHROTARY ENCODER OPTICAL 16PPR |
3,518 |
|
Datasheet | 62A | Bulk | Active | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | No | Panel Mount | User Selectable | Cable with Connector | 1M |
|
AMT213A-VROTARY ENCODER ABS 4096PPR/12BIT |
1,139 |
|
Datasheet | AMT21 | Box | Active | Absolute | RS-485 | 4096 | 3.8V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Right Angle | Connector | - |
|
|
AMT213C-VROTARY ENCODER ABS 4096PPR/12BIT |
1,595 |
|
Datasheet | AMT21 | Bulk | Active | Absolute | RS-485 | 4096 | 3.8V ~ 5.5V | Open Center | No | No | Chassis Mount, Motors | Right Angle | Connector | - |
|

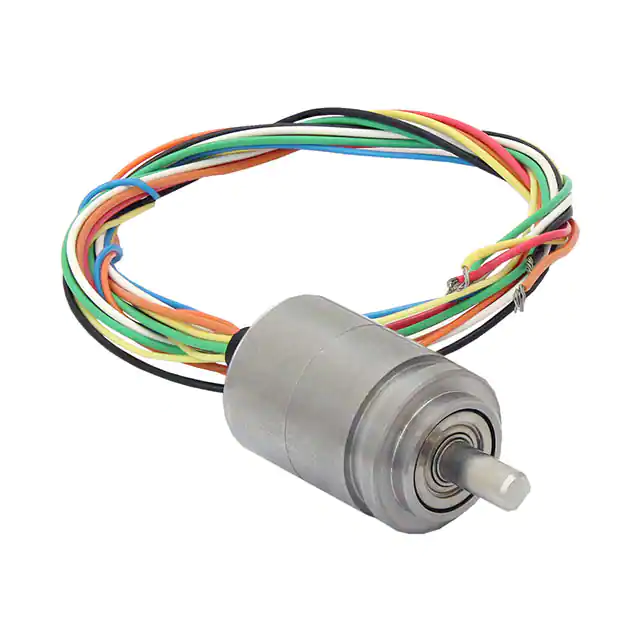

RAME012M11114JBROTATIONAL ABSOLUTE MAGNETIC ENC |
3,536 |
|
Datasheet | - | Box | Active | Absolute, Magnetic | Binary (Absolute), SSI | 16384 | 4.75V ~ 5.25V | Shaft | No | No | Panel Mount | User Selectable | Wire Leads | - |
|
AS22-M560-4G12ROTARY ENCODR INCREMENTAL 360PPR |
297 |
|
Datasheet | AS22 | Bulk | Active | Incremental | Voltage | 360 | 4.5V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Connector | - |
|
|
AS22-M520-5G12ROTARY ENCODR INCREMENTAL 360PPR |
292 |
|
Datasheet | AS22 | Bulk | Active | Incremental | Voltage | 360 | 4.5V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Connector | - |
|
AS22-M570-4G12ROTARY ENCODR INCREMENTAL 360PPR |
299 |
|
Datasheet | AS22 | Bulk | Active | Incremental | Differential Voltage | 360 | 4.5V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Connector | - |
|
HRPG-AD32#13CROTARY ENCODER OPTICAL 32PPR |
150 |
|
Datasheet | HRPG | Bulk | Active | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | Yes | No | Panel Mount | Vertical | Cable with Connector | 1M |
|
RE12D-200-201-1ROTARY ENCODER OPTICAL 200PPR |
1,570 |
|
Datasheet | RE12D | Tray | Active | Optical | Quadrature (Incremental) | 200 | 5V | Shaft | No | No | Chassis Mount | User Selectable | Wire Leads | - |
|
HEDL-5540#A14ROTARY ENCODER OPTICAL 500PPR |
4,642 |
|
Datasheet | HEDL | Bulk | Active | Optical | Quadrature with Index (Incremental) | 500 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Cable with Connector | - |
|
|
AMT242C-VKIT, AMT242C, 12-BIT RS-485 ABSO |
100 |
|
Datasheet | AMT24 | Box | Active | Absolute | RS-485 | 3 | 3.8V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | Right Angle | Connector | - |
|
|
HRPG-ASCA#13CROTARY ENCODER OPTICAL 120PPR |
125 |
|
Datasheet | HRPG | Bulk | Active | Optical | Quadrature (Incremental) | 120 | 5V | 1/4" Dia Flatted End | No | No | Panel Mount | Vertical | Cable with Connector | 1M |
|
|
AMT242D-VKIT, AMT242D, 14-BIT RS-485 ABSO |
3,000 |
|
Datasheet | AMT24 | Box | Active | Absolute | RS-485 | 3 | 3.8V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | Right Angle | Connector | - |
|
|
AMT242A-VKIT, AMT242A, 12-BIT RS-485 ABSO |
4,082 |
|
Datasheet | AMT24 | Box | Active | Absolute | RS-485 | 3 | 3.8V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | Right Angle | Connector | - |
|
|
HEDL-5640#A06ROTARY ENCODER OPTICAL 500PPR |
2,734 |
|
Datasheet | HEDL | Bulk | Active | Optical | Quadrature with Index (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Cable with Connector | - |
|
HEDL-5605#A06ROTARY ENCODER OPTICAL 500PPR |
2,099 |
|
Datasheet | HEDL | Tray | Active | Optical | Quadrature (Incremental) | 500 | 5V | 1/4" Open Center | No | No | Chassis Mount, Motors | Vertical | Cable with Connector | - |
|
|
AMT242B-VKIT, AMT242B, 14-BIT RS-485 ABSO |
2,926 |
|
Datasheet | AMT24 | Box | Active | Absolute | RS-485 | 3 | 3.8V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | Right Angle | Connector | - |
|
ACW400-0270-001ACW4 MOD 15-30V ANALOG RADIAL CA |
175 |
|
Datasheet | ACW4 | Bulk | Active | Absolute | - | - | 5V ~ 30V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Cable | - |
|
4761MAGNETIC ENCODER PAIR KIT WITH S |
691 |
|
Datasheet | - | Bulk | Active | Magnetic | Digital | 12 | 2.7V - 18V | Shaft | No | No | Chassis Mount, Motors | Right Angle | Connector | - |
