Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3517/23 100SFCBL RIBN 23COND 0.05 GRAY 100' |
3,983 |
|
Datasheet | 3517 | Bulk | Active | Flat Cable, Flat Jacket | 23 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
3539/20 300CBL RIBN 20COND 0.05 GRAY 300' |
3,422 |
|
Datasheet | 3539 | Spool | Active | Flat Cable | 20 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|

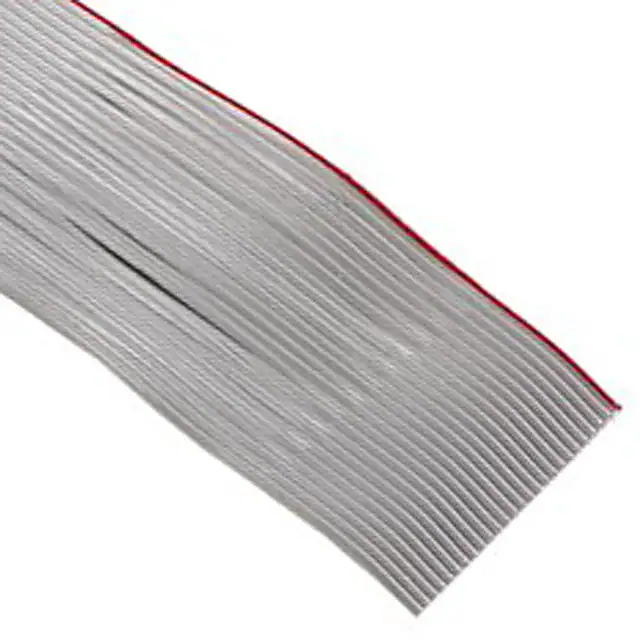

3667/10 300CBL RIBN 10COND 0.05 GRAY 300' |
4,161 |
|
Datasheet | 3667 | Spool | Active | Flat Cable, Split Conductor | 10 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3667/26 100CBL RIBN 26COND 0.05 GRAY 100' |
1,539 |
|
Datasheet | 3667 | Spool | Active | Flat Cable, Split Conductor | 26 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.300" (33.02mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
3667/64 300CBL RIBN 64COND 0.05 GRAY 300' |
2,215 |
|
Datasheet | 3667 | Spool | Active | Flat Cable, Split Conductor | 64 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
3709/10 100CBL RIBN 10COND 0.05 GRAY 100' |
1,456 |
|
Datasheet | 3709 | Bulk | Obsolete | Flat Cable | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | Solid | Unshielded | Gray | 0.033" (0.84mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
3709/14 100CBL RIBN 14COND 0.05 GRAY 100' |
3,638 |
|
Datasheet | 3709 | Bulk | Obsolete | Flat Cable | 14 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | Solid | Unshielded | Gray | 0.033" (0.84mm) | 0.700" (17.78mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
3709/15 100CBL RIBN 15COND 0.05 GRAY 100' |
4,821 |
|
Datasheet | 3709 | Bulk | Obsolete | Flat Cable | 15 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | Solid | Unshielded | Gray | 0.033" (0.84mm) | 0.750" (19.05mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
3709/16 100CBL RIBN 16COND 0.05 GRAY 100' |
4,190 |
|
Datasheet | 3709 | Bulk | Obsolete | Flat Cable | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | Solid | Unshielded | Gray | 0.033" (0.84mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
3709/18 100CBL RIBN 18COND 0.05 GRAY 100' |
1,489 |
|
Datasheet | 3709 | Bulk | Obsolete | Flat Cable | 18 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | Solid | Unshielded | Gray | 0.033" (0.84mm) | 0.900" (22.86mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
