Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
3659/15 500SFCBL RIBN 15COND 0.05 BLACK 500' |
4,246 |
|
Datasheet | 3659 | Bulk | Discontinued at Digi-Key | Flat Cable, Round Jacket | 15 | 0.050" (1.27mm) | 500.0' (152.40m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 0.700" (17.78mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Splice Free, Zippable |
|
3801/11 300CBL RIBN 11COND 0.05 GRAY 300' |
4,486 |
|
Datasheet | 3801 | Spool | Active | Flat Cable | 11 | 0.050" (1.27mm) | 300.0' (91.44m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
90104/15 100SFCBL RIBN 15COND 0.05 NATU 100' |
4,693 |
|
Datasheet | 90104 | Spool | Active | Flat Cable, Flat Jacket | 15 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Natural | 0.110" (2.79mm) | 0.860" (21.84mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | - | UL E118773 | Splice Free |
|
90204/64 100CBL RIBN 64COND 0.05 GRAY 100' |
1,008 |
|
Datasheet | 90204 | Bulk | Active | Flat Cable, Flat Jacket | 64 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 38 AWG | Shielded | Gray | 0.070" (1.78mm) | 3.240" (82.30mm) | Thermoplastic Elastomer (TPE) | 150 V | - | - | -20°C ~ 105°C | UL E42769 | - |
|
90211/20 100SFCBL RIBN 20COND 0.025 GRAY 100' |
1,960 |
|
Datasheet | 90211 | Bulk | Active | Flat Cable, Flat Jacket | 20 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | Solid | Shielded | Gray | 0.100" (2.54mm) | 0.622" (15.80mm) | Thermoplastic Elastomer (TPE) | 150 V | - | - | -20°C ~ 105°C | UL E42769 | Splice Free |
|
90211/36 100CBL RIBN 36COND 0.025 GRAY 100' |
1,776 |
|
Datasheet | 90211 | Bulk | Active | Flat Cable, Flat Jacket | 36 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | Solid | Shielded | Gray | 0.100" (2.54mm) | 1.020" (25.91mm) | Thermoplastic Elastomer (TPE) | 150 V | - | - | -20°C ~ 105°C | UL E42769 | - |
|
C3476/10 100CBL RIBN 10COND 0.05 GRAY 100' |
2,003 |
|
Datasheet | 3476 | Bulk | Obsolete | Flat Cable, Ground Plane | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.047" (1.19mm) | 0.750" (19.05mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2682 | - |
|
|
C3476/40 100CBL RIBN 40COND 0.05 GRAY 100' |
3,687 |
|
Datasheet | 3476 | Bulk | Obsolete | Flat Cable, Ground Plane | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.047" (1.19mm) | 2.250" (57.15mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2682 | - |
|

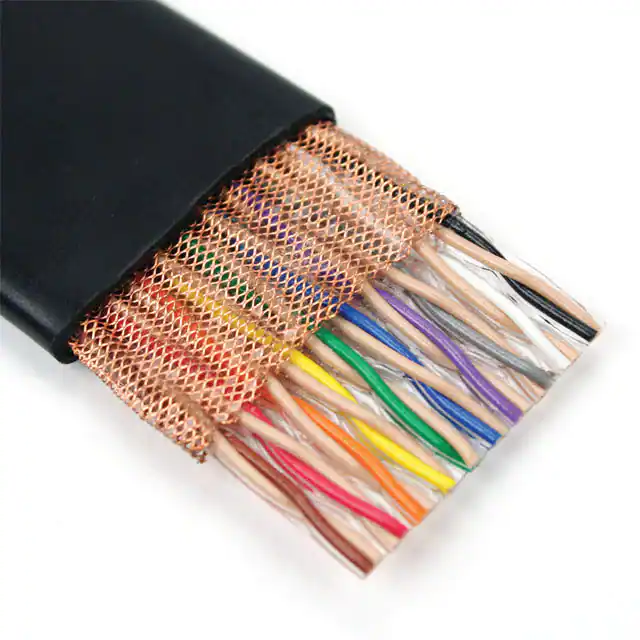

1785/60 100CBL RIBN 60COND TWIST PAIR 100' |
3,427 |
|
Datasheet | 1785 | Spool | Active | Flat Twisted Pair, Flat Jacket | 60 (30 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 3.130" (79.50mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
|
1785/64 100SFCBL RIBN 64COND TWIST PAIR 100' |
1,074 |
|
Datasheet | 1785 | Spool | Active | Flat Twisted Pair, Flat Jacket | 64 (32 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 3.380" (85.85mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
