Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C3625/50 100MCBL RIBN 50COND 0.039 GRY 328.1' |
2,642 |
|
Datasheet | 3625 | Spool | Active | Flat Cable | 50 | 0.039" (1.00mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.969" (50.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
C3756/34 100CBL RIBN 34COND 0.025 GRAY 100' |
1,284 |
|
Datasheet | 3756 | Bulk | Active | Flat Cable | 34 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.025" (0.64mm) | 0.850" (21.59mm) | Thermoplastic Elastomer (TPE) | 150 V | - | - | -40°C ~ 105°C | UL Style 20297 | - |
|
C3756/60 100CBL RIBN 60COND 0.025 GRAY 100' |
1,493 |
|
Datasheet | 3756 | Bulk | Active | Flat Cable | 60 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.025" (0.64mm) | 1.500" (38.10mm) | Thermoplastic Elastomer (TPE) | 150 V | - | - | -40°C ~ 105°C | UL Style 20297 | - |
|

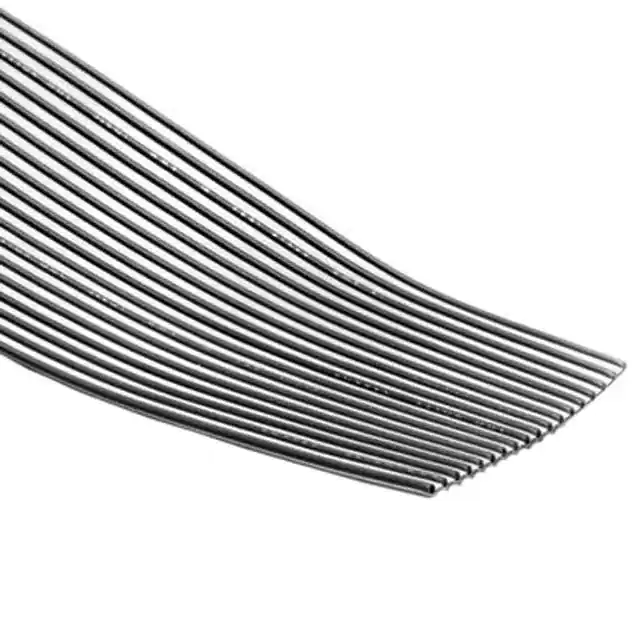

C8132/09 100CBL RIBN 9COND 0.156 GRAY 100' |
2,614 |
|
Datasheet | 8132 | Spool | Active | Flat Cable | 9 | 0.156" (3.96mm) | 100.0' (30.48m) | 18 AWG | 19 Strands / 30 AWG | Unshielded | Gray | 0.077" (1.96mm) | 1.344" (34.14mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
|
C8132/10 100CBL RIBN 10COND 0.156 GRAY 100' |
3,591 |
|
Datasheet | 8132 | Spool | Active | Flat Cable | 10 | 0.156" (3.96mm) | 100.0' (30.48m) | 18 AWG | 19 Strands / 30 AWG | Unshielded | Gray | 0.077" (1.96mm) | 1.500" (38.10mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
3319/16 100SFCBL RIBN 16COND 0.05 BLACK 100' |
1,113 |
|
Datasheet | 3319 | Bulk | Active | Flat Cable | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
3758/24 275CBL RIBN 24COND 0.05 GRAY 275' |
1,793 |
|
Datasheet | 3758 | Spool | Active | Flat Cable, Round Jacket | 24 | 0.050" (1.27mm) | 275.0' (83.82m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | - | 1.150" (29.21mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Zippable |
|
3782-5P-270A 100FTCBL RIBN 10COND TWIST PAIR 100' |
4,625 |
|
- |
3782 | Spool | Obsolete | Flat Twisted Pair | 10 (5 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | - | Zippable |
|
|
3782-7P-270A 100FTCBL RIBN 14COND TWIST PAIR 100' |
4,748 |
|
- |
3782 | Spool | Obsolete | Flat Twisted Pair | 14 (7 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 0.700" (17.78mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | - | Zippable |
|
|
3782-8P-270A 100FTCBL RIBN 16COND TWIST PAIR 100' |
4,866 |
|
- |
3782 | Spool | Obsolete | Flat Twisted Pair | 16 (8 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | - | Zippable |
