Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

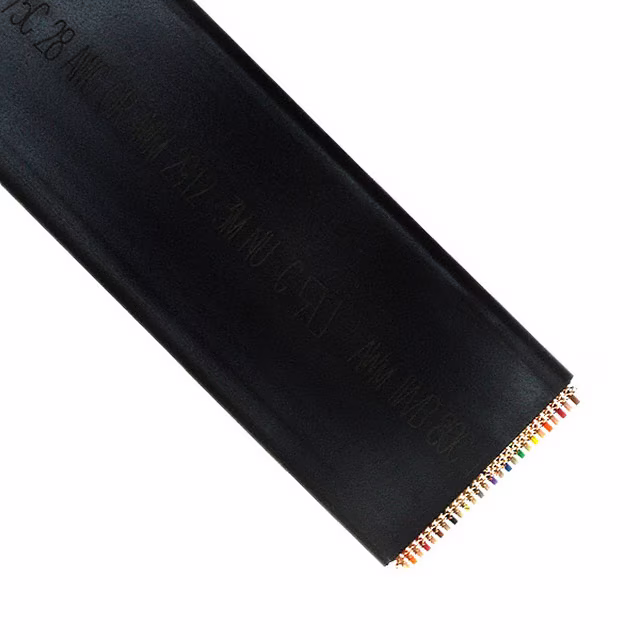

1785/26 100SFCBL RIBN 26COND TWIST PAIR 100' |
300 |
|
Datasheet | 1785 | Spool | Active | Flat Twisted Pair, Flat Jacket | 26 (13 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 1.430" (36.32mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
3625/50SF 100MCBL RIBN 50COND 0.039 GRY 328.1' |
200 |
|
Datasheet | 3625 | Spool | Active | Flat Cable | 50 | 0.039" (1.00mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.969" (50.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3517/34 100CBL RIBN 34COND 0.05 GRAY 100' |
300 |
|
Datasheet | 3517 | Spool | Active | Flat Cable, Flat Jacket | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 1.830" (46.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
|
|
3517/50 100SFCBL RIBN 50COND 0.05 GRAY 100' |
400 |
|
Datasheet | 3517 | Spool | Active | Flat Cable, Flat Jacket | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 2.630" (66.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|

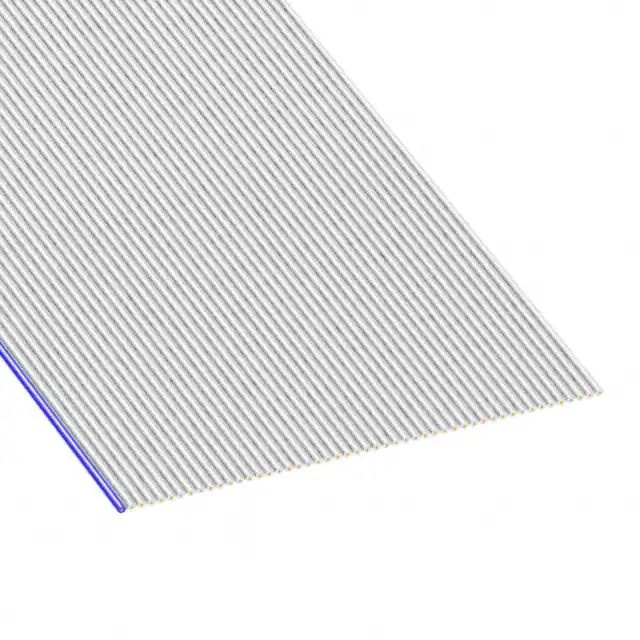

3609/50 100CBL RIBN 50COND 0.025 WHITE 100' |
600 |
|
Datasheet | 3609 | Spool | Active | Flat Cable | 50 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | White | 0.024" (0.61mm) | 1.250" (31.75mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 150°C | UL Style 20726 | - |
|
3250/34SF 100MCBL RIBN 34COND 0.039 BLK 328.1' |
200 |
|
Datasheet | 3250 | Spool | Active | Flat Cable | 34 | 0.039" (1.00mm) | 328.1' (100.00m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.339" (34.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | Splice Free |
|
|
3250/44 100MCBL RIBN 44COND 0.039 BLK 328.1' |
200 |
|
Datasheet | 3250 | Spool | Active | Flat Cable | 44 | 0.039" (1.00mm) | 328.1' (100.00m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.732" (43.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | - |
|
|
3250/44SF 100MCBL RIBN 44COND 0.039 BLK 328.1' |
200 |
|
Datasheet | 3250 | Spool | Active | Flat Cable | 44 | 0.039" (1.00mm) | 328.1' (100.00m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.732" (43.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | Splice Free |
|
3609/100 100CBL RIBN 100COND 0.025 WHT 100' |
800 |
|
Datasheet | 3609 | Spool | Active | Flat Cable | 100 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | White | 0.024" (0.61mm) | 2.500" (63.50mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 150°C | UL Style 20726 | - |
|
C3801/10 100CBL RIBN 10COND 0.05 GRAY 100' |
2,345 |
|
Datasheet | 3801 | Spool | Active | Flat Cable | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.039" (0.99mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
