Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3659/14 100SFCBL RIBN 14COND 0.05 BLACK 100' |
2,700 |
|
Datasheet | 3659 | Spool | Active | Flat Cable, Round Jacket | 14 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 0.650" (16.51mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Splice Free, Zippable |
|
3759/34 100SFCBL RIBN 34COND 0.05 BLACK 100' |
3,500 |
|
Datasheet | 3759 | Spool | Active | Flat Cable, Round Jacket | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | - | 1.650" (41.91mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 20267 | Splice Free, Zippable |
|

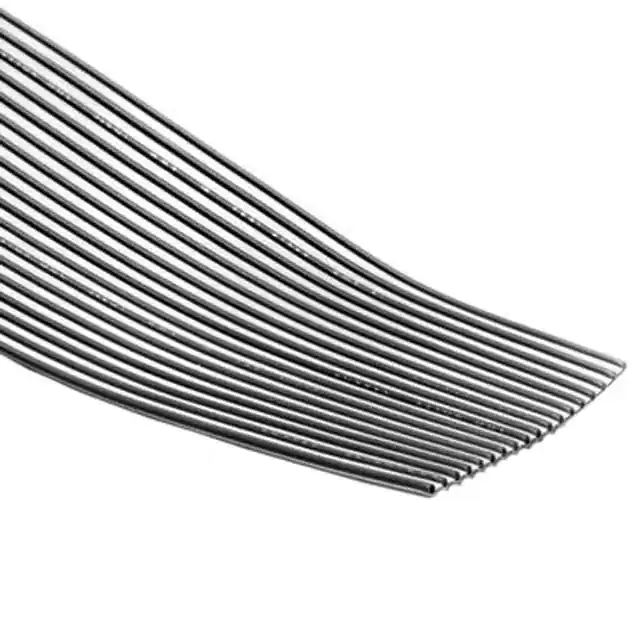

8132/08 100CBL RIBN 8COND 0.156 GRAY 100' |
400 |
|
Datasheet | 8132 | Spool | Active | Flat Cable | 8 | 0.156" (3.96mm) | 100.0' (30.48m) | 18 AWG | 19 Strands / 30 AWG | Unshielded | Gray | 0.077" (1.96mm) | 1.188" (30.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL E42769 | Zippable |
.jpg)
|
1700/50 100CBL RIBN 50COND TWIST PAIR 100' |
800 |
|
Datasheet | 1700 | Spool | Active | Flat Twisted Pair | 50 (25 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | - |
|
3517/9 100SFCBL RIBN 9COND 0.05 GRAY 100' |
1,000 |
|
Datasheet | 3517 | Spool | Active | Flat Cable, Flat Jacket | 9 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 0.580" (14.73mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
|

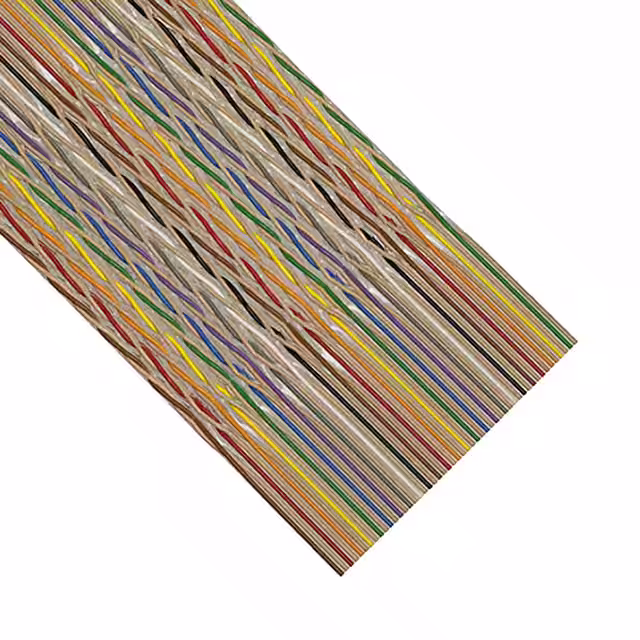

1700/50 100SFCBL RIBN 50COND TWIST PAIR 100' |
1,500 |
|
Datasheet | 1700 | Spool | Active | Flat Twisted Pair | 50 (25 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free |
|
3759/50 100SFCBL RIBN 50COND 0.05 BLACK 100' |
400 |
|
Datasheet | 3759 | Spool | Active | Flat Cable, Round Jacket | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | - | 2.450" (62.23mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 20267 | Splice Free, Zippable |
|
8124/16 100CBL RIBN 16COND 0.1 GRAY 100' |
300 |
|
Datasheet | 8124 | Spool | Active | Flat Cable | 16 | 0.100" (2.54mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 30 AWG | Unshielded | Gray | 0.060" (1.52mm) | 1.568" (39.83mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E42769 | Zippable |
.jpg)
|

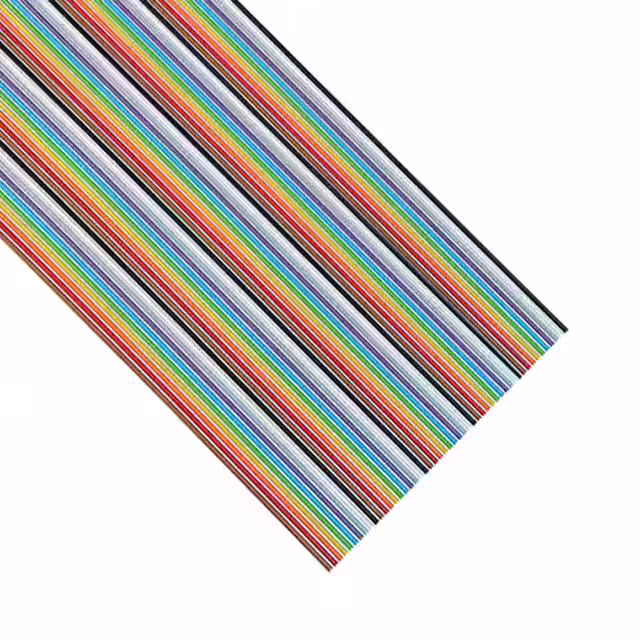

3302/50 100SFCBL RIBN 50COND 0.05 MULTI 100' |
400 |
|
Datasheet | 3302 | Spool | Active | Flat Cable | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free, Zippable |
.jpg)
|
3302/64 300SFCBL RIBN 64COND 0.05 MULTI 300' |
600 |
|
Datasheet | 3302 | Spool | Active | Flat Cable | 64 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free, Zippable |
