Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

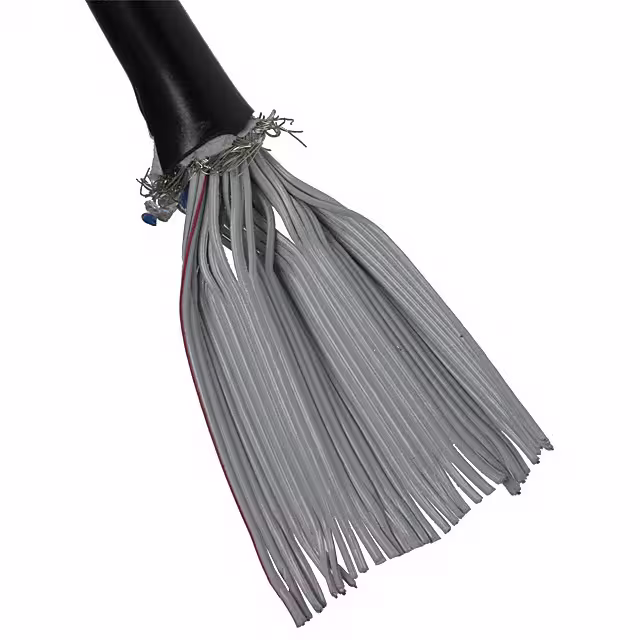

3659/34 100SFCBL RIBN 34COND 0.05 BLACK 100' |
300 |
|
Datasheet | 3659 | Spool | Active | Flat Cable, Round Jacket | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 1.650" (41.91mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Splice Free, Zippable |
|
3517/16 100CBL RIBN 16COND 0.05 GRAY 100' |
500 |
|
Datasheet | 3517 | Spool | Active | Flat Cable, Flat Jacket | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 0.930" (23.62mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
.jpg)
|

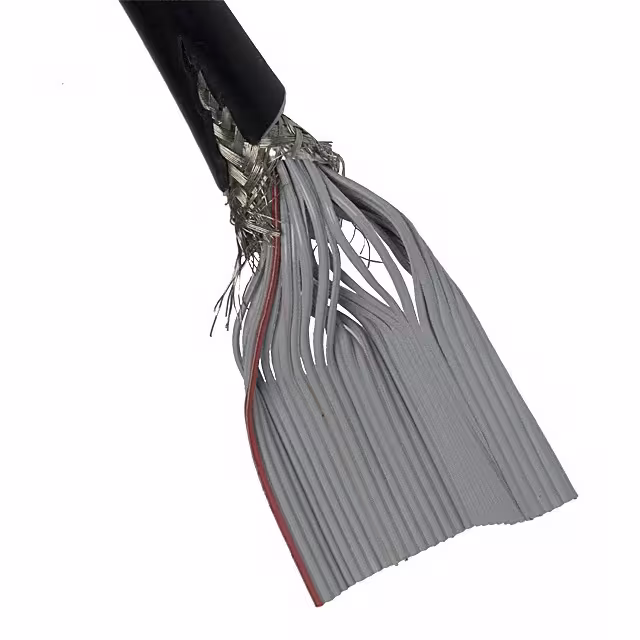

3659/36 100SFCBL RIBN 36COND 0.05 BLACK 100' |
200 |
|
Datasheet | 3659 | Spool | Active | Flat Cable, Round Jacket | 36 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 1.750" (44.45mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Splice Free, Zippable |
|
3517/14 100CBL RIBN 14COND 0.05 GRAY 100' |
200 |
|
Datasheet | 3517 | Spool | Active | Flat Cable, Flat Jacket | 14 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 0.830" (21.08mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
|
3811/64 100CBL RIBN 64COND 0.05 MULTI 100' |
300 |
|
Datasheet | 3811 | Spool | Active | Flat Cable | 64 | 0.050" (1.27mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
.jpg)
|
3659/60 100CBL RIBN 60COND 0.05 BLACK 100' |
500 |
|
Datasheet | 3659 | Spool | Active | Flat Cable, Round Jacket | 60 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 2.950" (74.93mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
|

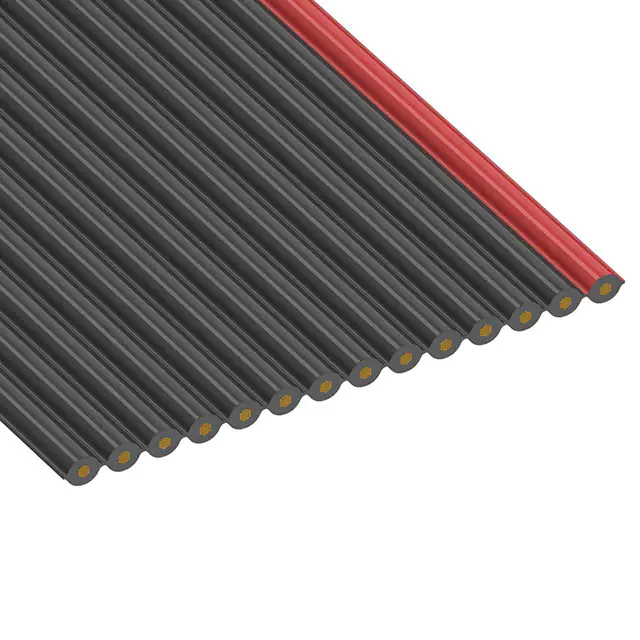

3319/14 100CBL RIBN 14COND 0.05 BLACK 100' |
1,500 |
|
Datasheet | 3319 | Spool | Active | Flat Cable | 14 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 0.700" (17.78mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3756/100 100CBL RIBN 100COND 0.025 GRAY 100' |
300 |
|
Datasheet | 3756 | Spool | Active | Flat Cable | 100 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.025" (0.64mm) | 2.500" (63.50mm) | Thermoplastic Elastomer (TPE) | 150 V | - | - | -40°C ~ 105°C | UL Style 20297 | - |
|

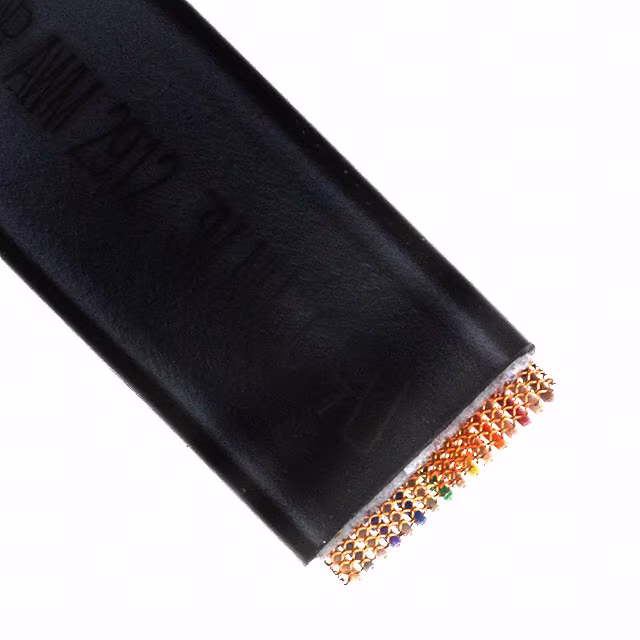

1785/16 100SFCBL RIBN 16COND TWIST PAIR 100' |
300 |
|
Datasheet | 1785 | Spool | Active | Flat Twisted Pair, Flat Jacket | 16 (8 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 0.930" (23.62mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
3517/20 100SFCBL RIBN 20COND 0.05 GRAY 100' |
2,500 |
|
Datasheet | 3517 | Spool | Active | Flat Cable, Flat Jacket | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 1.130" (28.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
