Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3580/40 SL005CBL RIBN 40COND 0.05 GRAY 100' |
1,536 |
|
Datasheet | - | Spool | Obsolete | Flat Cable | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.033" (0.84mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
3543/7 MC005CBL RIBN 30COND 0.044 MULTI 100' |
3,179 |
|
Datasheet | - | Spool | Obsolete | Flat Cable | 30 | 0.044" (1.12mm) | 100.0' (30.48m) | 24 AWG | 7 Strands / 32 AWG | Unshielded | Multiple | 0.044" (1.12mm) | 1.320" (33.53mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | MIL-DTL-16878/1 Type B | -20°C ~ 105°C | UL Style 2713 | - |
|
|
3590/16 SL005CBL RIBN 16COND 0.05 GRAY 100' |
1,212 |
|
Datasheet | - | Spool | Obsolete | Flat Cable, Flat Jacket | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.115" (2.92mm) | 0.870" (22.10mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 105°C | UL Style 2912 | - |
|
3580/37 SL005CBL RIBN 37COND 0.05 GRAY 100' |
3,330 |
|
Datasheet | - | Spool | Obsolete | Flat Cable | 37 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.033" (0.84mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
.jpg)
|

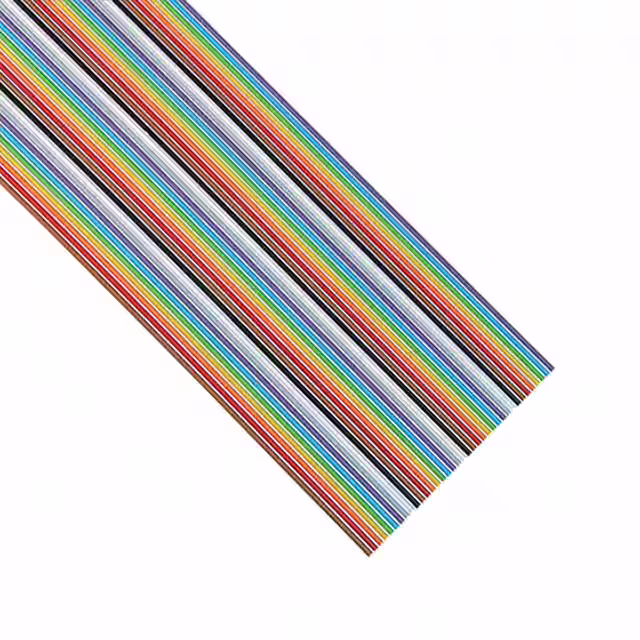

3583/37 MC005CBL RIBN 37COND 0.05 MULTI 100' |
1,823 |
|
Datasheet | - | Spool | Obsolete | Flat Cable | 37 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.033" (0.84mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20932 | - |
.jpg)
|
3585/50 BK005CBL RIBN 50COND 0.05 BLACK 100' |
1,363 |
|
Datasheet | - | Spool | Obsolete | Flat Cable, Round Jacket | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 2.450" (62.23mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20381 | - |
|
|
3590/26 SL005CBL RIBN 26COND 0.05 GRAY 100' |
1,270 |
|
Datasheet | - | Spool | Obsolete | Flat Cable, Flat Jacket | 26 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.115" (2.92mm) | 1.370" (34.79mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 105°C | UL Style 2912 | - |
