Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3540/7 MC005CBL RIBN 10COND 0.044 MULTI 100' |
1,900 |
|
Datasheet | - | Spool | Active | Flat Cable | 10 | 0.044" (1.12mm) | 100.0' (30.48m) | 24 AWG | 7 Strands / 32 AWG | Unshielded | Multiple | 0.044" (1.12mm) | 0.440" (11.18mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | MIL-DTL-16878/1 Type B | -20°C ~ 105°C | UL Style 2713 | - |
|

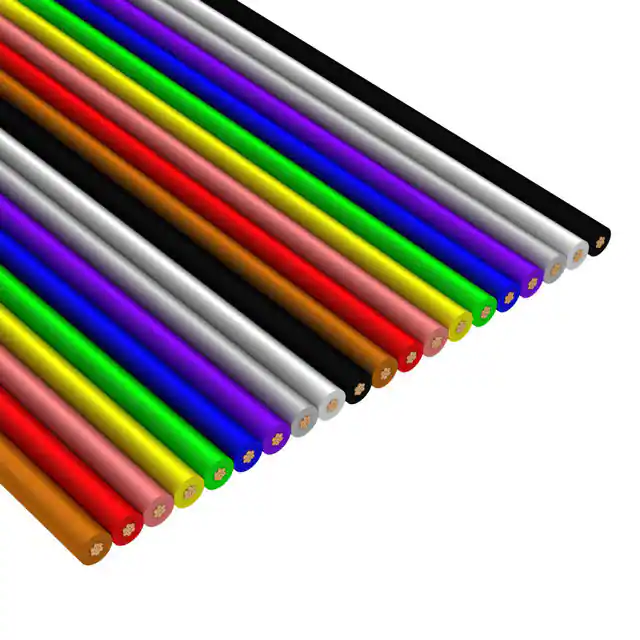

3542 MC005CBL RIBN 20COND 0.045 MULTI 100' |
800 |
|
Datasheet | - | Spool | Active | Flat Cable | 20 | 0.045" (1.14mm) | 100.0' (30.48m) | 24 AWG | 19 Strands / 36 AWG | Unshielded | Multiple | 0.044" (1.12mm) | 0.880" (22.35mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | MIL-DTL-16878/1 Type B | -20°C ~ 105°C | UL Style 2713 | - |
|
3530/7 MC005CBL RIBN 10COND 0.05 MULTI 100' |
4,372 |
|
Datasheet | - | Spool | Active | Flat Cable | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 30 AWG | Unshielded | Multiple | 0.050" (1.27mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | MIL-DTL-16878/1 Type B | -20°C ~ 105°C | UL Style 2713 | - |
|

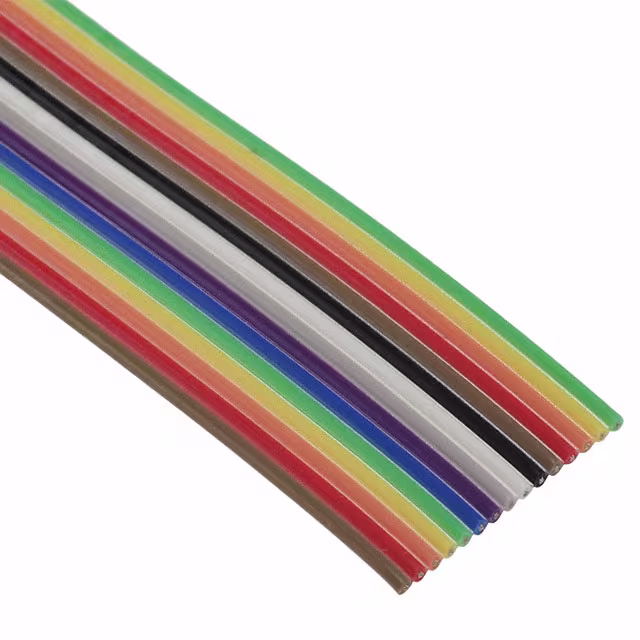

3551 MC005CBL RIBN 15COND 0.039 MULTI 100' |
300 |
|
Datasheet | - | Spool | Active | Flat Cable | 15 | 0.039" (1.00mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.039" (0.99mm) | 0.585" (14.86mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | MIL-DTL-16878/1 Type B | -20°C ~ 105°C | UL Style 2713 | - |
|
3580/10 SL005CBL RIBN 10COND 0.05 GRAY 100' |
4,901 |
|
Datasheet | - | Spool | Obsolete | Flat Cable | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.033" (0.84mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
3580/16 SL005CBL RIBN 16COND 0.05 GRAY 100' |
125 |
|
Datasheet | - | Spool | Obsolete | Flat Cable | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.033" (0.84mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
3580/50 SL005CBL RIBN 50COND 0.05 GRAY 100' |
4,887 |
|
Datasheet | - | Spool | Obsolete | Flat Cable | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.033" (0.84mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
|
3530 MC005CBL RIBN 10COND 0.052 MULTI 100' |
2,142 |
|
Datasheet | - | Spool | Active | Flat Cable | 10 | 0.052" (1.32mm) | 100.0' (30.48m) | 22 AWG | 19 Strands / 34 AWG | Unshielded | Multiple | 0.051" (1.30mm) | 0.510" (12.95mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | MIL-DTL-16878/1 Type B | -20°C ~ 105°C | UL Style 2713 | - |
|
|
3550 MC005CBL RIBN 10COND 0.039 MULTI 100' |
1,446 |
|
Datasheet | - | Spool | Active | Flat Cable | 10 | 0.039" (1.00mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.039" (0.99mm) | 0.392" (9.96mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | MIL-DTL-16878/1 Type B | -20°C ~ 105°C | UL Style 2713 | - |
|

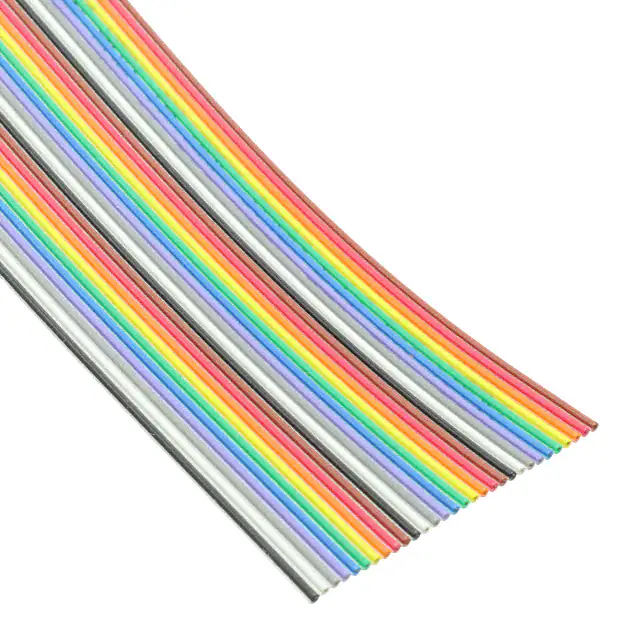

3533/7 MC005CBL RIBN 30COND 0.05 MULTI 100' |
4,658 |
|
Datasheet | - | Spool | Active | Flat Cable | 30 | 0.050" (1.27mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 30 AWG | Unshielded | Multiple | 0.050" (1.27mm) | 1.500" (38.10mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | MIL-DTL-16878/1 Type B | -20°C ~ 105°C | UL Style 2713 | - |
