Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3580/34 SL005CBL RIBN 34COND 0.05 GRAY 100' |
1,629 |
|
Datasheet | - | Spool | Obsolete | Flat Cable | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.033" (0.84mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
3583/20 MC005CBL RIBN 20COND 0.05 MULTI 100' |
3,367 |
|
Datasheet | - | Spool | Obsolete | Flat Cable | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.033" (0.84mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20932 | - |
|
3583/26 MC005CBL RIBN 26COND 0.05 MULTI 100' |
1,912 |
|
Datasheet | - | Spool | Obsolete | Flat Cable | 26 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.033" (0.84mm) | 1.300" (33.02mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20932 | - |
|
3583/34 MC005CBL RIBN 34COND 0.05 MULTI 100' |
4,950 |
|
Datasheet | - | Spool | Obsolete | Flat Cable | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.033" (0.84mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20932 | - |
.jpg)
|
3585/26 BK005CBL RIBN 26COND 0.05 BLACK 100' |
3,350 |
|
Datasheet | - | Spool | Obsolete | Flat Cable, Round Jacket | 26 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 1.650" (41.91mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20381 | - |
|
3583/40 MC005CBL RIBN 40COND 0.05 MULTI 100' |
1,556 |
|
Datasheet | - | Spool | Obsolete | Flat Cable | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.033" (0.84mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20932 | - |
.jpg)
|
3585/40 BK005CBL RIBN 40COND 0.05 BLACK 100' |
2,016 |
|
Datasheet | - | Spool | Obsolete | Flat Cable, Round Jacket | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 1.950" (49.53mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20381 | - |
.jpg)
|
3583/64 MC005CBL RIBN 64COND 0.05 MULTI 100' |
2,588 |
|
Datasheet | - | Spool | Obsolete | Flat Cable | 64 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.033" (0.84mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20932 | - |
|

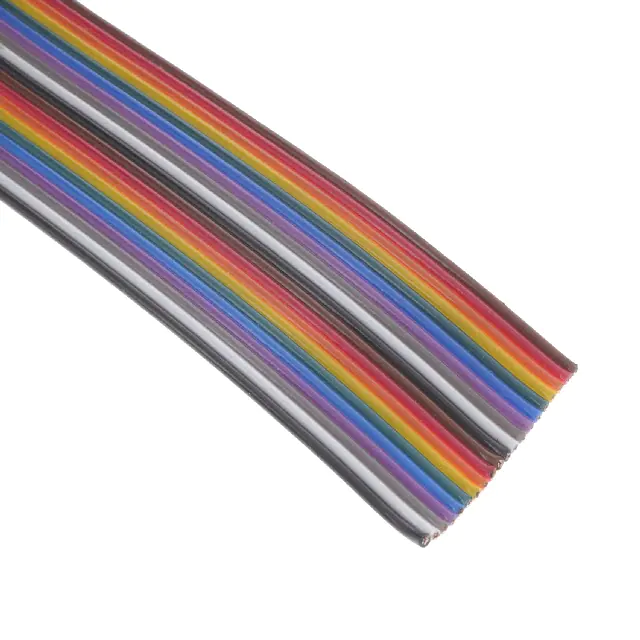

3532/7 MC005CBL RIBN 20COND 0.05 MULTI 100' |
3,285 |
|
Datasheet | - | Spool | Active | Flat Cable | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 30 AWG | Unshielded | Multiple | 0.050" (1.27mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | MIL-DTL-16878/1 Type B | -20°C ~ 105°C | UL Style 2713 | - |
|
3540 MC005CBL RIBN 10COND 0.045 MULTI 100' |
2,060 |
|
Datasheet | - | Spool | Active | Flat Cable | 10 | 0.045" (1.14mm) | 100.0' (30.48m) | 24 AWG | 19 Strands / 36 AWG | Unshielded | Multiple | 0.044" (1.12mm) | 0.440" (11.18mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | MIL-DTL-16878/1 Type B | -20°C ~ 105°C | UL Style 2713 | - |
