Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09180257001CBL RIBN 25COND 0.05 GRAY 100' |
3,189 |
|
Datasheet | - | Bulk | Active | Flat Cable | 25 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 1.237" (31.41mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180347001CBL RIBN 34COND 0.05 GRAY 100' |
3,748 |
|
Datasheet | - | Bulk | Active | Flat Cable | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 1.687" (42.84mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180147005CBL RIBN 14COND 0.05 MULTI 100' |
4,115 |
|
Datasheet | - | Bulk | Active | Flat Cable | 14 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Multiple | 0.037" (0.93mm) | 0.689" (17.51mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|

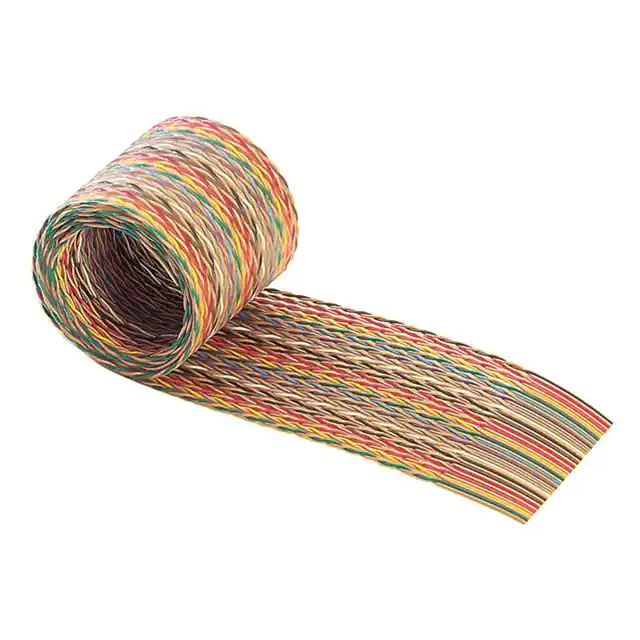

09180107006CBL RIBN 10COND 0.05 MULTI 100' |
1,457 |
|
Datasheet | - | Bulk | Active | Flat Cable | 10 (5 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 0.526" (13.36mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20130 | - |
|
09180407005CBL RIBN 40COND 0.05 MULTI 100' |
3,028 |
|
Datasheet | - | Bulk | Active | Flat Cable | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Multiple | 0.037" (0.93mm) | 1.989" (50.53mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|

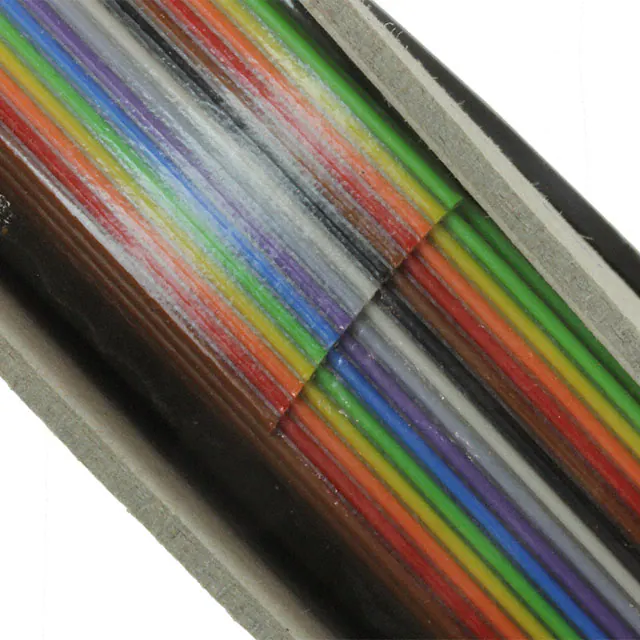

09180157005CBL RIBN 15COND 0.05 MULTI 100' |
3,141 |
|
Datasheet | - | Bulk | Active | Flat Cable | 15 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Multiple | 0.037" (0.93mm) | 0.739" (18.78mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180207005CBL RIBN 20COND 0.05 MULTI 100' |
4,665 |
|
Datasheet | - | Bulk | Active | Flat Cable | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Multiple | 0.037" (0.93mm) | 0.989" (25.13mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180147008CBL RIBN 14COND 0.05 BLACK 100' |
1,893 |
|
Datasheet | - | Bulk | Active | Flat Cable, Round Jacket | 14 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Black | 0.035" (0.89mm) | 0.700" (17.78mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | - |
|
|
09180377008CBL RIBN 37COND 0.05 BLACK 100' |
4,212 |
|
Datasheet | - | Bulk | Active | Flat Cable, Round Jacket | 37 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | - |
|
09180347006CBL RIBN 34COND 0.05 MULTI 100' |
4,797 |
|
Datasheet | - | Bulk | Active | Flat Cable | 34 (17 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.726" (43.84mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20130 | - |
