Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09180097005CBL RIBN 9COND 0.05 MULTI 100' |
1,203 |
|
Datasheet | - | Bulk | Active | Flat Cable | 9 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Multiple | 0.037" (0.93mm) | 0.439" (11.16mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180257007CBL RIBN 25COND 0.05 GRAY 100' |
1,912 |
|
Datasheet | - | Bulk | Active | Flat Cable, Round Jacket | 25 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Shielded | Gray | 0.037" (0.93mm) | 1.250" (31.75mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 75°C | - | - |
|

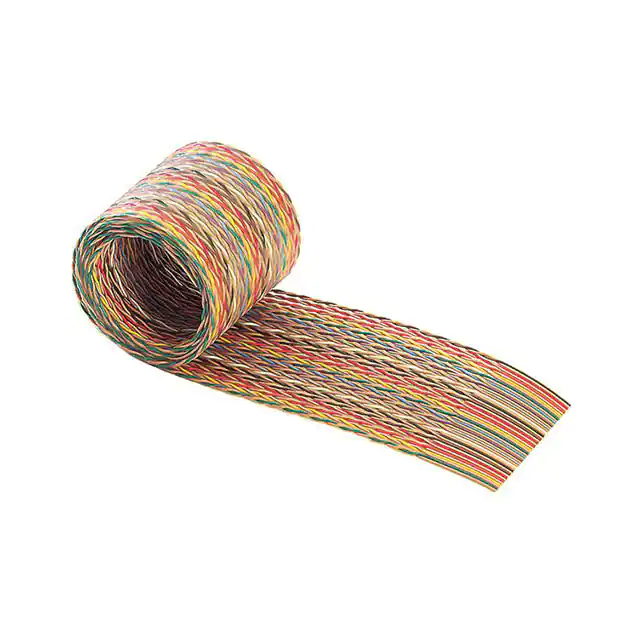

09180207006CBL RIBN 20COND 0.05 MULTI 100' |
4,951 |
|
Datasheet | - | Bulk | Active | Flat Cable | 20 (10 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.026" (26.06mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20130 | - |
|
09180067004CBL RIBN 6COND 0.05 GRAY 328.1' |
100 |
|
Datasheet | - | Bulk | Active | Flat Cable | 6 | 0.050" (1.27mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 0.287" (7.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180107004CBL RIBN 10COND FLAT 0.05 GRAY |
3,461 |
|
Datasheet | SEK | Digi-Spool®, Continuous Spool | Active | Flat Cable | 10 | 0.050" (1.27mm) | Enter Number of Meters in Order Quantity | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
|
09180067004CBL RIBN 6COND FLAT 0.05 GRAY |
2,420 |
|
Datasheet | SEK | Digi-Spool®, Continuous Spool | Active | Flat Cable | 6 | 0.050" (1.27mm) | Enter Number of Meters in Order Quantity | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 0.287" (7.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180207004CBL RIBN 20COND FLAT 0.05 GRAY |
2,455 |
|
Datasheet | SEK | Digi-Spool®, Continuous Spool | Active | Flat Cable | 20 | 0.050" (1.27mm) | Enter Number of Meters in Order Quantity | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 0.987" (25.06mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180147001CBL RIBN 14COND 0.05 GRAY 100' |
3,415 |
|
Datasheet | - | Bulk | Active | Flat Cable | 14 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 0.687" (17.44mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180097001CBL RIBN 9COND 0.05 GRAY 100' |
3,578 |
|
Datasheet | - | Bulk | Active | Flat Cable | 9 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 0.437" (11.09mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180267001CBL RIBN 26COND 0.05 GRAY 100' |
1,494 |
|
Datasheet | - | Bulk | Active | Flat Cable | 26 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 1.287" (32.68mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
