Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09180107001CBL RIBN 10COND 0.05 GRAY 100' |
136 |
|
Datasheet | - | Bulk | Active | Flat Cable | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
|
09180107004CBL RIBN 10COND 0.05 GRAY 328.1' |
100 |
|
Datasheet | - | Bulk | Active | Flat Cable | 10 | 0.050" (1.27mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180207004CBL RIBN 20COND 0.05 GRAY 328.1' |
100 |
|
Datasheet | - | Bulk | Active | Flat Cable | 20 | 0.050" (1.27mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 0.987" (25.06mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180067001CBL RIBN 6COND 0.05 GRAY 100' |
2,819 |
|
Datasheet | - | Bulk | Active | Flat Cable | 6 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 0.287" (7.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180157001CBL RIBN 15COND 0.05 GRAY 100' |
1,513 |
|
Datasheet | - | Bulk | Active | Flat Cable | 15 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 0.737" (18.71mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|

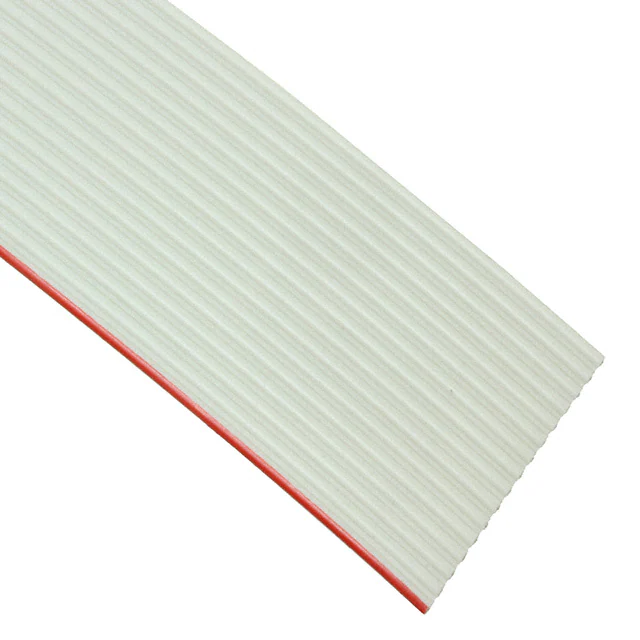

09180167001CBL RIBN 16COND 0.05 GRAY 100' |
2,203 |
|
Datasheet | - | Bulk | Active | Flat Cable | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 0.786" (19.96mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
|
09180207001CBL RIBN 20COND 0.05 GRAY 100' |
1,658 |
|
Datasheet | - | Bulk | Active | Flat Cable | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 0.987" (25.06mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180167005CBL RIBN 16COND 0.05 MULTI 100' |
3,545 |
|
Datasheet | - | Bulk | Active | Flat Cable | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.037" (0.93mm) | 0.789" (20.05mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180107005CBL RIBN 10COND 0.05 MULTI 100' |
3,430 |
|
Datasheet | - | Bulk | Active | Flat Cable | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Multiple | 0.037" (0.93mm) | 0.489" (12.43mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180507001CBL RIBN 50COND 0.05 GRAY 100' |
1,255 |
|
Datasheet | - | Bulk | Active | Flat Cable | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 2.487" (63.16mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
