DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19039858AFAN IMP MTR 192X69MM DD752748B1A |
4,273 |
|
Datasheet | Diplomat | Bulk | Obsolete | 48VDC | Round - 192mm Dia | 69.00mm | 250.0 CFM (7.00m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Motorized Impellers | Speed Sensor (Tach) | 53.7dB(A) | 23 W | 1850 RPM | 3 Wire Leads | - | - | - | 2.2 lbs (997.9 g) |
|
19043137AFAN 227X99MM DDE893948B1S5X-E2 |
1,394 |
|
Datasheet | Diplomat | Box | Active | 48VDC | Round - 227mm Dia | 99.00mm | 685.0 CFM (19.18m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 106 W | 2600 RPM | 4 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | 3.8 lbs (1.7 kg) |
|

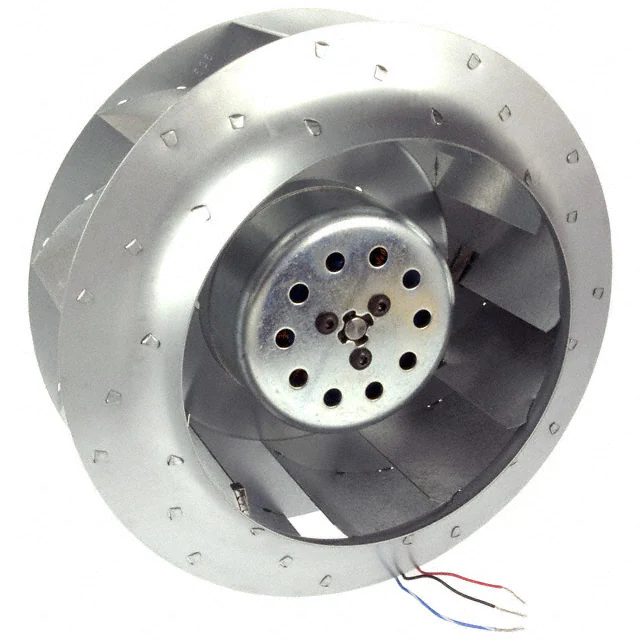

19039871AFAN IMP MTR 227X99MM DD893948B1A |
3,254 |
|
Datasheet | Diplomat | Bulk | Active | 48VDC | Round - 227mm Dia | 99.00mm | 626.0 CFM (17.53m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 73.5dB(A) | 100 W | 2550 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 3.8 lbs (1.7 kg) |
|
19031090AFAN AXIAL 171.5X50.8MM JQ24B4 |
4,905 |
|
Datasheet | Major | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 54.3dB(A) | 24 W | 3425 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.9 lbs (861.8 g) |
|
19028865AFAN AXIAL 119.1X39.1MM MD12B1 |
2,250 |
|
Datasheet | Muffin XL | Bulk | Active | 12VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.0dB(A) | 6 W | 3330 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 1.4 lbs (635.0 g) |
|
19030599AFAN AXIAL 120X32MM 24VDC MC24B7 |
4,435 |
|
Datasheet | Muffin | Box | Active | 24VDC | Square - 120mm L x 120mm H | 32.00mm | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 47.8dB(A) | 5.5 W | 3700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 0.529 lb (239.95 g) |
|
19030573AFAN AXIAL 120X32MM 48VDC MC48B3 |
1,085 |
|
Datasheet | Muffin | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 32.00mm | 102.0 CFM (2.86m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.8dB(A) | 8.4 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.529 lb (239.95 g) |
|
19031102AFAN BLOWER 80X32.4MM 24V WT24B3 |
4,321 |
|
Datasheet | Whiffet | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.40mm | 15.0 CFM (0.420m³/min) | 0.620 in H2O (154.4 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection | 51.4dB(A) | 4.8 W | 4050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 0.369 lb (167.38 g) |
|
17001157AFAN AXIAL 24VDC MSD24B3E2X-E3 |
2,939 |
|
Datasheet | - | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.10mm | 110.0 CFM (3.08m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.1dB(A) | 7 W | 3000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17001186AFAN AXIAL BALL JQD24Z3E2X-E3 |
1,174 |
|
Datasheet | Major | Bulk | Active | 24VDC | Square/Rounded - 171.4mm L x 171.4mm H | 50.80mm | 305.0 CFM (8.54m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.4dB(A) | 31.2 W | 4500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
