DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17000298AFAN AXL 254X88.9MM CD24B7 24VDC |
4,838 |
|
Datasheet | - | Box | Active | 24VDC | Round - 254mm Dia | 88.90mm | 550.0 CFM (15.40m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 49.1dB(A) | 29 W | 1650 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUR, UL | - |
|
19040396AFAN AXIAL 254X88.9MM 24V CD24R7X |
4,060 |
|
Datasheet | Caravel | Box | Active | 24VDC | Round - 254mm Dia | 88.90mm | 550.0 CFM (15.40m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.5dB(A) | 29 W | 1650 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | - |
|
|
17001175AFAN AXIAL 48VDC GLD48K3E2X-E3 |
4,154 |
|
Datasheet | - | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.10mm | 175.0 CFM (4.90m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.9dB(A) | 22.6 W | 3900 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
17001163AFAN AXIAL 24VDC MDD24B1E2X-E3 |
2,049 |
|
Datasheet | - | Bulk | Active | 24VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 106.0 CFM (2.97m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 6 W | 3100 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17002003ACR4028-XD12BPL |
2,450 |
|
Datasheet | - | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 15.9 CFM (0.445m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 56.0dB(A) | 2.76 W | 12000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
GDA4010-12BBFAN AXIAL 40X10MM 12VDC WIRE |
2,593 |
|
Datasheet | Gryphon | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.5dB(A) | 1.1 W | 7000 RPM | 3 Wire Leads | - | - | - | 0.035 lb (15.88 g) |
|

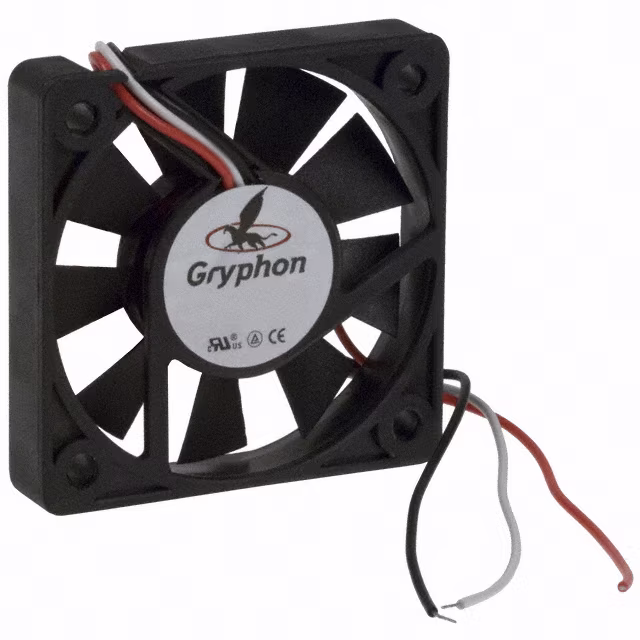

GDA5210-12BBFAN AXIAL 52X10MM 12VDC WIRE |
2,891 |
|
Datasheet | Gryphon | - | Obsolete | 12VDC | Square - 52mm L x 52mm H | 10.00mm | 12.3 CFM (0.344m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 35.8dB(A) | 1.7 W | 6000 RPM | 3 Wire Leads | - | - | - | 0.049 lb (22.23 g) |
|

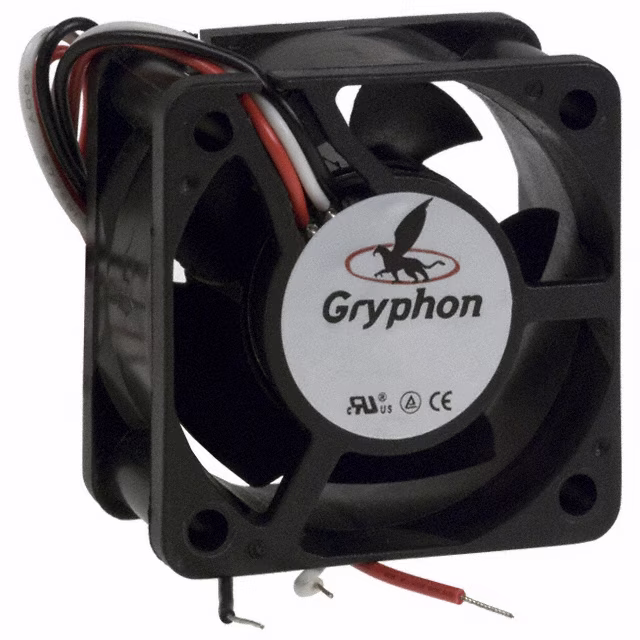

GDA4020-12BBFAN AXIAL 40X20MM 12VDC WIRE |
4,418 |
|
Datasheet | Gryphon | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.3 CFM (0.232m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.9dB(A) | 1.4 W | 8000 RPM | 3 Wire Leads | - | - | - | 0.064 lb (29.03 g) |
|
|
GDA4020-24BBFAN AXIAL 40X20MM 24VDC WIRE |
1,308 |
|
Datasheet | Gryphon | - | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.3 CFM (0.232m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.9dB(A) | 1.7 W | 8000 RPM | 3 Wire Leads | - | - | - | 0.064 lb (29.03 g) |
|

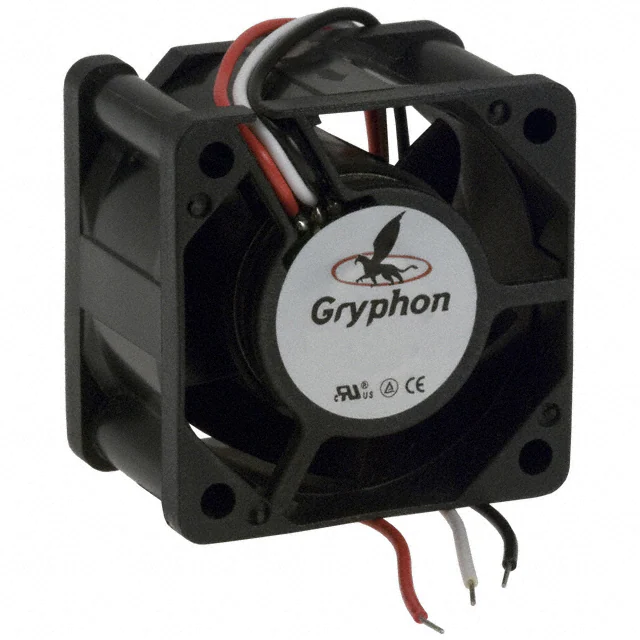

GDA4028-12BBFAN AXIAL 40X28MM 12VDC WIRE |
4,285 |
|
Datasheet | Gryphon | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 11.0 CFM (0.308m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.4dB(A) | 2.4 W | 8800 RPM | 3 Wire Leads | - | - | - | 0.079 lb (35.83 g) |
