DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17002083ACR2258DC24V |
1,151 |
|
Datasheet | - | Box | Active | 24VDC | Square - 225mm L x 225mm H | 80.00mm | 713.9 CFM (20.22m³/min) | 1.240 in H2O (308.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 71.0dB(A) | 101 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002078ACR2072DC48V |
100 |
|
Datasheet | - | Box | Active | 48VDC | Square - 208mm L x 208mm H | 72.00mm | 731.5 CFM (20.48m³/min) | 1.080 in H2O (269.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 76.0dB(A) | 134 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002086ACR2880DC48V |
100 |
|
Datasheet | - | Box | Active | 48VDC | Square - 280mm L x 280mm H | 80.00mm | 1179.6 CFM (33.40m³/min) | 1.070 in H2O (266.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 77.0dB(A) | 124.8 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|

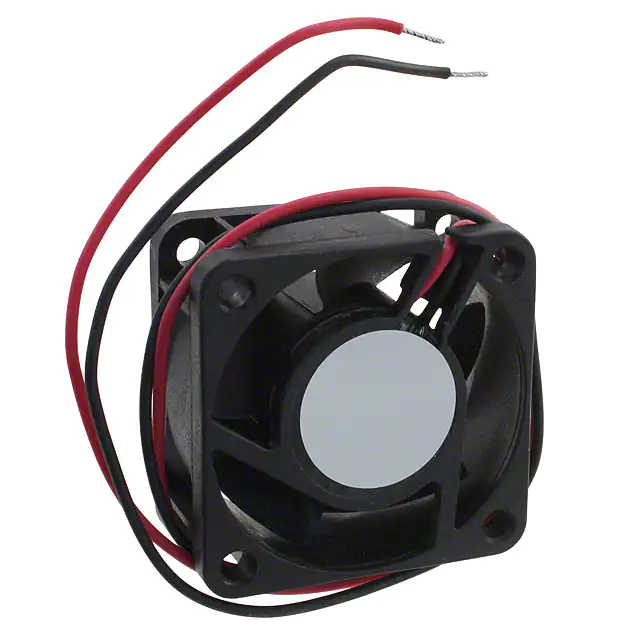

19032620AFAN AXIAL 40X20MM CR0405LB-C50 |
154 |
|
Datasheet | Flight LT 40 | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.5 CFM (0.210m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 22.4dB(A) | 700 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUR, TUV, UR | 0.075 lb (34.02 g) |
|
19031481AFAN AXIAL 80X32MM 48VDC ST48K0X |
105 |
|
Datasheet | Sprint | Box | Active | 48VDC | Square - 80mm L x 80mm H | 32.00mm | 40.0 CFM (1.12m³/min) | 0.301 in H2O (75.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 44.2dB(A) | 5.3 W | 4250 RPM | 3 Wire Leads with Splice Terminals | - | - | CE, UL | - |
|

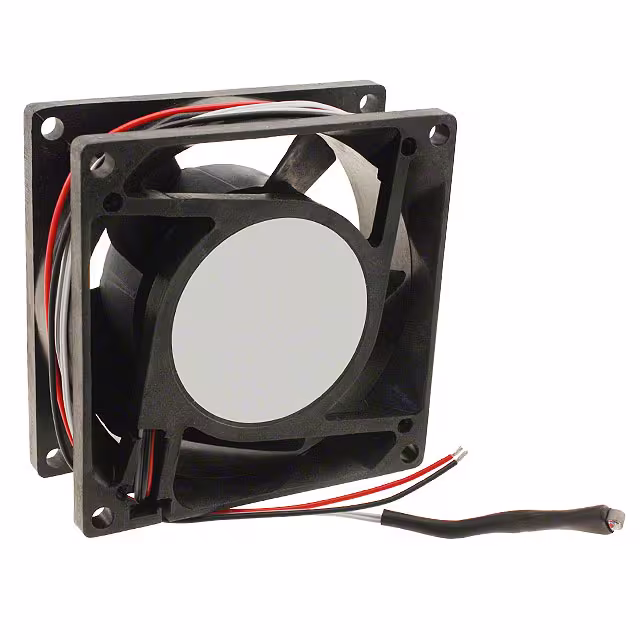

19032397AFAN AXIAL 80X32MM 24VDC ST24S3H |
3,824 |
|
Datasheet | Sprint | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 34.0 CFM (0.952m³/min) | 0.325 in H2O (80.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 40.2dB(A) | 3.8 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.397 lb (180.08 g) |
|
|
17001221AFAN AXIAL 48VDC MSD48B3-E3 |
4,989 |
|
Datasheet | Muffin XP | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.10mm | 110.0 CFM (3.08m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 49.1dB(A) | 7.2 W | 3000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
17001172AFAN AXIAL 48VDC GLD48B3E2X-E3 |
101 |
|
Datasheet | - | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 38.10mm | 150.0 CFM (4.20m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.6dB(A) | 14.9 W | 3300 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|

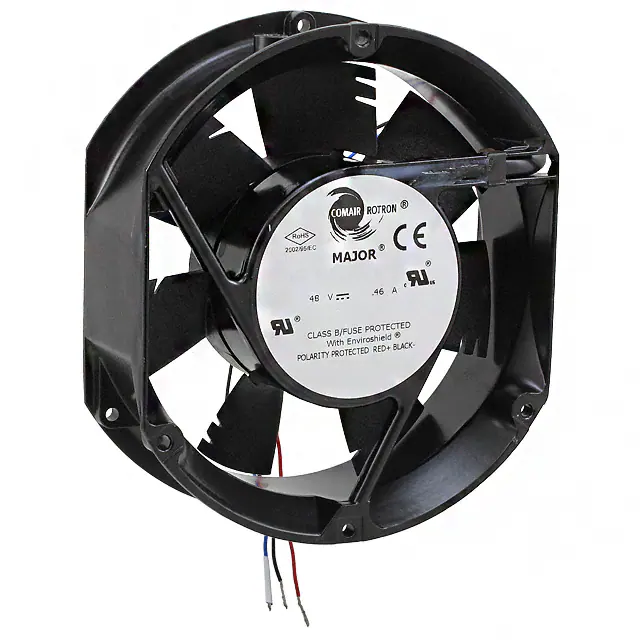

19041119AFAN AXIAL 171.4X50MM JQ48B7X-E2 |
528 |
|
Datasheet | Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.810 in H2O (201.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 54.3dB(A) | 20.1 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 1.8 lbs (816.5 g) |
|
|
17001216AFAN AXIAL 12VDC SDD12B1-E3 |
2,314 |
|
Datasheet | Sprite | Box | Active | 12VDC | Square - 79.8mm L x 79.8mm H | 41.80mm | 35.0 CFM (0.980m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.6dB(A) | 3 W | 3500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
