DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

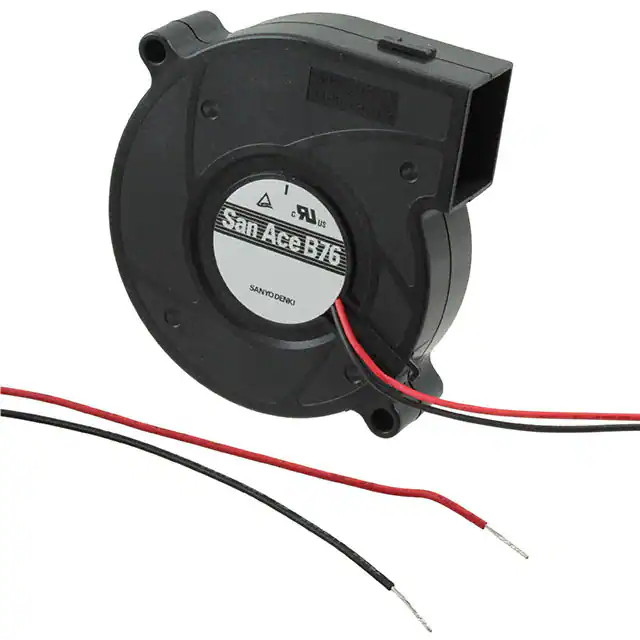

109BD24HA2FAN BLOWER 76X30MM 24VDC WIRE |
300 |
|
Datasheet | San Ace B76 | Box | Active | 24VDC | Square/Rounded - 76mm L x 75.5mm H | 30.00mm | 12.7 CFM (0.356m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Locked Rotor Protection | 41.5dB(A) | 4.08 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
109L0624S402FAN AXIAL 60X25MM 24VDC WIRE |
260 |
|
Datasheet | San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 1.92 W | 4600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9WPA0612P4G003FAN AXL 60X25MM 12VDC RECT CONN |
387 |
|
Datasheet | San Ace 60W | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 15.3 CFM (0.428m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 22.0dB(A) | - | 3500 RPM | 4 Position Rectangular Connector | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | 0.243 lb (110.22 g) |
|
9WPA0824P4G00380X25MM, DC, 24V, SPLASH & DUST |
197 |
|
Datasheet | San Ace 80W | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.20mm | 82.7 CFM (2.32m³/min) | 0.843 in H2O (210.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | - | 8250 RPM | 4 Position Rectangular Connector | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9LG0924P4S001FAN AXIAL 92X25MM 24VDC WIRE |
329 |
|
Datasheet | San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 59.7 CFM (1.67m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 3850 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
9GV1212P4G011FAN AXIAL 119X25.4MM 12VDC WIRE |
111 |
|
Datasheet | San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.40mm | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 20.16 W | 5100 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.573 lb (260.00 g) |
|
9GV1524M501FAN AXIAL 150X50MM 24VDC WIRE |
1,073 |
|
Datasheet | San Ace 150 | Box | Active | 24VDC | Square - 150mm L x 150mm H | 50.00mm | 224.0 CFM (6.27m³/min) | 0.533 in H2O (132.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 14.4 W | 3000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.993 lb (450.42 g) |
|

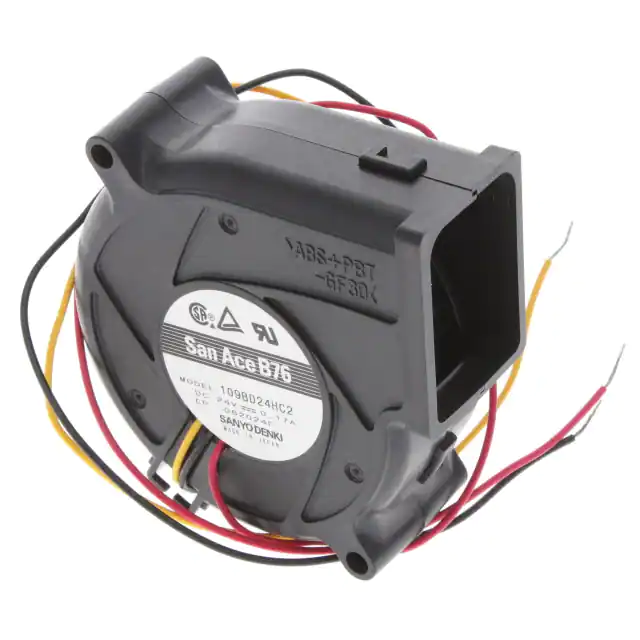

109BD24HC2FAN BLOWER 76X30MM 24VDC WIRE |
752 |
|
Datasheet | San Ace B76 | Box | Active | 24VDC | Square/Rounded - 76mm L x 75.5mm H | 30.00mm | 12.7 CFM (0.356m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 41.5dB(A) | 4.08 W | 3000 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
109BD24FC2FAN BLOWER 76X30MM 24VDC WIRE |
2,263 |
|
Datasheet | San Ace B76 | Box | Active | 24VDC | Square/Rounded - 76mm L x 75.5mm H | 30.00mm | 10.9 CFM (0.305m³/min) | 0.394 in H2O (98.1 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 3.36 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9WPA0424H6001FAN AXIAL 40X20MM 24VDC WIRE |
3,264 |
|
Datasheet | San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 8.5 CFM (0.238m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 900 mW | 8800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | - |
