DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109L0624H402FAN AXIAL 60X25MM 24VDC WIRE |
1,050 |
|
Datasheet | San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.44 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|

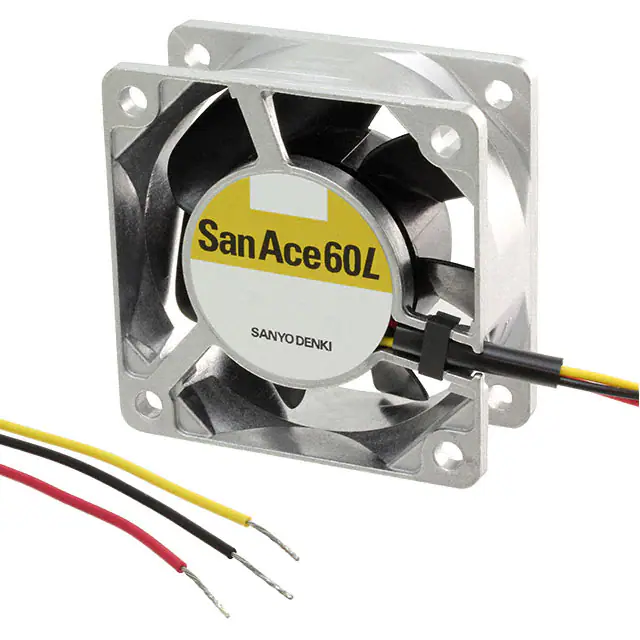

109L0612S401FAN AXIAL 60X25MM 12VDC WIRE |
3,678 |
|
Datasheet | San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB(A) | 2.04 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.222 lb (100.7 g) |
|

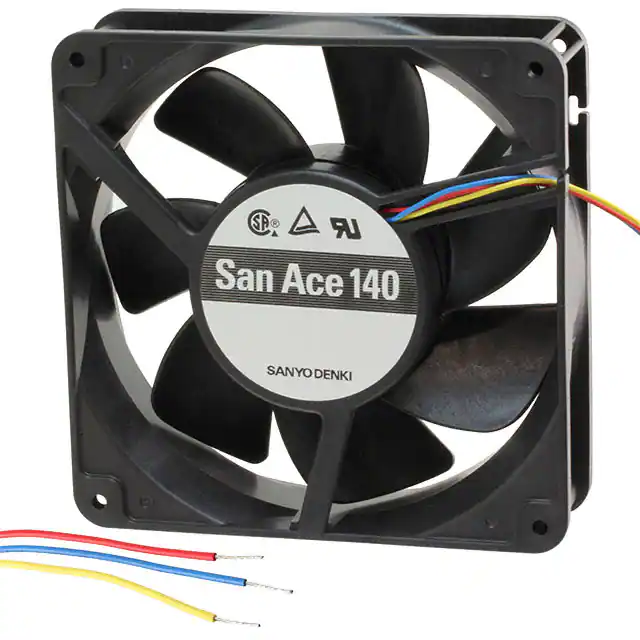

109P1412M101FAN AXIAL 140X38MM 12VDC WIRE |
4,345 |
|
Datasheet | San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 38.00mm | 117.0 CFM (3.28m³/min) | 0.209 in H2O (52.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 3.96 W | 1900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.993 lb (450.42 g) |
|
109BF24HC2FAN BLOWER 120X32MM 24VDC WIRE |
366 |
|
Datasheet | San Ace B120 | Box | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 27.5 CFM (0.770m³/min) | 0.704 in H2O (175.4 Pa) | Ball | Blower | Speed Sensor (Tach) | 52.0dB(A) | 7.2 W | 2400 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.604 lb (273.97 g) |
|
9LG0624P4J001FAN AXIAL 60X25MM 24VDC WIRE |
1,782 |
|
Datasheet | San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 4.56 W | 8650 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9LG0912P4S001FAN AXIAL 92X25MM 12VDC WIRE |
2,050 |
|
Datasheet | San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 59.7 CFM (1.67m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 3850 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
9LG0812P4H001FAN AXIAL 80X25MM 12VDC WIRE |
205 |
|
Datasheet | San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 36.3 CFM (1.02m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 31.0dB(A) | 1.44 W | 3700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
9LG0812S4002FAN AXIAL 80X25MM 12VDC WIRE |
3,719 |
|
Datasheet | San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 2.04 W | - | 2 Wire Leads | - | - | - | - |
|
|
9LG0824S4002FAN AXIAL 80X25MM 24VDC WIRE |
2,908 |
|
Datasheet | San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 1.68 W | - | 2 Wire Leads | - | - | - | - |
|
|
9LG0924H4002FAN AXIAL 92X25MM 24VDC WIRE |
2,056 |
|
Datasheet | San Ace 92L | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 48.7 CFM (1.36m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.68 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | - |
