DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV3612P3G03FAN AXIAL 36X28MM 12VDC WIRE |
4,594 |
|
Datasheet | San Ace 36 | Box | Active | 12VDC | Square - 36mm L x 36mm H | 28.00mm | 14.1 CFM (0.395m³/min) | 1.104 in H2O (275.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 4.08 W | 14000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.102 lb (46.27 g) |
|
9GA0612H6001FAN AXIAL 60X20MM 12VDC WIRE |
338 |
|
Datasheet | San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 18.4 CFM (0.515m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB(A) | 1.08 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.154 lb (69.85 g) |
|
9RA0612H4001FAN AXIAL 60X25MM 12VDC WIRE |
144 |
|
Datasheet | San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.1 CFM (0.535m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 840 mW | 3800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0624S40011FAN AXIAL 60X25MM 24VDC WIRE |
107 |
|
Datasheet | San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.44 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9RA0912P4G0011FAN AXIAL 92X25MM 12VDC WIRE |
141 |
|
Datasheet | San Ace 92 | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 4200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

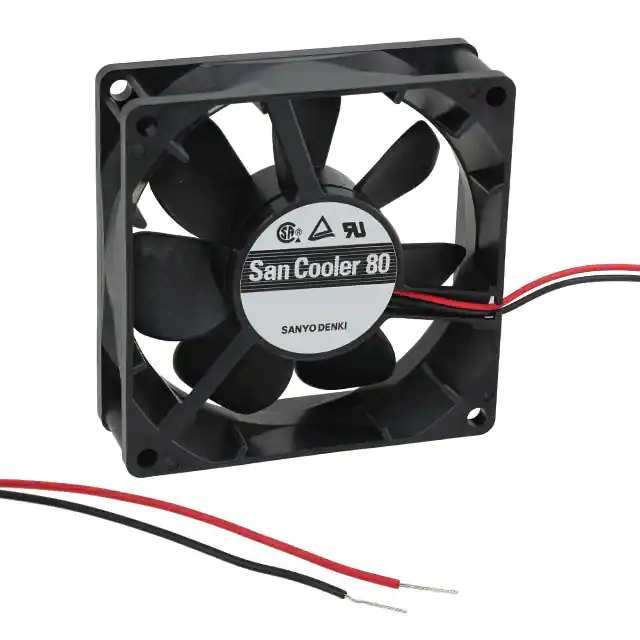

9A0812S402FAN AXIAL 80X25MM 12VDC WIRE |
101 |
|
Datasheet | San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.16 W | 3400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
9G0912H202FAN AXIAL 92X32MM 12VDC WIRE |
130 |
|
Datasheet | San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 56.2 CFM (1.57m³/min) | 0.205 in H2O (51.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 2.76 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
9S1212M402FAN AXIAL 119X25MM 12VDC WIRE |
359 |
|
Datasheet | San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | - | 24.0dB(A) | 1.56 W | 1850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.309 lb (140.16 g) |
|
9S1212M401FAN AXIAL 119X25MM 12VDC WIRE |
218 |
|
Datasheet | San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1.56 W | 1850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.309 lb (140.16 g) |
|
9GAX0412P3K003FAN AXIAL 40X28MM 12VDC WIRE |
248 |
|
Datasheet | San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 28.6 CFM (0.801m³/min) | 3.210 in H2O (800.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 11.04 W | 22000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.117 lb (53.07 g) |
