LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AL5809Q-100EV1EVAL BOARD FOR AL5809Q |
4,600 |
|
Datasheet | - | Box | Active | 100mA | 1 Non-Isolated Output | - | Dimmable | 2.5V ~ 60V | Board(s) | AL5809Q |
|

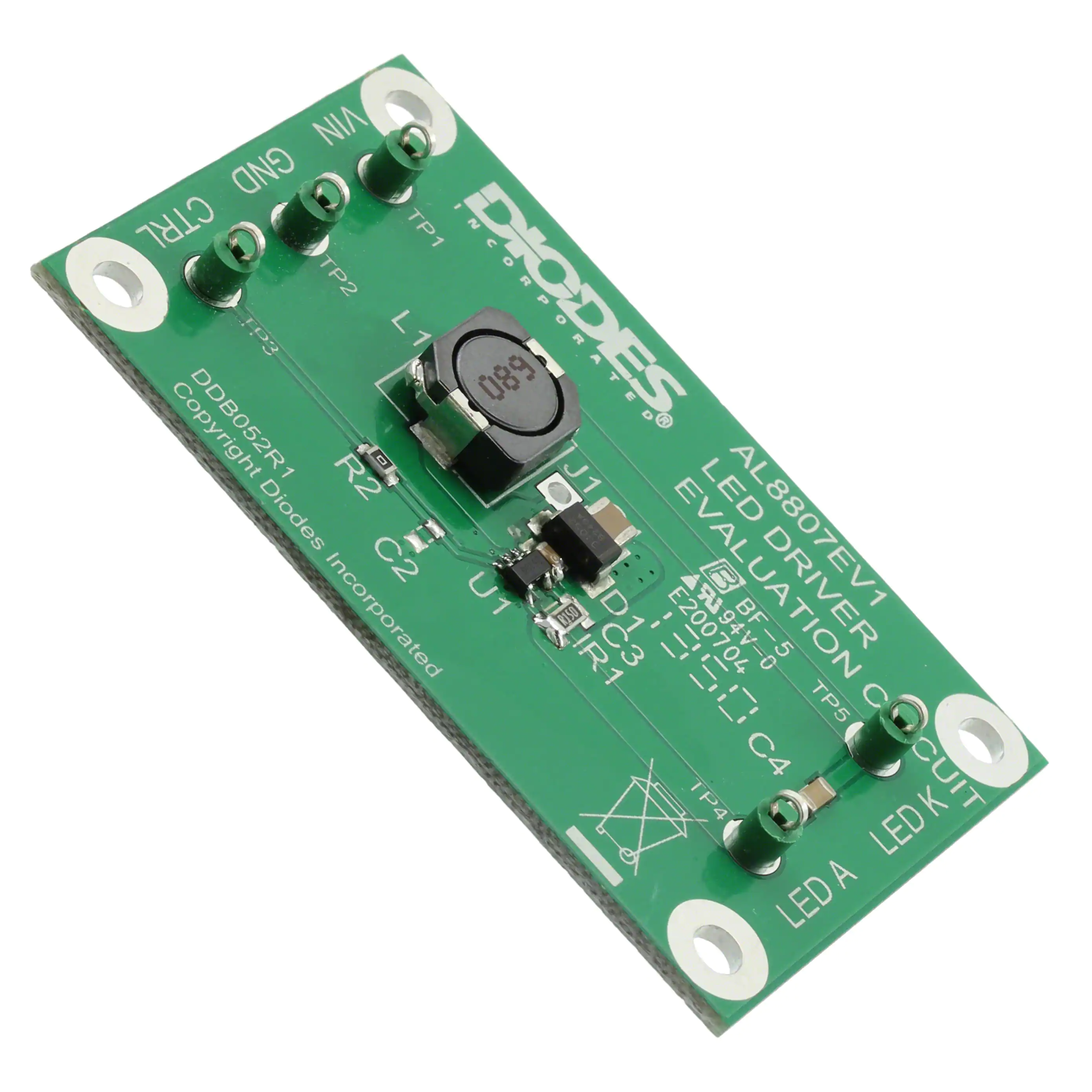

AL8807EV1EVAL BOARD FOR AL8807 |
4,625 |
|
- |
- | Box | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 6V ~ 36V | Board(s) | AL8807 |
|

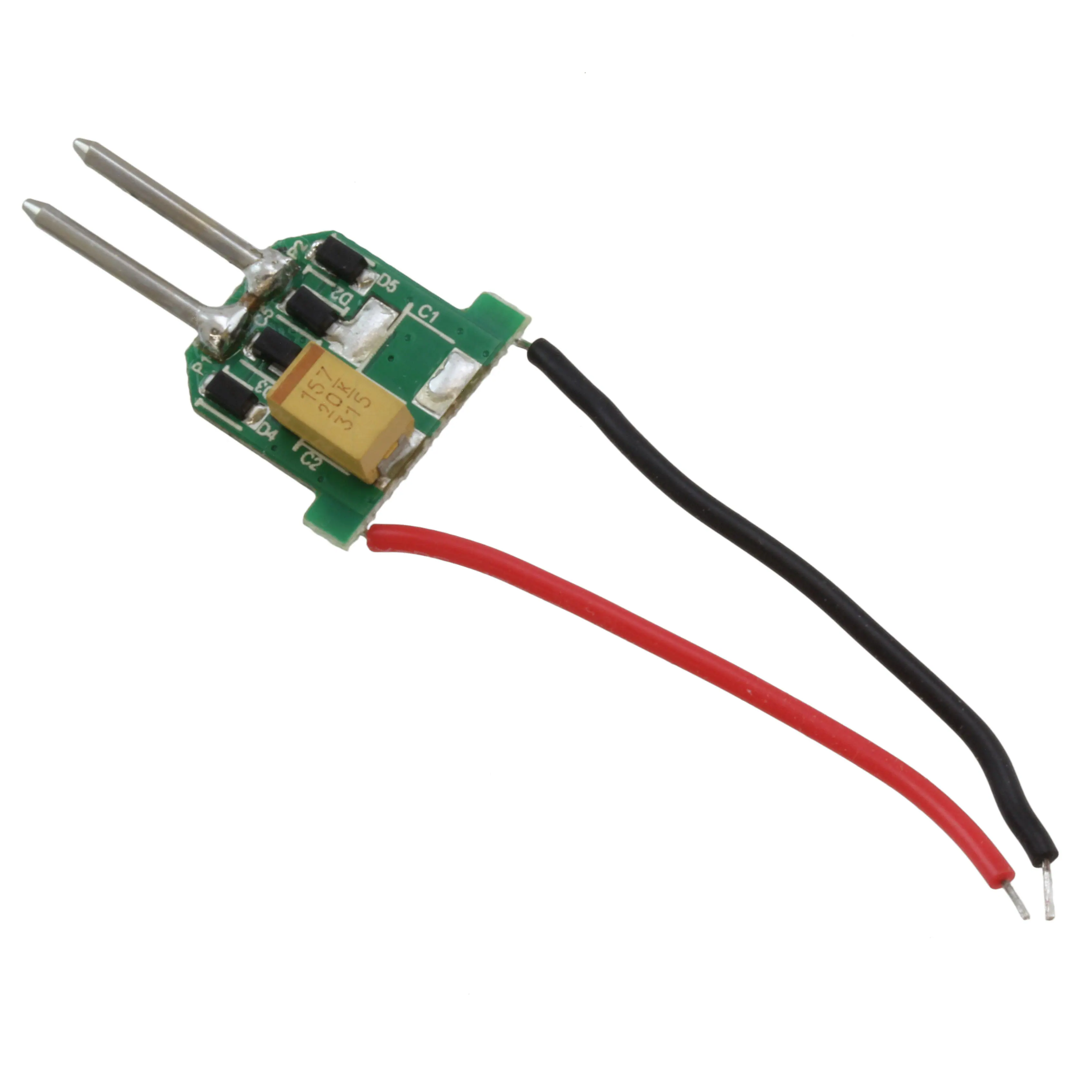

AL8807EV2EVAL BOARD FOR AL8807 |
2,335 |
|
- |
- | Box | Not For New Designs | 1A | 1 Non-Isolated Output | - | Dimmable | 6V ~ 36V | Board(s) | AL8807 |
|
|
AL1698EV1EVAL BOARD FOR AL1698 |
4,625 |
|
Datasheet | - | Box | Active | 100mA | 1 Non-Isolated Output | 81V | Dimmable | 198 ~ 264 VAC | Board(s) | AL1698 |
|

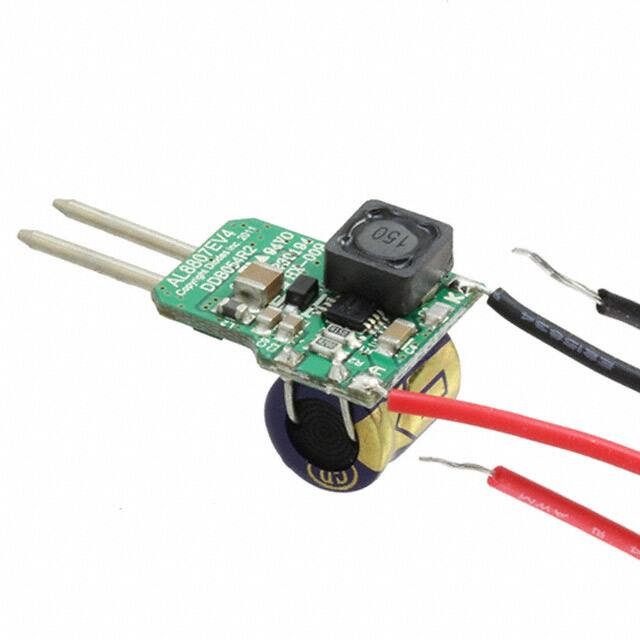

AL8807EV4EVAL BOARD FOR AL8807 |
3,264 |
|
- |
- | Box | Not For New Designs | 1A | 1 Non-Isolated Output | - | Dimmable | 6V ~ 36V | Board(s) | AL8807 |
|

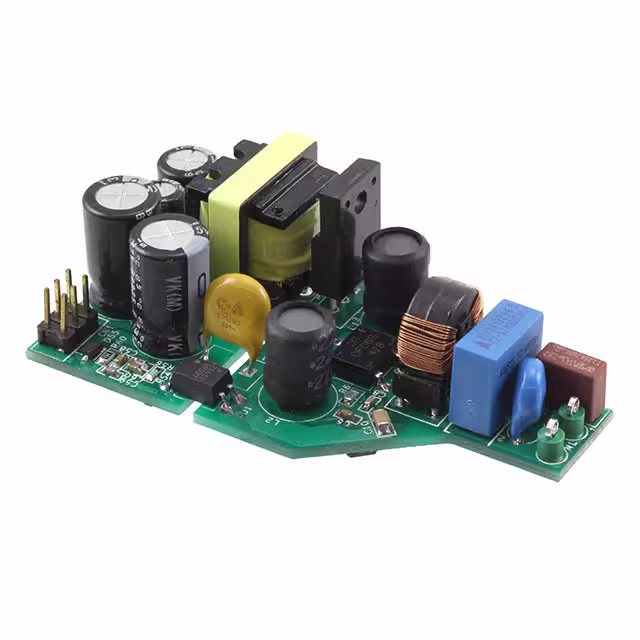

AL6562EV1EVAL BOARD FOR AL6562 |
3,108 |
|
- |
- | Box | Active | - | 1 Non-Isolated Output | - | - | 10.3V ~ 22V | Board(s) | AL6562 |
|

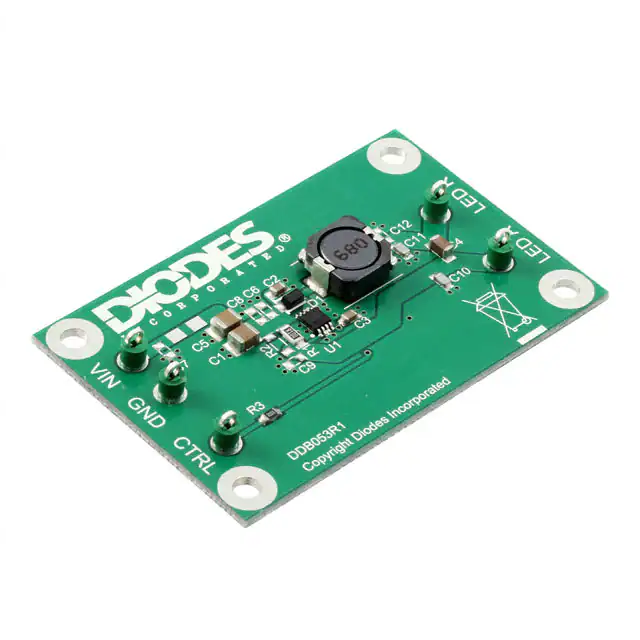

AL8807EV3EVAL BOARD FOR AL8807 |
1,365 |
|
- |
- | Box | Not For New Designs | 1A | 1 Non-Isolated Output | - | Dimmable | 6V ~ 36V | Board(s) | AL8807 |
|
|
AL8807AEV3EVAL BOARD FOR AL8807A |
1,286 |
|
- |
- | Box | Not For New Designs | 1A | 1 Non-Isolated Output | - | Dimmable | 6V ~ 36V | Board(s) | AL8807A |
