LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AL8806EV1EVAL BOARD FOR AL8806 |
1,868 |
|
- |
- | Box | Not For New Designs | 1.5A | 1 Non-Isolated Output | - | Dimmable | 9V ~ 30V | Board(s) | AL8806 |
|
|
AL8806EV4EVAL BOARD FOR AL8806 |
2,764 |
|
- |
- | Box | Not For New Designs | 1.5A | 1 Non-Isolated Output | - | Dimmable | 9V ~ 30V | Board(s) | AL8806 |
|
PAM2805EV1EVAL BOARD FOR PAM2805 |
4,060 |
|
Datasheet | - | Box | Obsolete | 750mA | 1 Non-Isolated Output | - | Dimmable | - | Board(s) | PAM2805 |
|
|
AL8400EV1EVAL BOARD FOR AL8400 |
2,026 |
|
Datasheet | - | Box | Active | 150mA | 1 Non-Isolated Output | - | - | 4V ~ 18V | Board(s) | AL8400 |
|

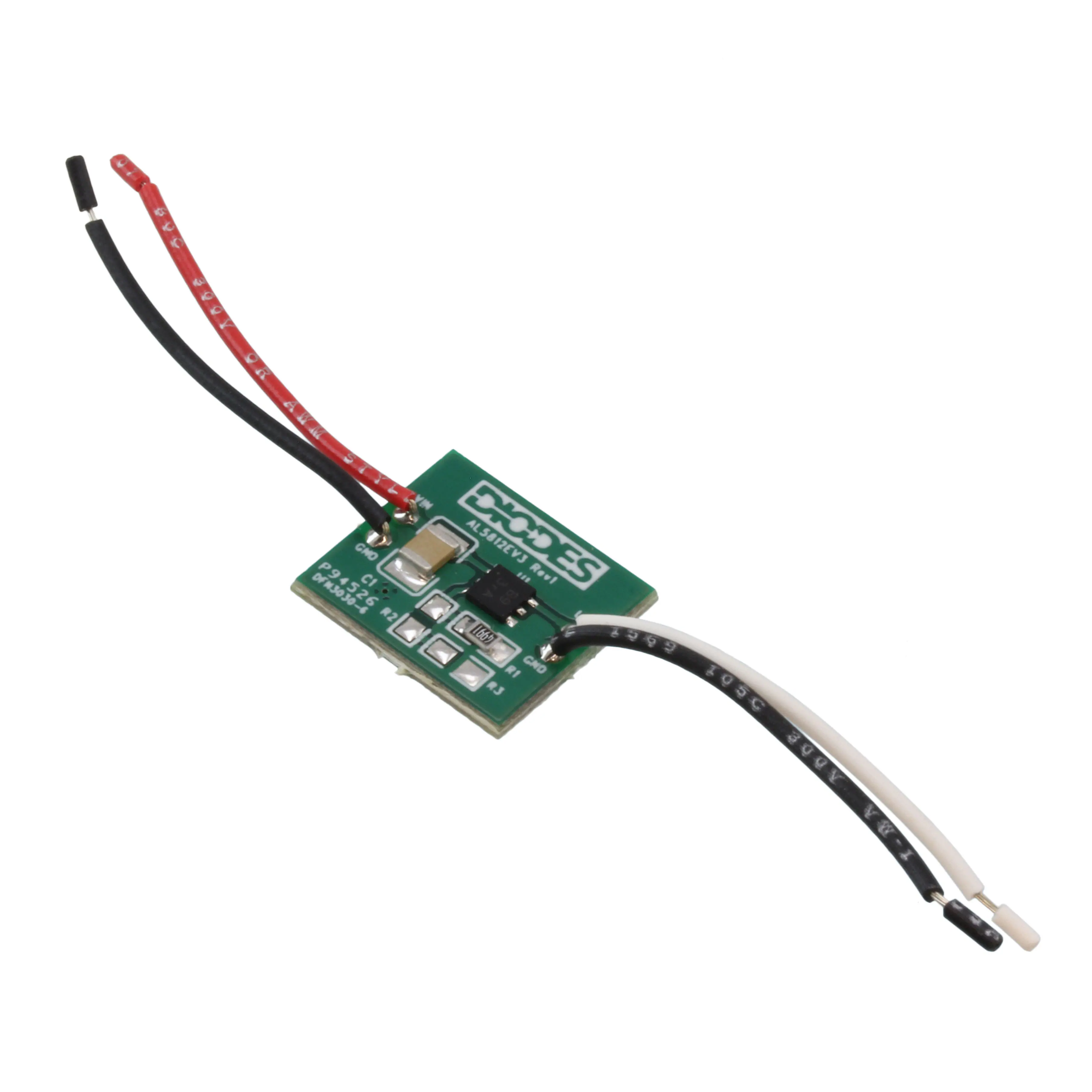

AL5812EV3EVAL BOARD FOR AL5812 |
3,197 |
|
Datasheet | - | Box | Active | 150mA | 1 Non-Isolated Output | 1V ~ 60V | - | 3.5V ~ 60V | Board(s) | AL5812 |
|

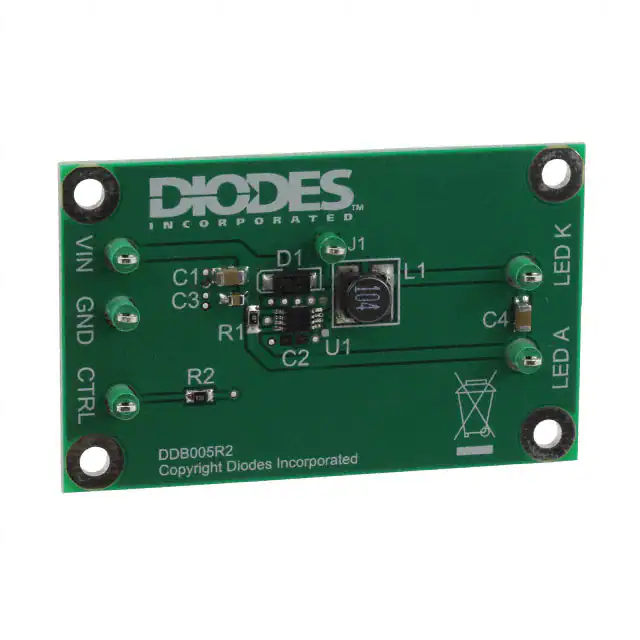

AP8800EV2EVAL BOARD FOR AP8800 |
1,557 |
|
Datasheet | - | Bulk | Active | 300mA | 1 Non-Isolated Output | - | Dimmable | 8V ~ 28V | Board(s) | AP8800 |
|
AP8801EV1EVAL BOARD FOR AP8801 |
1,193 |
|
Datasheet | - | Bulk | Active | 460mA | 1 Non-Isolated Output | - | Dimmable | 8V ~ 45V | Board(s) | AP8801 |
|

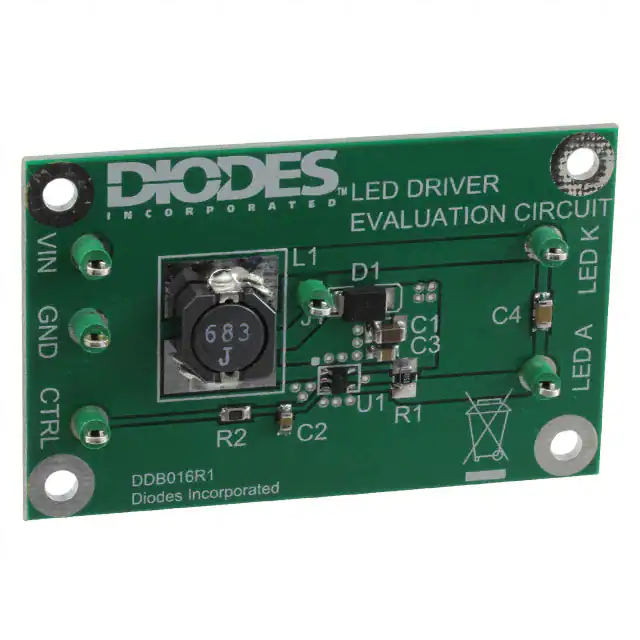

AP8803EV1EVAL BOARD FOR AP8803 |
4,295 |
|
Datasheet | - | Bulk | Active | 680mA | 1 Non-Isolated Output | - | Dimmable | 8V ~ 30V | Board(s) | AP8803 |
|
AP1695EV5EVAL BOARD FOR AP1695 |
2,685 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | Dimmable | 7V ~ 25V | Board(s) | AP1695 |
|
AP8802EV2EVAL BOARD FOR AP8802 |
2,540 |
|
Datasheet | - | Bulk | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 8V ~ 45V | Board(s) | AP8802 |
