LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AL5816QEV2EVAL BOARD FOR AL5816Q |
3,432 |
|
- |
- | Bulk | Active | 150mA | 8 Non-Isolated Outputs | - | Dimmable | 4.5V ~ 16V | Board(s) | AL5816Q |
|
|
AL8116EV1EVAL BOARD FOR AL8116 |
1,372 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | Dimmable | 10V ~ 56V | Board(s) | AL8116 |
|
|
AL8853EV1EVAL BOARD FOR AL8853 |
3,297 |
|
Datasheet | - | Box | Active | 800mA | 1 Non-Isolated Output | 60V | Dimmable | 20V ~ 36V | Board(s) | AL8853 |
|
ZXSC310EVEVAL BOARD FOR ZXSC310 |
1,127 |
|
Datasheet | - | Bulk | Obsolete | - | 1 Non-Isolated Output | - | - | 0.8V ~ 8V | Board(s) | ZXSC310 |
|
|
AL5801EV1EVAL BOARD FOR AL5801 |
1,820 |
|
Datasheet | - | Box | Active | 350mA | 1 Non-Isolated Output | - | - | 3.5V ~ 20V | Board(s) | AL5801 |
|
|
AL8805EV1EVAL BOARD FOR AL8805 |
3,856 |
|
- |
- | Box | Not For New Designs | 680mA | 1 Non-Isolated Output | - | Dimmable | 6V ~ 30V | Board(s) | AL8805 |
|
|
AL8805EV2EVAL BOARD FOR AL8805 |
4,551 |
|
- |
- | Box | Not For New Designs | 680mA | 1 Non-Isolated Output | - | - | 12VAC, 12V ~ 20V | Board(s) | AL8805 |
|
AL5809EV1-150EVAL BOARD FOR AL5809 |
4,285 |
|
Datasheet | - | Box | Active | 150mA | 1 Non-Isolated Output | - | Dimmable | 2.5V ~ 60V | Board(s) | AL5809 |
|

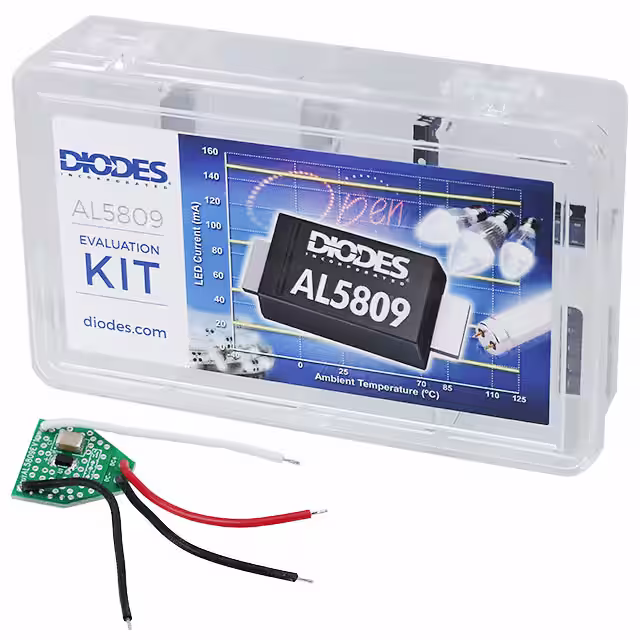

AL5809EV1-60EVAL BOARD FOR AL5809 |
4,552 |
|
Datasheet | - | Box | Active | 60mA | 1 Non-Isolated Output | - | Dimmable | 2.5V ~ 60V | Board(s) | AL5809 |
|
|
AL8806EV6EVAL BOARD FOR AL8806 |
2,034 |
|
- |
- | Box | Not For New Designs | 1.1A | 1 Non-Isolated Output | - | - | 9V ~ 30V | Board(s) | AL8806 |
